Alfa Romeo TZ Race Parts

Grid Size
x3
x4

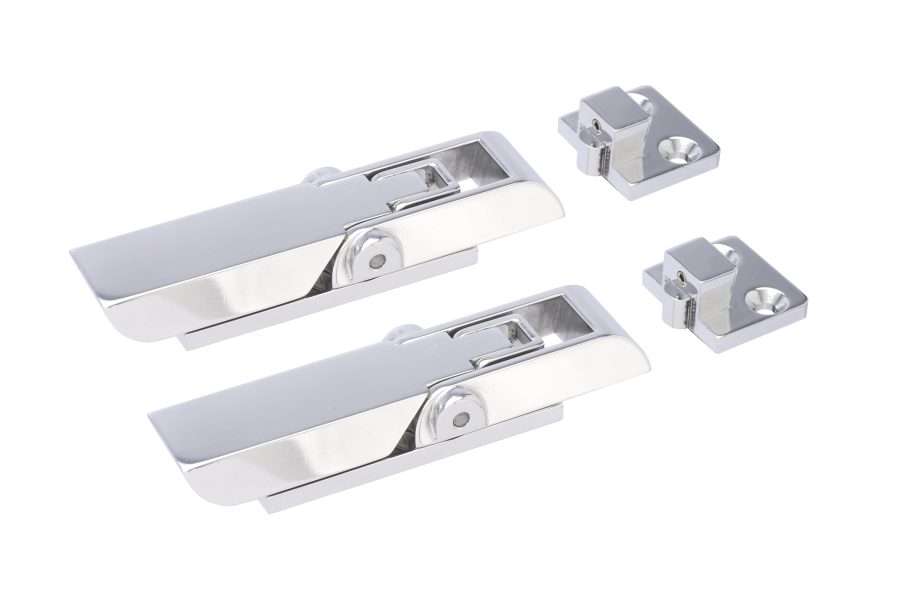

TZ Bonnet Lock Pair

£1150.00 GBP (ex vat)

TZ002

We 3D scanned an original bonnet lock to recreate these beautiful new catches. We have CNC machined them from billet aircraft grade aluminium and polished them to a mirror finish to give the wonderful appearance and tactile feel. Many TZs no longer have their original bonnet locks as over time they lost their tension so were not able to stay closed, many cars had leather straps fitted instead. To avoid this being an issue with ours, we have integrated a hidden grub screw to allow additional tension to be applied as may be required on individual cars.

Alfaholics TZ Aluminium Radiator

£895.00 GBP (ex vat)

RCE1005/2

Manufactured exclusively for Alfaholics to the highest quality. This is an exact replica of an original TZ radiator but with a huge weight saving and greatly improved cooling. This radiator is truly a piece of art! Fitted with high performance multi row core.

TZ Aluminium Oil Cooler

£325.00 GBP (ex vat)

RCE1005/6

Alfaholics production, beautiful quality aluminium oil cooler build to the same dimensions to the original Autodelta part. We have made this cooler with -10JIC pipe fittings to enable easy installation of modern cooler pipes.

Alfaholics TZ Stainless Steel Manifolds

£345.00 GBP (ex vat)

TZ2

Superb quality manifolds manufactured from marine 304 grade stainless steel. To work with our stainless steel complete front and rear sections.

Alfaholics TZ Stainless Steel Exhaust

£520.00 GBP (ex vat)

TZ/1

Superb quality system manufactured from marine 304 grade stainless steel, complete front and rear sections. To work with either standard TZ manifolds or our new production of stainless steel manifolds.

Alfaholics Rear Propshaft – TZ

£595.00 GBP (ex vat)

GRB102/4

Exclusively manufactured for Alfaholics to exacting tolerances. Most rear propshafts have had many UJ changes in their life and as a result can often have damaged UJ housings, this means that even with new UJs vibrations can still occur due to end float in the UJ housings which is beyond shimming out. The sliding joint is also another area for wear on an original unit that of course cannot ever be repaired. As a result of these 2 major factors we no longer use rebuilt rear propshafts in our workshop, fitting only our brand new unit for 100% perfect results at virtually no extra cost to the customer. We manufacture these units from race quality thin wall 2” tube, not only does this mean that the tube is stiffer which results in far smoother running at high speeds, but it is also much lighter than an original unit. We have also increased the size of the UJs on each end which makes them much less prone to wear and much more able to handle the load from engines with increased performance. Each prop is dynamically balanced to 8,000rpm meaning that this item is perfect for use on both road and competition cars.

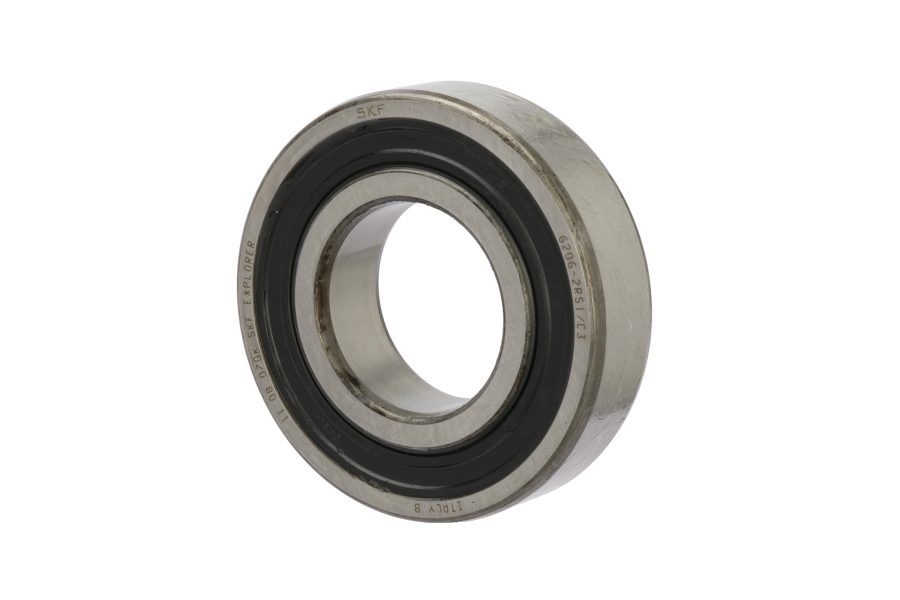

TZ Diff Output Shaft Bearing

£14.95 GBP (ex vat)

GRB300

Premium quality TZ differential output shaft bearing - 2 needed per car

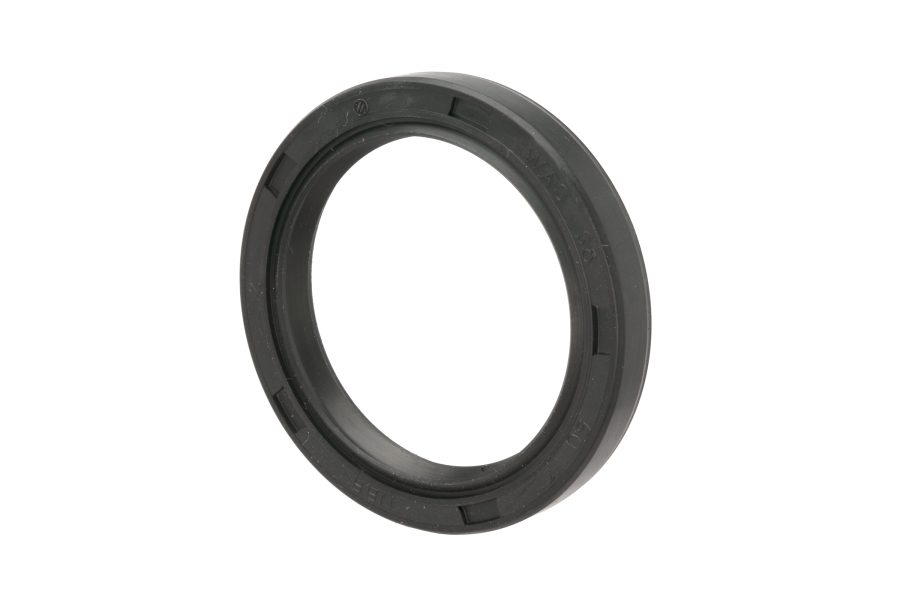

TZ Diff Output Shaft Seal

£3.25 GBP (ex vat)

GRB301

Premium oil seal for TZ diff - 2 needed per car

Pinion Bearing – Front 1300/1750

£69.95 GBP (ex vat)

GRB203

For 1300,1600 & 1750 non- LSD axles - GRB 203 (Premium brand pinion bearing)

Pinion Bearing – Rear 1300/1750

£69.95 GBP (ex vat)

GRB205

For 1300,1600 & 1750 non LSD axles - GRB 205 (Premium Brand rear pinion bearing)

Differential pinion oil seal 1300-1750

£3.75 GBP (ex vat)

GRB201

For 1300,1600 & 1750 non- LSD axles

Diff Case Bearing 1300-1750

£55.00 GBP (ex vat)

GRB207

For 1300,1600 & 1750 non LSD axles - GRB 207 (Premium brand diff case bearing)

Premium Wheel Bearing Kit

£120.00 GBP (ex vat)

TZ001

Premium branded wheel bearing kit to suit TZ.

TZ Braided Brake Line Set

£99.50 GBP (ex vat)

BRK039/2

Alfaholics production, set of 4 premium quality braided brake lines.

TZ Rear Caliper Housing & Piston Assembly

£199.00 GBP (ex vat)

RCETZ2

High quality direct replacement piston assembly for TZ rear calipers. CNC machined billet aluminium housing complete with piston and seals.

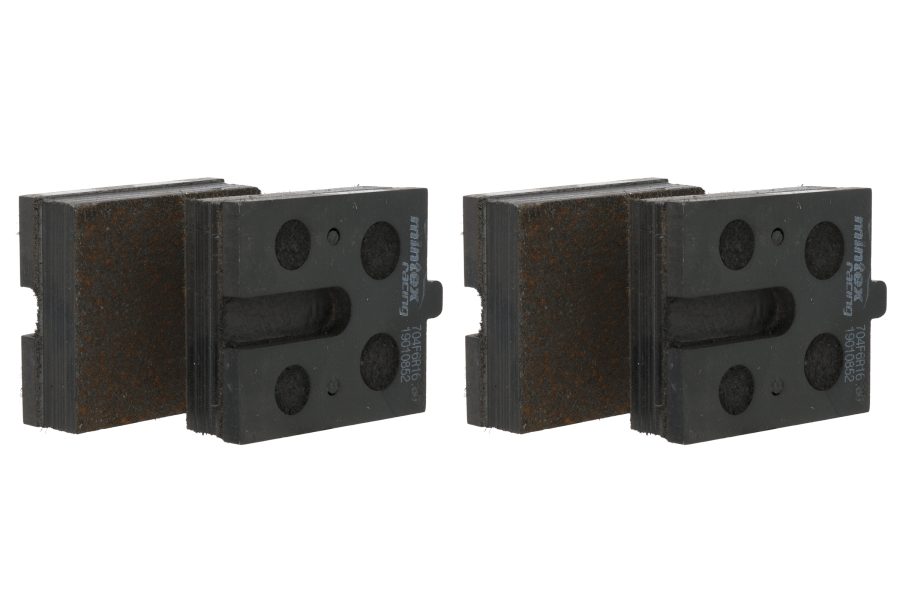

TZ Competition Brake Pads

£190.00 GBP (ex vat)

BRK072

Competition brake pads for TZ. Available in fast road/track day/rally or full race compound. Please specify when ordering.

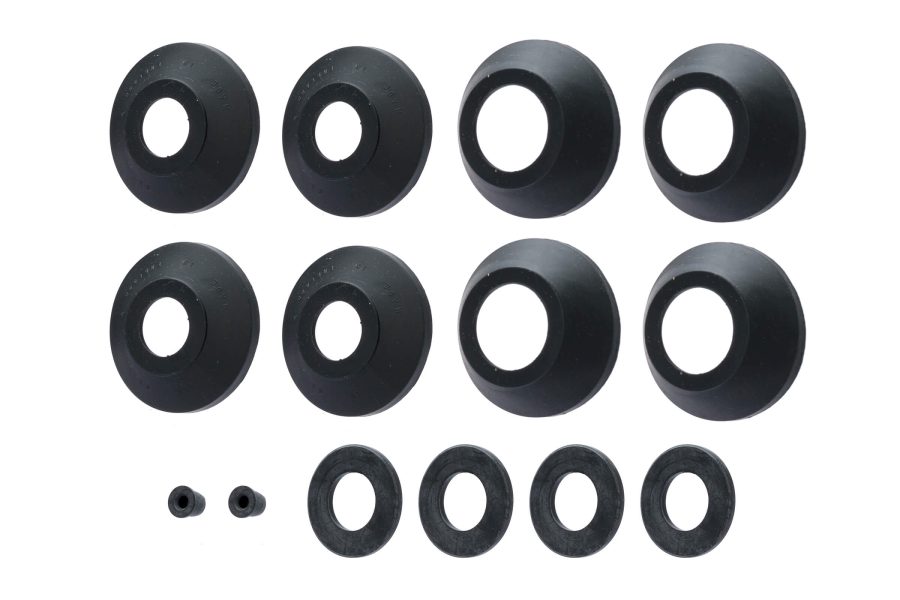

TZ Brake Caliper Seal Kit

£45.00 - £75.00 GBP (ex vat)

BRK07TZ

High quality Alfaholics production. Complete set of hydraulic seals and dust boots for the 2 variations of piston bodies

TZ2 Magnesium Cam Cover

£795.00 GBP (ex vat)

RCE4020/2

Premium quality Alfaholics production. We have made this cam cover due to other productions being merely magnesium copies of standard aluminium cam covers, thus not having the correct shape detail. To manufacture this cam cover, we have copied a genuine 1st series GTA/TZ2 cam cover from one of our Autodelta cars to ensure perfect accuracy. Beautifully sand cast with rounded (rather than very sharp) script to look authentic and unidentifiable from original.

TZ Rubber Engine Mount

£40.00 GBP (ex vat)

ENG3001/2

New engine mounting rubber for TZ

Giulietta/TZ Heater Valve

£69.95 GBP (ex vat)

COO130

Correct screw type heater valve for fitment under bonnet

Alfaholics Magnesium 15″ TZ Wheel

£895.00 GBP (ex vat)

WHL012

Exclusive to Alfaholics and manufactured to the very highest standards, this wheel is an exact copy of the original 1st series Campagnolo wheel. Particular attention was paid to the accuracy of the vent hole profile - the main aesthetic feature of the wheel. It is the design of the vent hole which is incorrect on all other current reproductions of the 15" TZ wheel (including Tecnomagnesio). The wheel is available in the original 4.5" width, as well as wider 5" and 5.5" versions - all of which are homologated sizes for race TZs.

Fuse Box – 8 Fuses

£165.00 GBP (ex vat)

ELE1010/1

8 Fuse, fuse box to fit TZ, GTA and Early Saloons where the fuse box is located in the engine bay.
