GTA-R

025

240bhp @ 7,000rpm

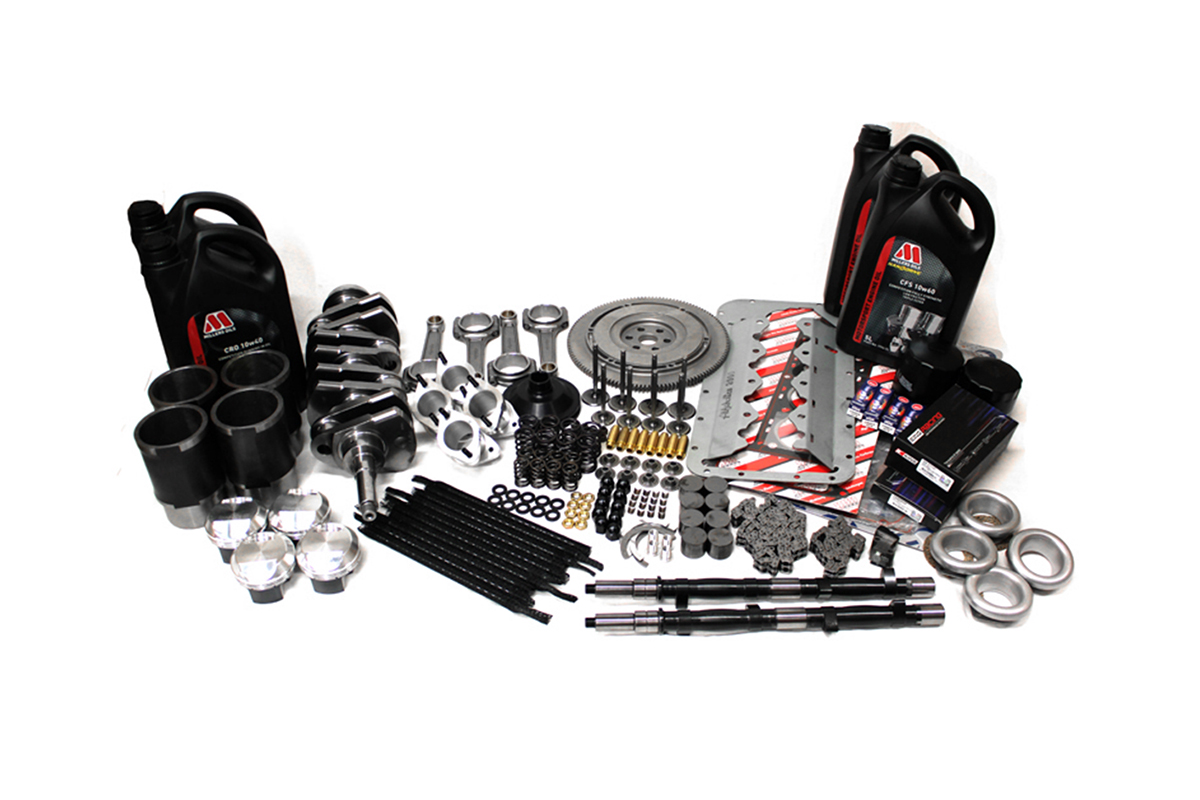

Alfa Romeo Twin Spark engine, aluminium block built with bespoke designed 94mm long stroke crankshaft, steel connecting rods, forged oversize pistons and race bearings. CNC ported aluminium cylinder head with race quality valve gear, DLC cam followers and crackle black finished billet aluminium cam cover.

Motec M1

Motec’s latest M1 ECU management system with 1000Hz processor speed, fully sequential fuel and ignition firing, wideband lambda control, 200Hz knock control and 120Mb datalogging.

Cooling

Bespoke aluminium fabricated cooling system with taper flow top tanks, motorsport grade water and oil cooler cores incorporating ECU controlled cooling fans.

Completed - GTA-R 025

Completed - GTA-R 025

Completed - GTA-R 025

Gearbox

GTA close ratio gearbox with drilled and scalloped gears, rifle drilled layshaft, billet selector rods and forks, billet quick shift kit and redesigned synchro profiles for improved gear shift feel and speed. Superfinished internals to minimise friction.

gearbox_rebuild_service_01

gearbox_rebuild_service_03

axel

Axle

Titanium axle tubes with plate type limited slip differential, improved pinion bearing design, super finished final drive gear set, rifle drilled billet halfshafts and high capacity aluminium oil sump.

alfaholics-competition-axle-units_07

alfaholics-competition-axle-units_03

Completed - GTA-R 025

GTA-R 290 Ultraleggera Titanium Suspension

The ultimate evolution of our GTA-R suspension design achieving an impressive 34kg weight saving over the original setup. Fully optimised geometry together with minimal unsprung weight to deliver the ultimate driving experience whilst retaining the legendary 105 series character and feel.

Lightweight spring conversion with adjustable ride height

2 1/4″ spring conversion with adjustable platforms front and rear saves a huge 12kg whilst allowing fine ride height adjustment for the perfect chassis setup.

full-race-2-14-small-spring-kit-2048x1365

lower_wishbone_01-2048x1365

Titanium front wishbones

Lower wishbones CNC machined from billet titanium featuring spherical bearings for superior accuracy of geometry under high cornering loadings. Upper wishbones fabricated from tubular titanium resulting in a further 6kg weight reduction.

Titanium uprights and hubs

CNC machined billet uprights with modified pick up positions to optimise dynamic geometry and uprated spindle design to eradicate pad “knock back”. Together with titanium wheel hubs and titanium wheel studs and nuts, a considerable saving of 3kg of unsprung and rotational weight.

titanium_wheel_hub_04

t-bar_01

Aluminium T-bar

Aluminium T-bar features redesigned chassis mount bushes and spherical bearing axle location for improved traction and further weight saving.

Double adjustable aluminium gas dampers

Developed by Alfaholics at the Nurburgring, these aluminium bodied double adjustable dampers provide exceptional body control and ride refinement with separate bump and rebound adjustment for the perfect setup on both road and track.

trailing_arm_cropped_02

Completed - GTA-R 025

6-pot-superleggera-brake-kit

Brakes

Billet aerospace grade aluminium calipers. 6 piston front with 300mm vented rotors, 2 piston rear with 267mm solid rotors.

Aluminium dual circuit non-assisted pedal box for maximum pedal feel and adjustable bias front to rear.

Completed - GTA-R 025

Interior

Bespoke leather interior hand crafted to suit owner’s desires. Fully insulated using Dynamat for optimum heat protection and noise damping.

Leather trimmed ‘Sport Road’ seats with custom weave

Classic design seats with outstanding comfort and support, trimmed in the finest quality Italian leather and woven to evoke the timeless style of the 1300 GTA “basket weave”.

Autodelta roll hoop

Lightweight roll hoop for increased rigidity and safety whilst allowing easy access to the rear seats. Trimmed in leather and “basketball” stitched by hand.

Air-conditioning

Highly efficient modern air-conditioning system integrated neatly behind the dashboard delivering icy cold air in even the hottest climates.

Completed - GTA-R 025

Completed - GTA-R 025

airvent_large_02

Dashboard

Finished in high quality crackle black and Alcantara for unparalleled aesthetics and anti glare properties. Elegant aluminium air vents bespoke designed to complement the original Alfa Romeo instruments.

Carpets

Tailored in the finest English Wilton wool and bound in leather for the ultimate in luxury.

lhd_floor_pedal_set_01

Controls

Momo Prototipo steering wheel, as fitted in period to GTA Corsas by Autodelta, with Rhodium plated GTA-R build number.

Lightweight adjustable pedals machined from billet aerospace aluminium.

Completed - GTA-R 025

Completed - GTA-R 025

gta_r_025_wheel_and_arch_01

Exterior

Wheels and tyres

Alfaholics designed lightweight alloy 7×15″ wheels finished in GTA-R smoke grey, and fitted with Michelin 195/60 tyres and retained with titanium wheel nuts and studs.

Glass

Lightweight heated windscreen, lightweight 4mm side glass and polycarbonate rear screen save an impressive 11kg.

Luggage

Tailored leather and alcantara luggage set.
