GTA-R 290 Suspension Package

£9,295.00 GBP (ex vat)

GTAR/PACK/SUS290

Add to Quote

Upgrade Options

Upgrade To Titanium Tubular Top Wishbones & GTA-R Upright Kit
+£5,340.00 GBP (ex vat)

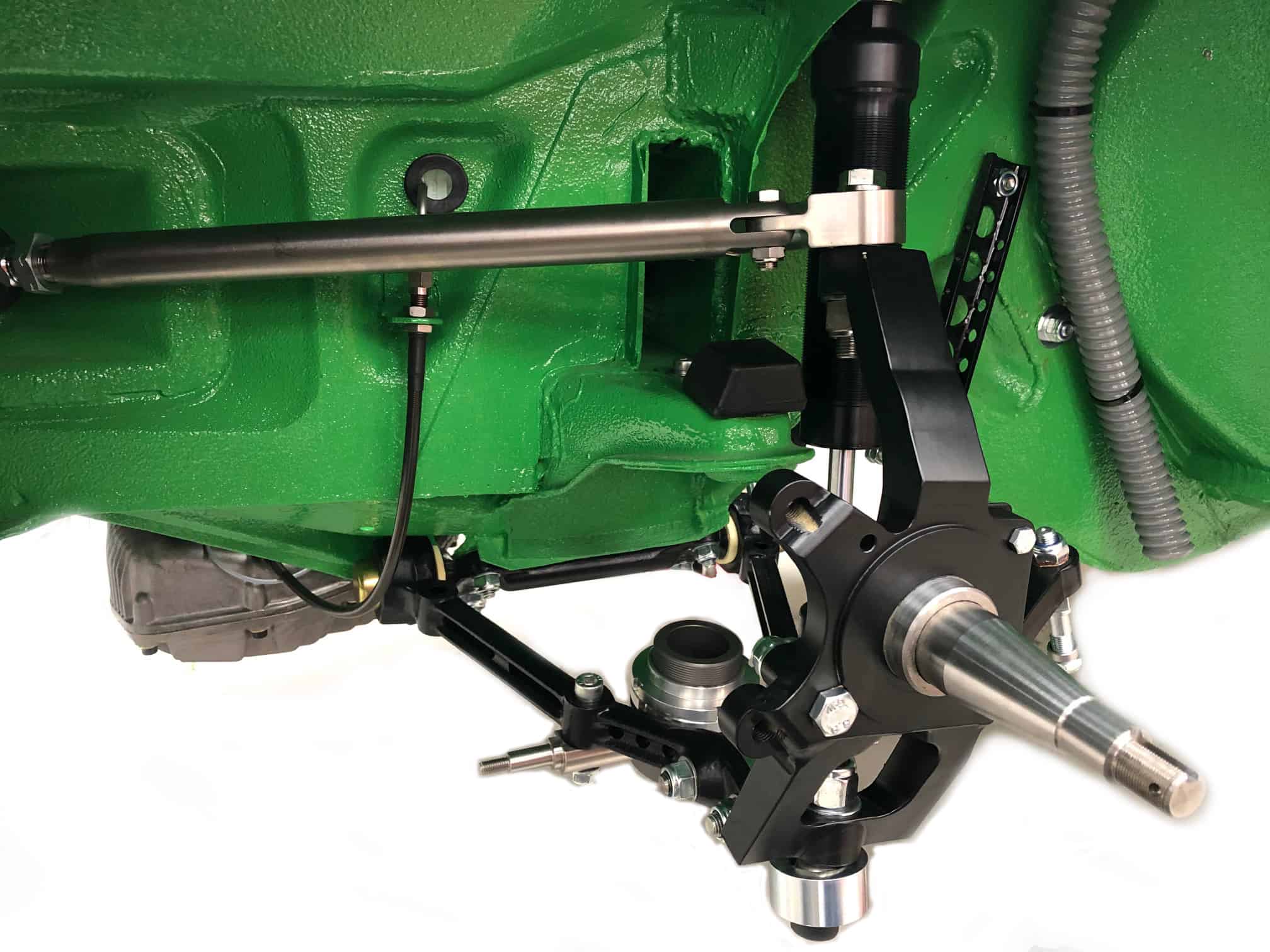

Top specification GTA-R 290 suspension system as used on our GTA-R 290 builds. This integrates our best suspension systems as a precisely matched, very lightweight & high mechanical specification package, for all your ultimate fast road/canyon driving & track uses.

This kit comprises the following components:-

Alfaholics Geometry Kit. Correcting roll centre height, roll-camber characteristics, improved castor angle and bumpsteer free steering.
Alfaholics fully adjustable 2 1/4″ small spring kit. For further weight saving & to ensure optimum geometry setup adjustments
Alfaholics double adjustable race dampers with refined valving range and the ability to adjust both the compression and rebound valving separately.
Alfaholics titanium front shock mounting shock pins.
Alfaholics CNC machined billet aluminium rear shock turrets to save weight and set rear shock height to match the lowered ride height.
Alfaholics premium race spec front anti-roll bar with durable mounting bushes & rose jointed drop links
Alfaholics military spec 7000-grade billet aluminium quick steering arms increasing the ratio of your steering to GTA specification.
Alfaholics aluminium uniball T-Bar, providing huge weight reduction and for improved axle articulation and reduced rear roll stiffness resulting in improved rear grip & traction.
Alfaholics GTA-R extreme lightweight trailing arms. A weight saving of over 2kg (4.4lb)
High quality Alfaholics production, CNC machined titanium suspension bolt kit.
Full set of 16 titanium wheel studs and 16 open end titanium race wheel nuts. Over 50% weight saving over the equivalent steel parts, which equals 1.09kg (2.4lb) reduction of unsprung and rotational weight.
Now including our new production ultraleggera roll bar.

This kit represents a weight saving of over 24kg (46.3lbs) over the equivalent original Alfa parts. We will also supply a full installation guide and aftersales advice to get you racing towards the track.
