Cooling Parts for 105 Series Alfa Romeo

We now offer this complete package containing all the hoses you’ll need for early 105 cars.

The pros of using silicone hoses include a greater operating temperature range, more flexibility, increased resilience and a longer lifespan.

It is designed to fit cars with twin carburettor inlet manifolds with the large screw-in thermostat (not single carburettor 1600 / 1300Ti) and for cars with early radiators fitted with 4 legs and early heater boxes (i.e. Sprint GTV, early GT Junior, Duetto, early Giulia Super, 1300 / 1600 GTA etc).

Due to cars having had engine transplants over the years, please check the compatibility of components before ordering). If your car has had an engine transplant, please let us know the details and we can customise this kit to be compatible.

We now offer this complete package containing all the hoses you’ll need for late 105 cars.

The pros of using silicone hoses include a greater operating temperature range, more flexibility, increased resilience and a longer lifespan.

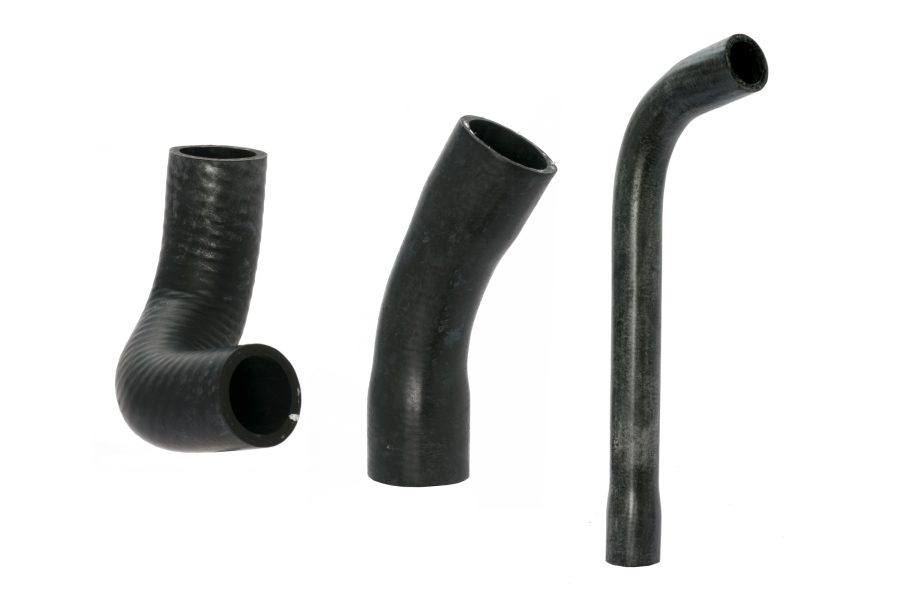

It is designed to fit later model cars with engines with late inlet manifolds which have a drop in thermostat housing, bypass hose, single-piece bottom hose, and late heater hose. It will not fit the 1750 model with its special 3 piece bottom hose arrangement and 2 exit water pump.

If you want to fit this kit to a 1750 then you need to change the water pump to a 2000 version 3 inlet part.

CNC machined aluminium housing with electric thermostatic switch, neat and simple fan controller solution.

Splice into the bottom hose of the radiator to switch a standard 4-pin relay to switch electric cooling fan on/off.

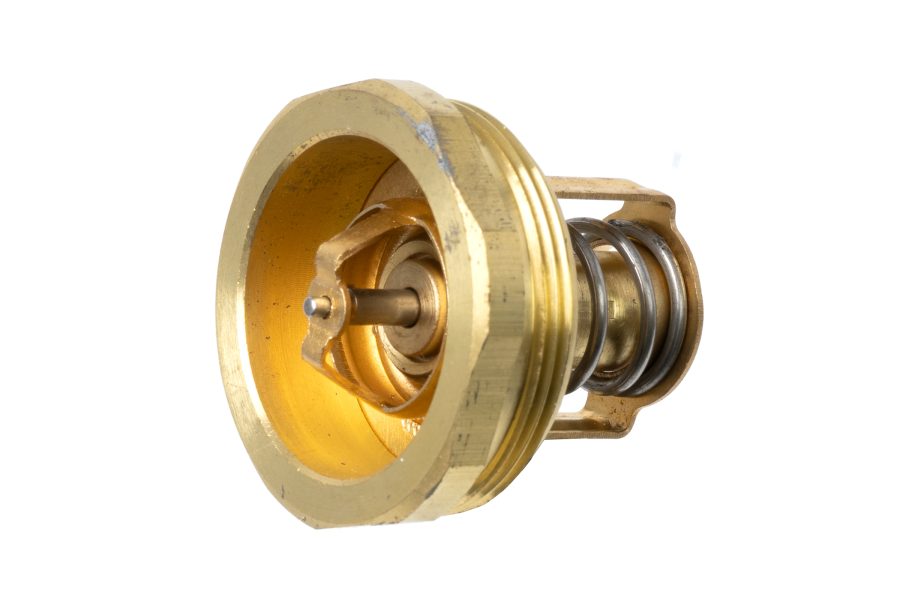

To fit 105 series engines with screw in thermostat.

For cars with screw in thermostat.

To fit all 105 series with drop in thermostat & Twin Spark.

Drop in thermostat.

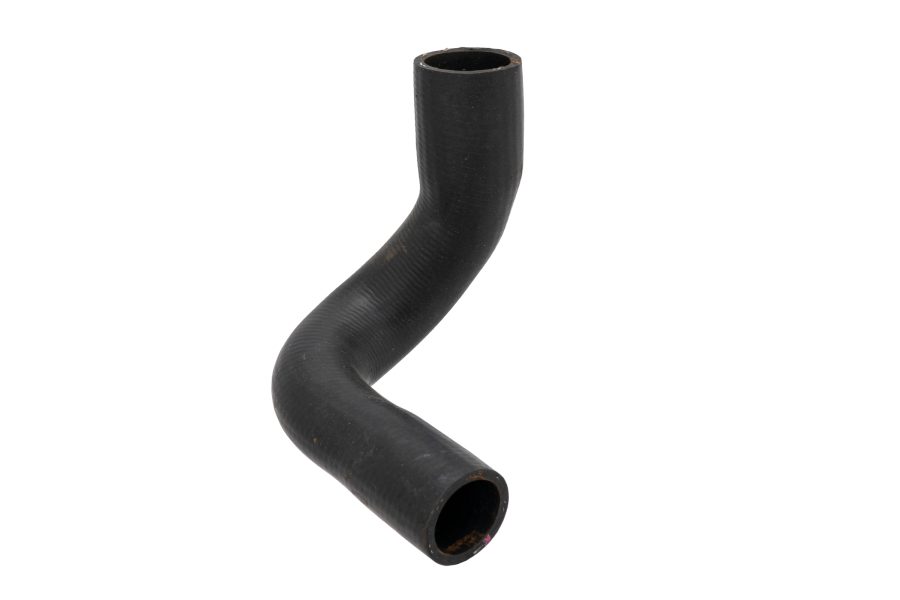

To fit step-front GT, Duetto, Junior Z & early Giulia saloon.

Early bottom hose.

To fit non step-front GT, 1750 Spider Veloce, S2 Spider & late Giulia saloon.

Late bottom hose.

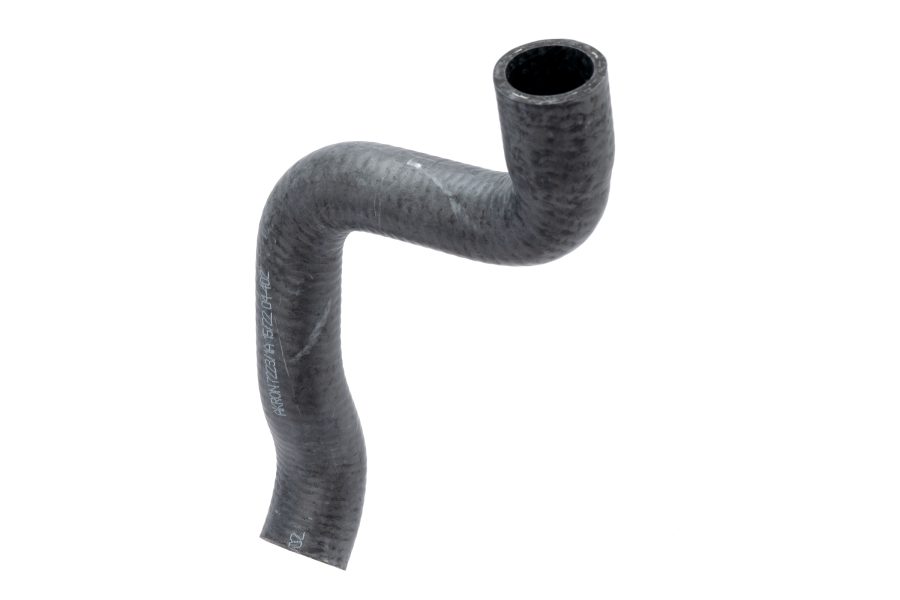

To fit 105 series with pipe from water pump to underside of thermostat housing.

Bypass hose.

To fit cars with early heaters – pipe runs through carburettor side of firewall.

Top heater hose for cars with early heaters with 4 air pipe outlets.

To fit cars with late heater – pipe passes through exhaust side of firewall.

Top heater hose for cars with later heater with 2 air pipe outlets.

Suitable for heater exit on water pump and for race header tank systems. sold in a 1.2 metre length to suit early or late cars.

Straight rubber heater hose sold in a 1.2 metre length to suit early or late cars.

13mm hose joiner for straight silicone or rubber heater hose.

Early heater valve elbow used as a connection from the valve to the matrix. to suit all early cars with a 4 outlet heater box.

Heater hose T piece 13mm.

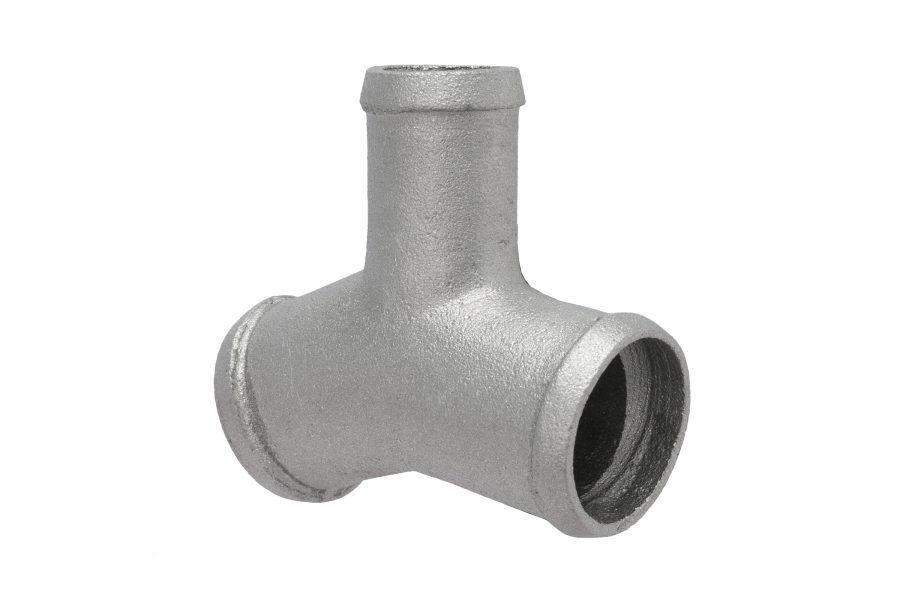

Alloy T-Piece for the bottom radiator hoses. Fitted on all 1750 engines 1968 to 1972.

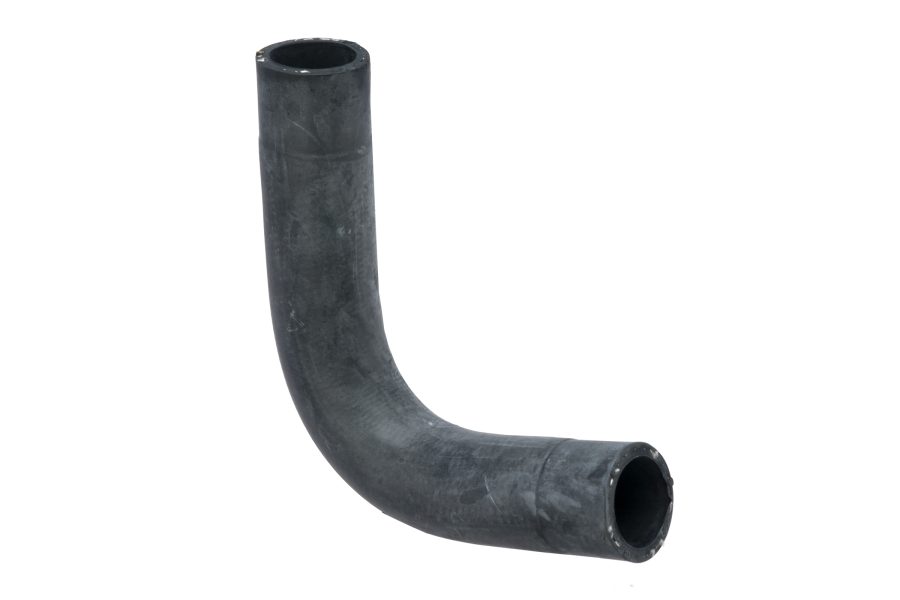

Replacement top radiator hose to fit fuel-injected.

S3 Spiders (US and European Bosch injection).

For K-Jetronic Spiders – typically US market cars (1986-1989)

Bosch Montronic Injection Spider top hose (’89-’93).

Injection Spider bottom hose (’89-’93).

Bottom hose for injection Spiders with air con.

Radiator bleed screw.

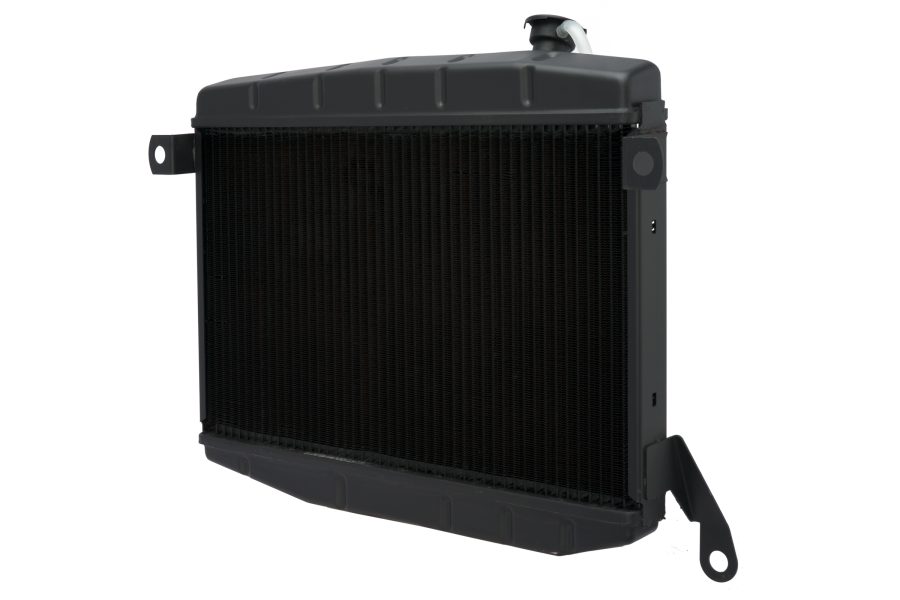

Reproduction radiator to suit Step front GT & early Giulias.

Does not fit Roundtail Spiders.

Late GT / Saloon & Spider radiators.

Reproduction radiator to suit S4 Spiders from 1990-1993.

Radiator fan switch for to suit S4 Spider 1990-1993 and Montreals.

The switch screws into the radiator an also be fitted in the top of the head at the back to run an electric fan in earlier carburettor engines.

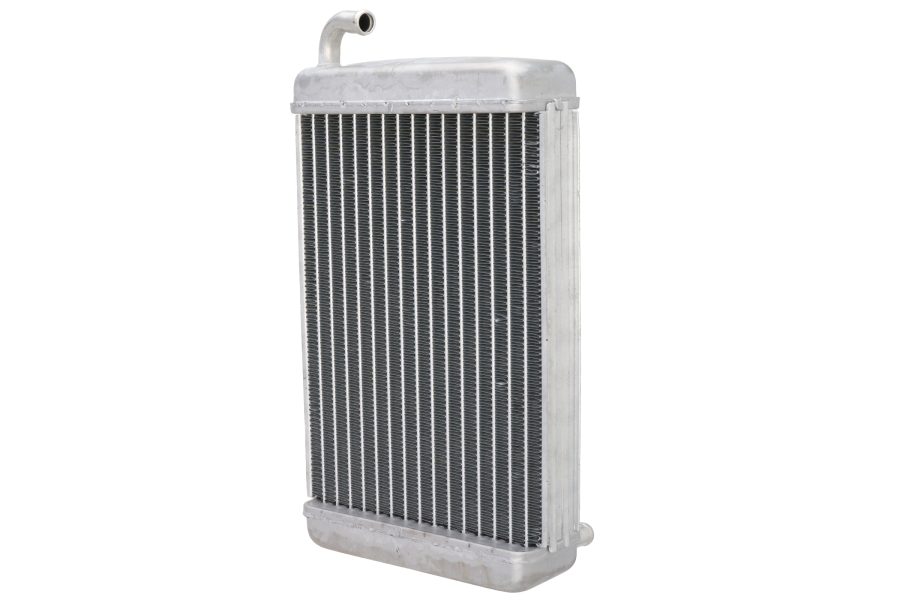

Heater core.

All S1 105/115 cars.

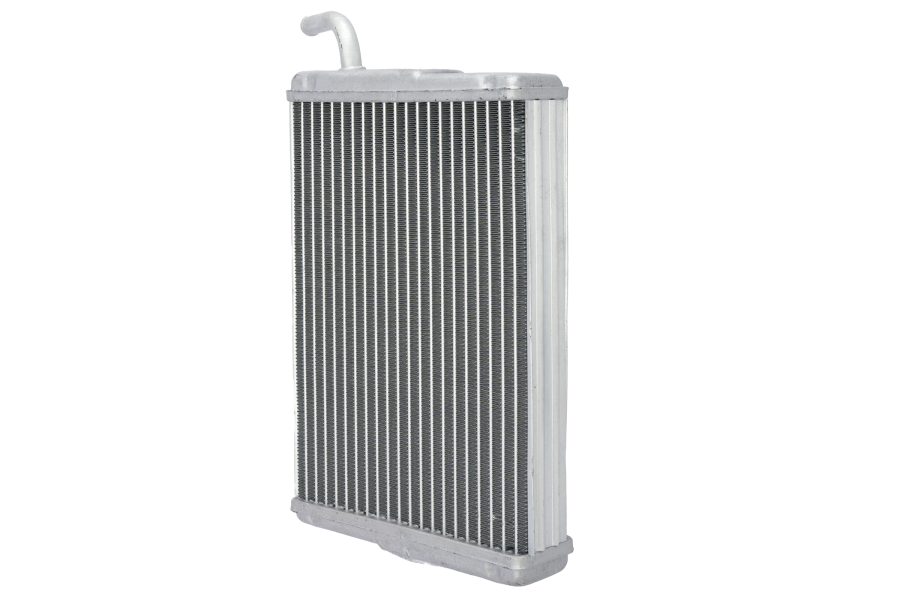

S2 heater core to suit all later style heaters.

Also fits Montreals that weren’t fitted with Aircon from new.

For all 4 mounting legs of early radiators and top mountings of late radiators.

Mounting for the bottom of a late type radiator into the cross member.

The lower mount for S4 spider (1990-1993) radiators.

Seal set for radiator shroud on all non step front GT, Spider & Saloon using late radiators.

Radiator expansion tank (105.48.31.050.02) for GTV – Spider and Saloon from 1968.

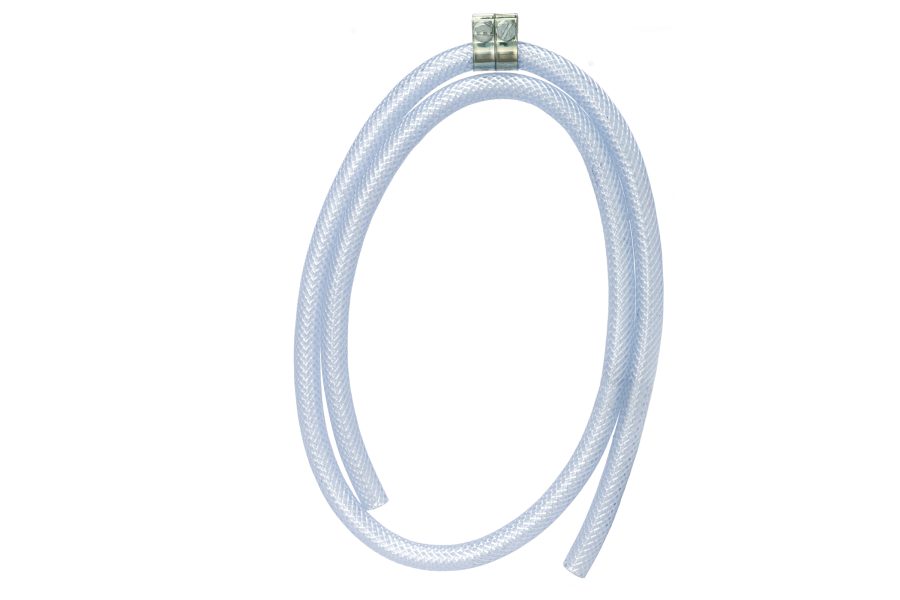

Radiator expansion tank overflow hose to suit all 105 series cars.

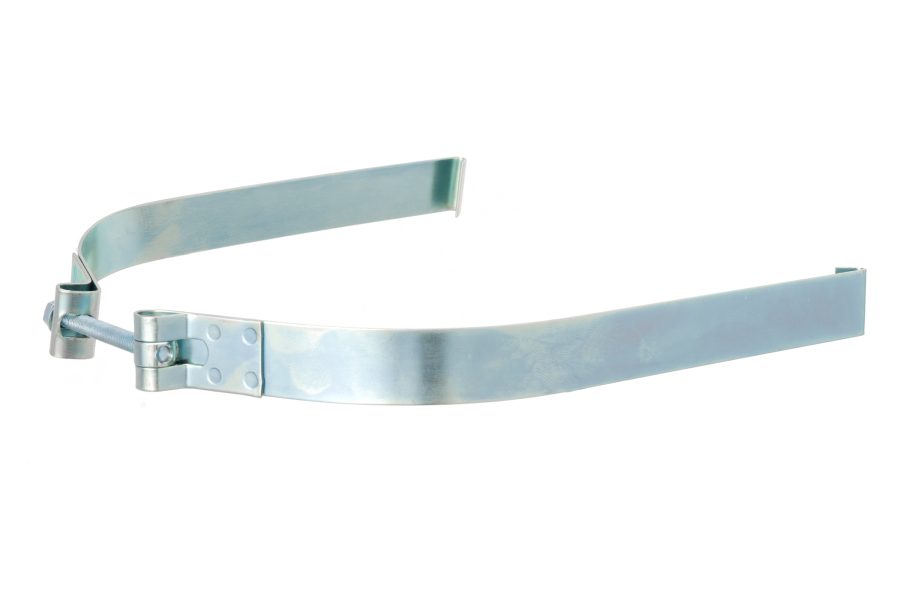

Metal bracket to hold the radiator expansion tank to the inner wing – for LHD 105 Series.

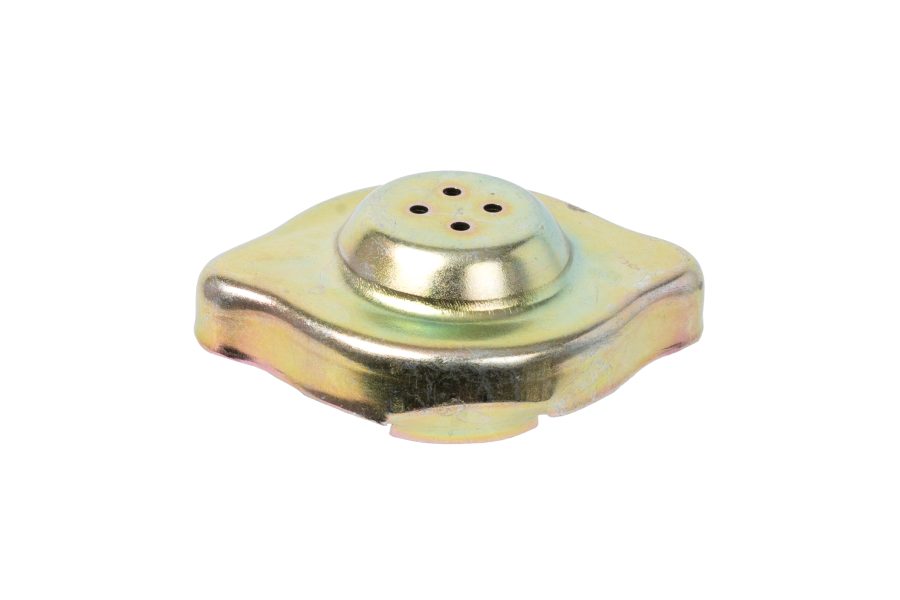

Radiator expansion tank cap.

Radiator expansion tank to suit S4 Spiders (1990-1993).

Radiator expansion tank cap to suit late S3 and S4 Spider, for cars with a sealed cooling system.

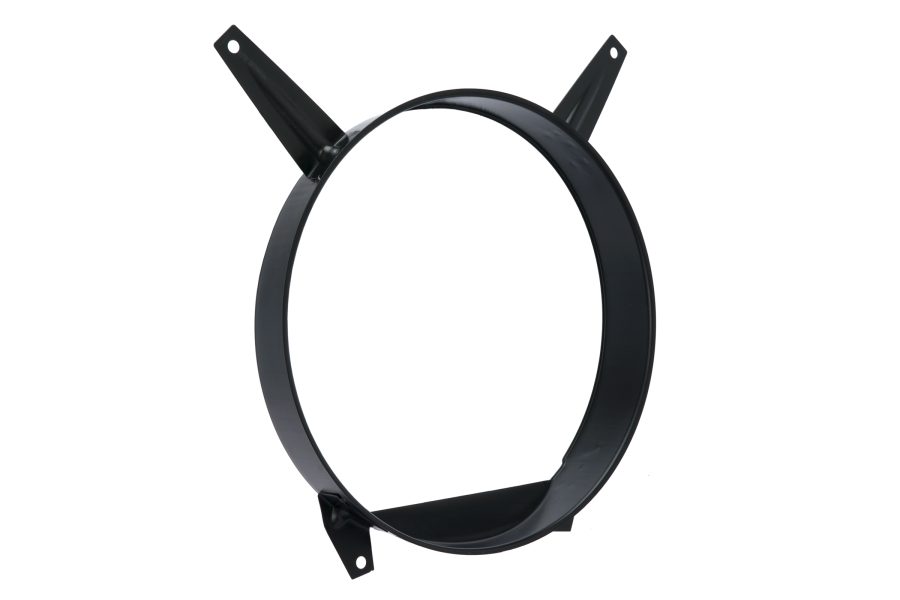

Metal radiator fan cowl to fit early 105 Stepfront Coupes, Saloons & 1600 Duetto Spiders.

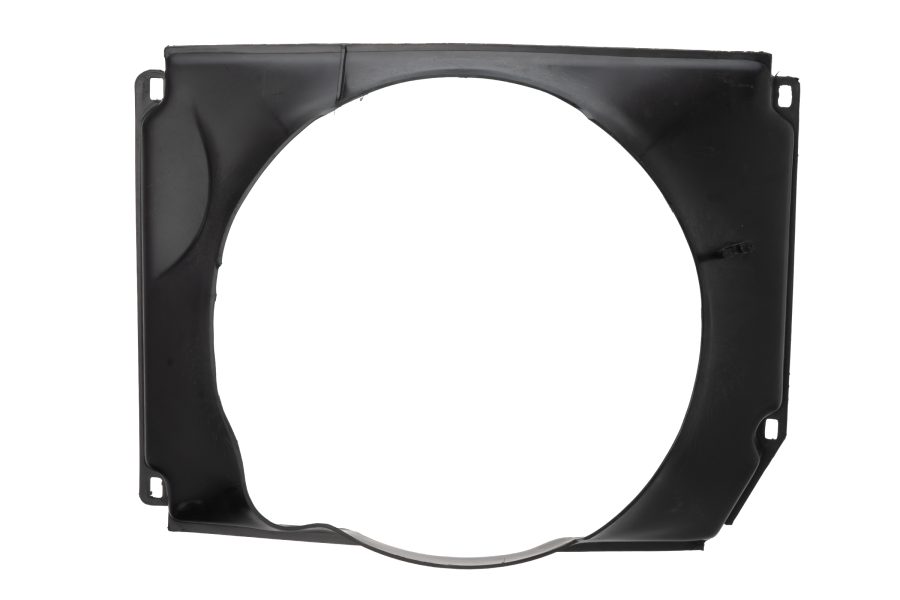

Plastic version for late radiators – for all radiators with filler neck on top of radiator. Will not fit Step front/Duetto/Early Giulia

To suit late S3 & S4 Spiders with electric cooling fans.

Smaller blade size fan.

Larger fan for 2000 fan.

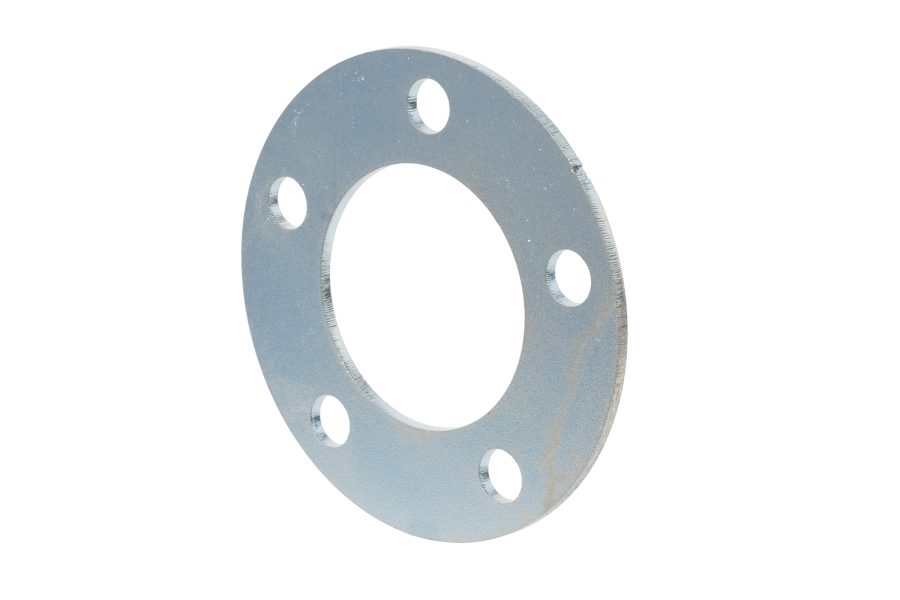

Reproduction zinc plated radiator fan retaining washer to suit all 105 series cars.

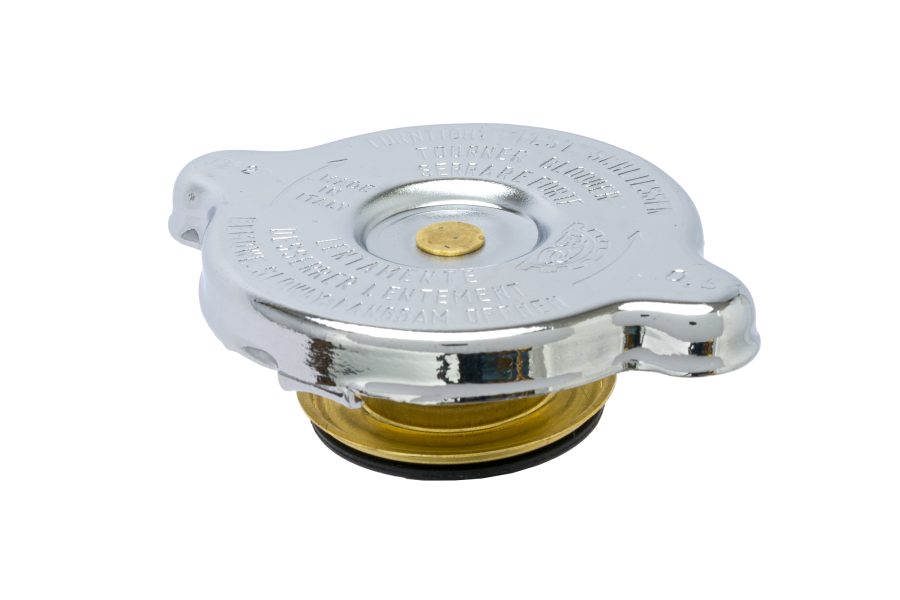

Chromed square style radiator cap to suit 1750 cars from 1968 onwards and all cars from 1970 onwards. Pressure rated to 0.7 bar – 10 psi.

A faulty radiator cap can cause your car to boil-over at a lower temperature. Test or replace the coolant cap when servicing the cooling system.

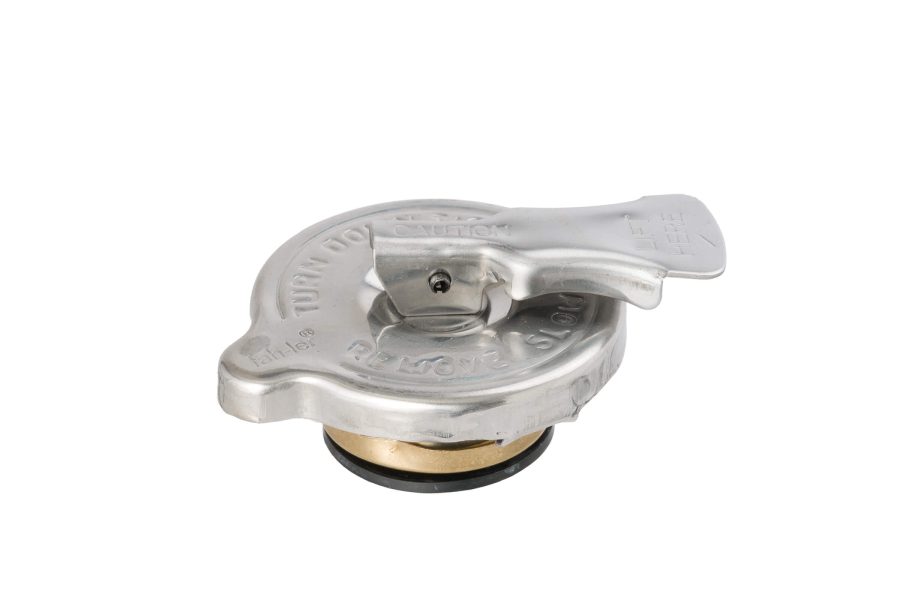

• The Lev-R-Vent™ features a patented lever release to safely release pressure for quicker cooling.
• Meets Original Equipment specifications.
• Made from premium materials.
• Designed to function on open cooling systems and overflow reservoir type systems.

Alfaholics production of the late style radiator cap.

Early style radiator sticker.

Bleed screw for the inlet manifold.

Often missing or damaged.

Water temperature sender.

Fits in inlet manifold, same for all cars-  M16x1.5 thread.

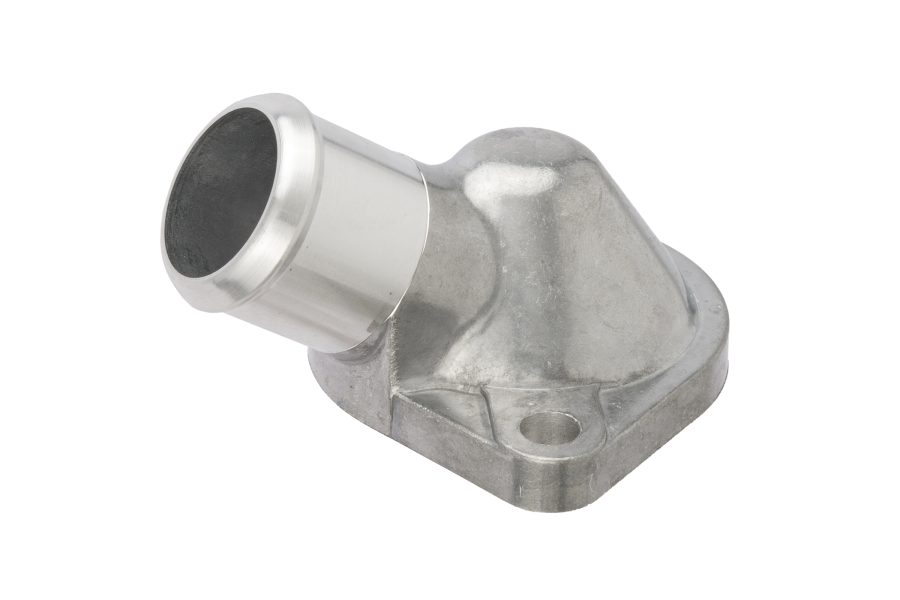

Top housing for drop in thermostat cars – All 1750, 2000 and late 1600/1300 models. This is compatible with our drop in thermostats in the related products.

As per the above thermostat, but by running a 79 degree thermostat rather than the standard version we experienced a 3BHP increase in back to back tests on the rolling road.

Reproduction themostat mounted in housing to suit all S3 Spiders with carburettors.

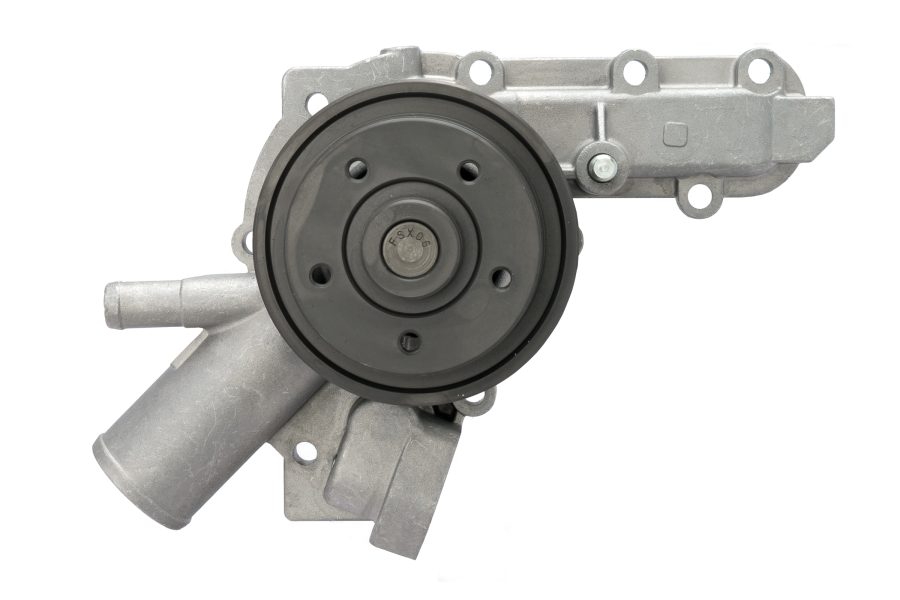

Water pump for 2 exit Dynamo version with smaller puller diameter.

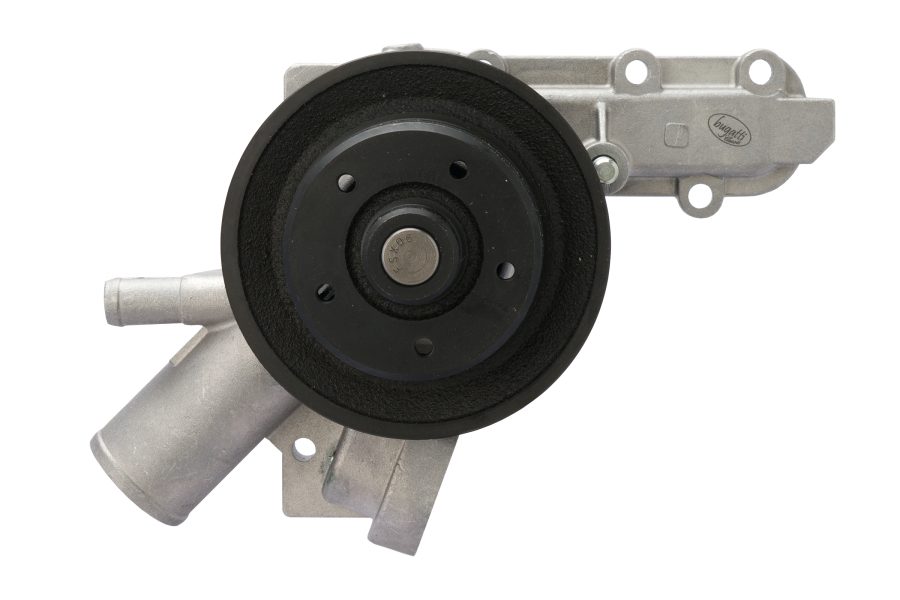

Water pump – 2-exit alternator version – larger pulley (for 1750s with 3 piece bottom hose system).

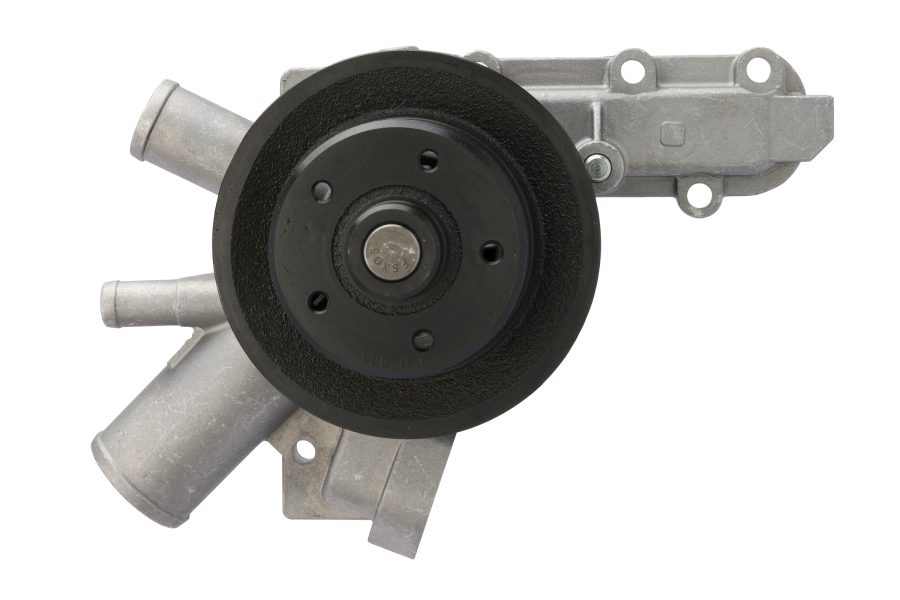

Water pump – 3-exit – mechanical rev counter version – for all carburettor cars after 1971 with bypass hose to inlet manifold. 1600 GT Junior, 2000 GTV, 2000 Spider etc.

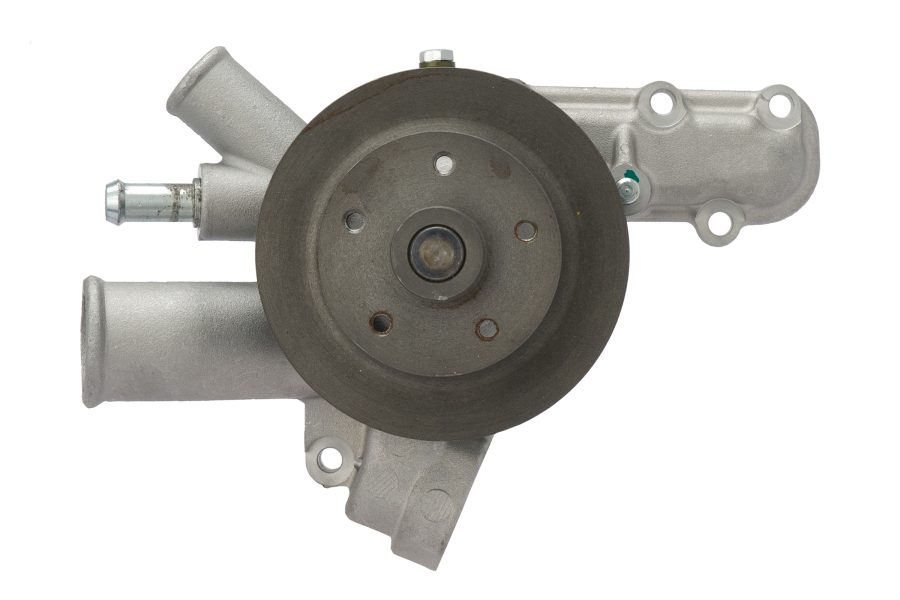

Reproduction Spica water pump to suit USA specification Spica injected cars. It will also fit some USA cars from the 1980s with Bosch injection and Aircon.

Water pump for Spider (1986-1990). Electric rev counter version of standard 3-exit pump.

Water pump for Spider (1990-1993). Removable pulley version of s3 pump.

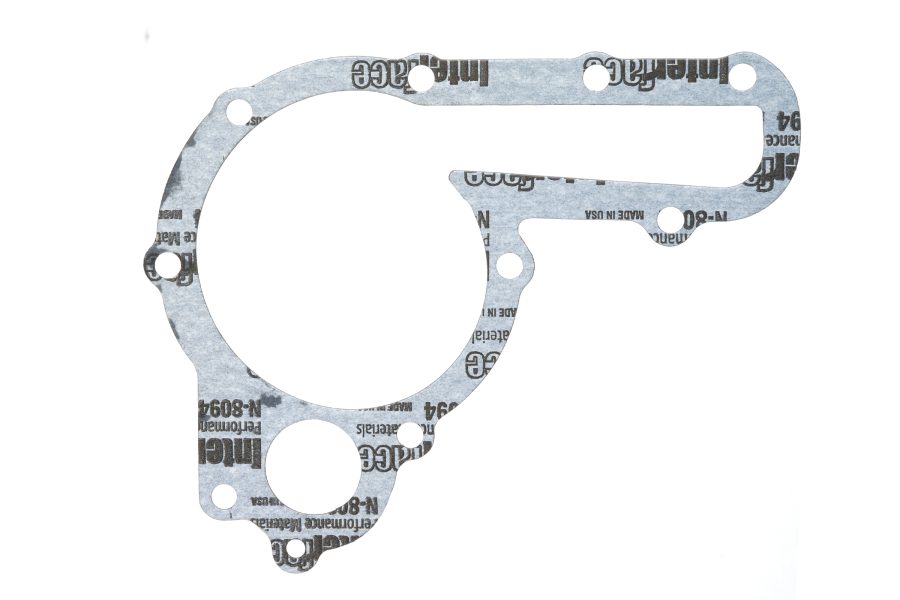

Water pump gasket for all versions of water pumps.

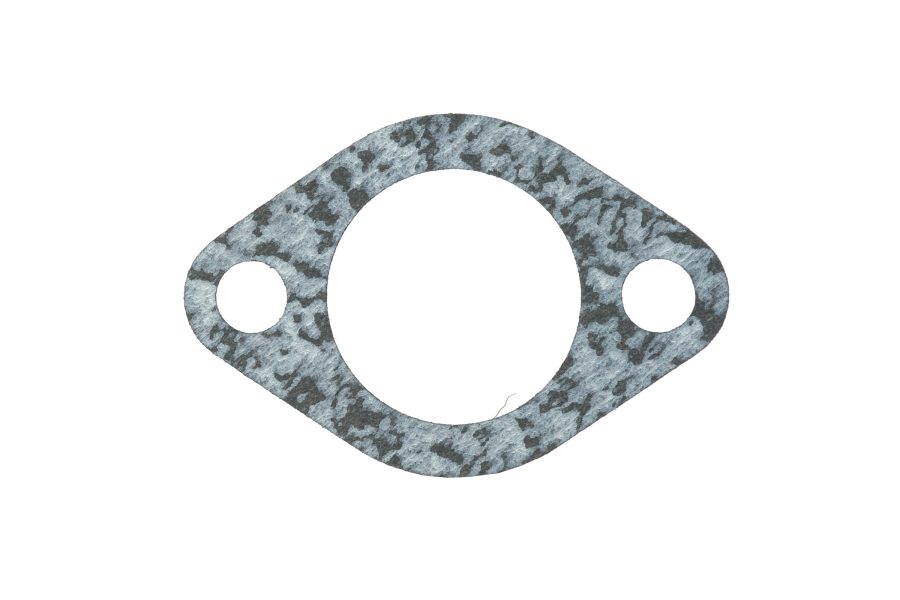

Rev counter paper gasket to suit all 105 series cars.

We stock fan belts to suit 105s with alternators & Dynamos in both standard service and heavy-duty extra service for race application.

For all GT Junior with 1750 style dash and no centre console.

For all cars centre console where fascia sits vertically.

Heater control slider knob chromed or black plastic.

Stainless steel screw for fixing to heater control fascia.

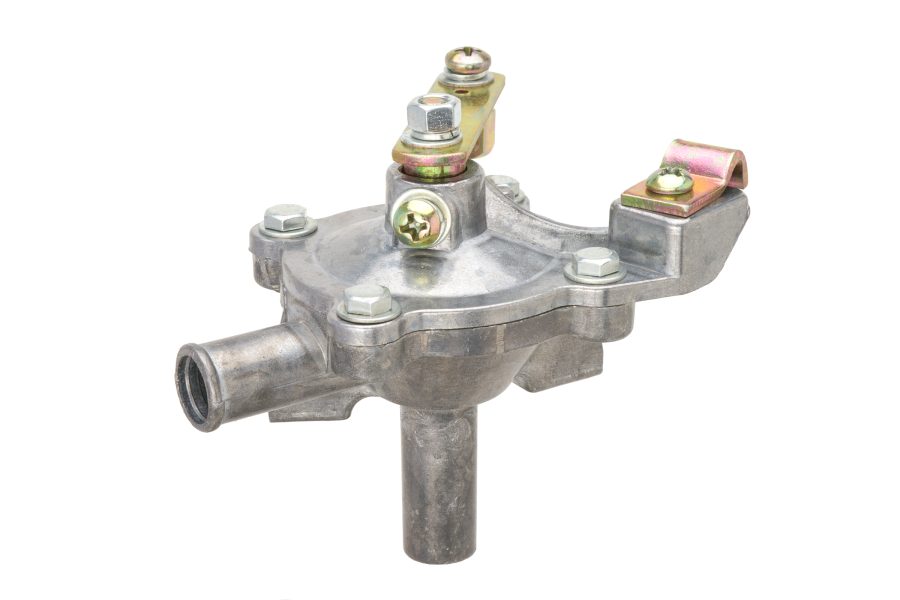

Tot fit all cars with 4 air outlet heaters – all step-front GT up to 1969 (flat dash cars), all Giulia Saloon and all Longtail Spider.

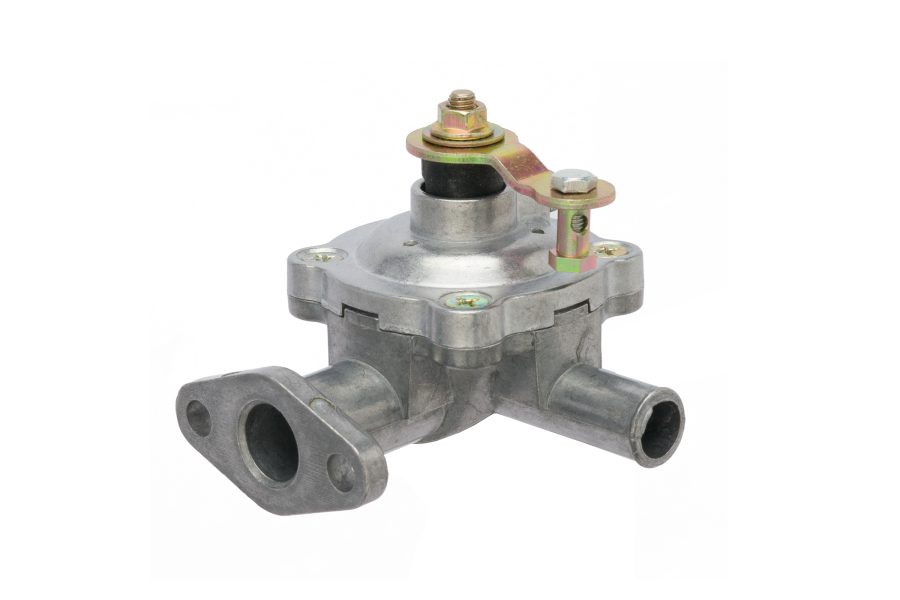

Heater valve (late).

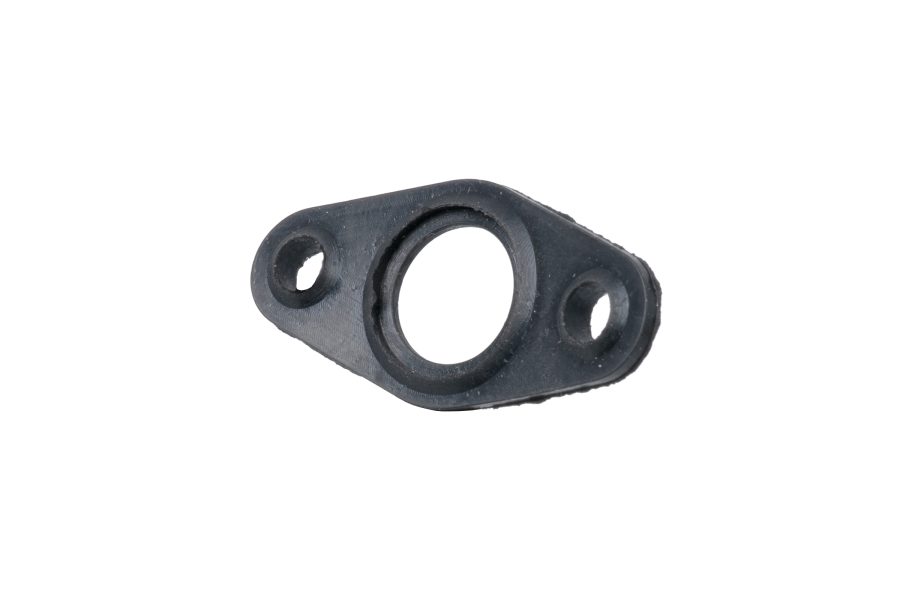

To seal late heater valve to body of heater.

With 4 outlet heater box’s.

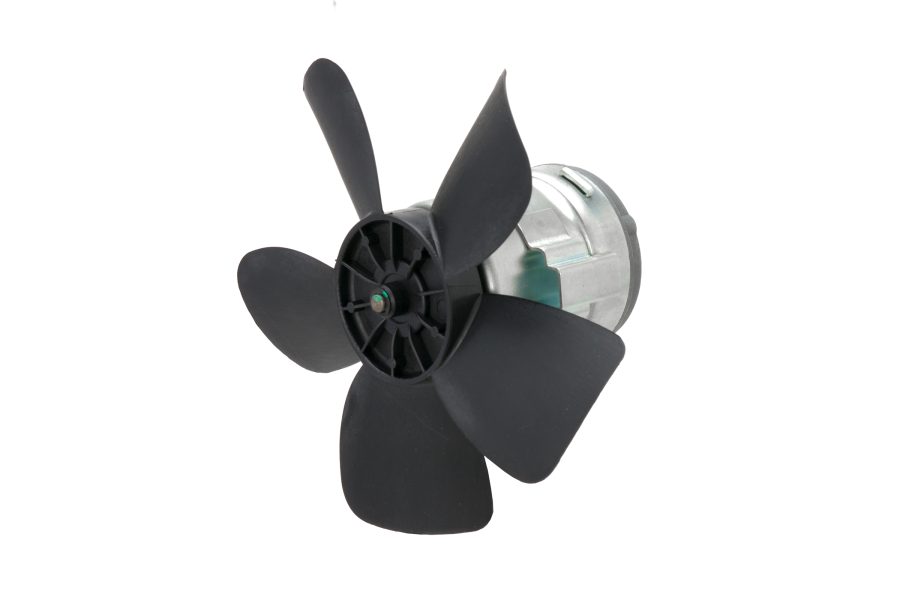

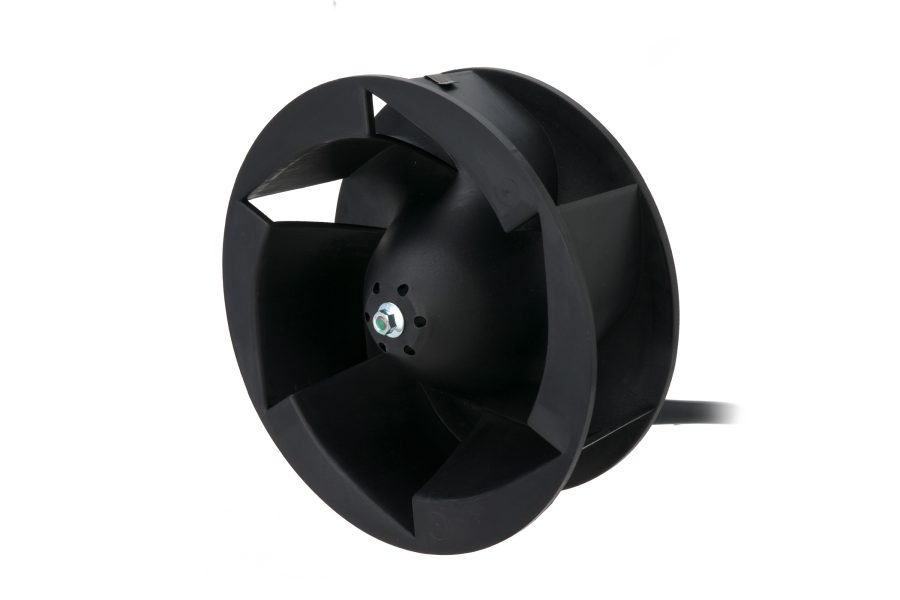

For heater boxes with 153mm diameter fan. Please note that we will need you to check the diameter of your own fan before ordering this part. Please do not ask us to guess!

Aluminium heater box cable clamp to suit all 105 series cars fitted with a 2 outlet heater box.

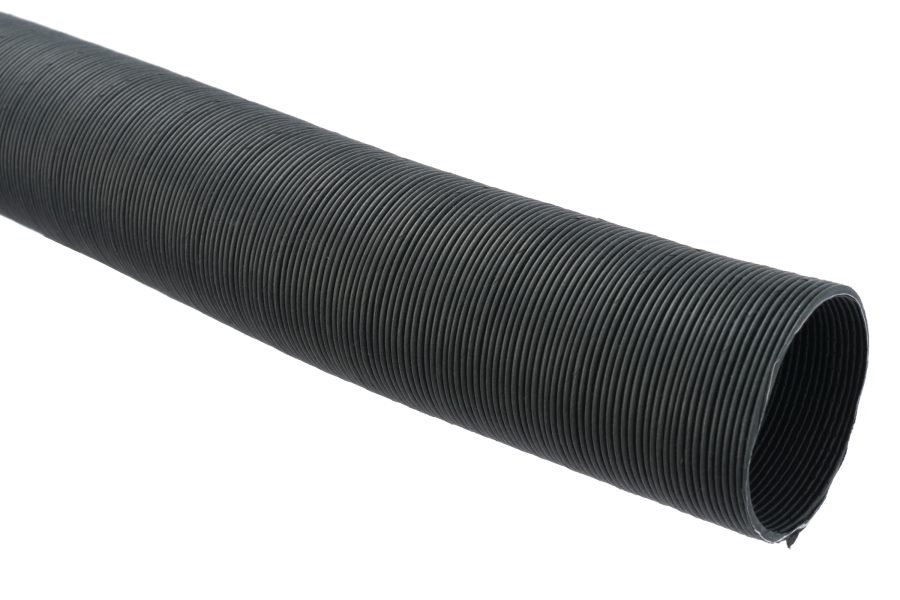

45mm diameter sprial bound ‘paper’ heater trunking to suit Roundtail Spiders, Sprint GTs/GTVs and Giulia saloons.  price is per metre length.

Airflow trunking for dashboard cold air vents – to fit 2000 GTV/Unificata GT Junior.

Late heater air trunking for GT S2 heaters.

Priced per pair.

Heater trunking for Kammtail Spider.

Two needed per car, priced per pair.
