Wheels and hub parts for 105 Series Alfa Romeo

Alfaholics GTA-R 7×15″ Wheel Smoke Grey

Alfaholics GTA-R 7×15″ Wheel Smoke Grey

£195.00 GBP (ex vat)

WHL-GTAR-29 | WHL-GTAR-35

A new uprated version of our 7×15” GTA Veloce wheel featuring steel racing stud inserts and painted in our unique smoke grey finish. As fitted to our renowned GTA-R builds. Our GTA-R  7×15″ inch wheels allow the fitment of modern high performance tyres such as the fantastic Yokohama AD08RS and Michelin Primacy.

The wheel is very light at just 7.0kgs. This has been achieved in part by incorporating small ribs into the back of the wheel, very much like the original sixties Campagnolo design, which allow the wheel to be made thinner in cross-section. The beauty of this thin cross section is that it has also enhanced the aesthetics of the wheel, by making the holes appear finer and more elegant. All variants of the wheels are now heat-treated for maximum strength and weight saving.

The wheel is supplied with a GTA centre cap and circlip.

GTA 6x14

GTA 6×14″ Strada Wheel

£150.00 GBP (ex vat)

WHL001

Superb reproduction of the 6 x 14″ GTA Strada wheel with correct period look vent holes. The wheel is incredibly light at 5.8kg and come complete with a GTA centre cap & clip.

The wheels carry a certificate from German TÜV who is performing the toughest wheel tests in the world.

Alfaholics 7x14

Alfaholics 7×14″ GTA Wheel – Magnesium

£995.00 GBP (ex vat)

WHL002

Manufactured exclusively for Alfaholics by the UK’s leading motorsport magnesium wheel manufacturer. This wheel has been manufactured to the very highest standards and designed with meticulous attention to detail, in order to ensure that it is an exact copy of the original 1st series Campagnolo wheel. Particular attention was paid to the accuracy of the vent hole – the main aesthetic feature. The wheel has been cast using the latest motorsport spec magnesium alloy, developed for Formula 3 racing and as a result weighs a mere 5.3kg, 0.2kg lighter than the original Alfa wheel! The wheels are finished in a protective black chromate coating, ready to be painted in the customer’s choice of colour. They are machined to the correct ET29 offset for 1600 & 1300 GTA and accept our GTA wheel badge and circlip. The wheels feature steel stud inserts (important for magnesium wheels) and are supplied with GTA centre badges and circlips.

Alfaholics 7x15

Alfaholics 7×15″ GTA Veloce Wheel

£160.00 GBP (ex vat)

WHL002/1 | WHL002/2

Our best selling wheel, now improved and even lighter!

The ultimate GTA style aluminium wheel, made exclusively for Alfaholics.

The last few years have seen the withdrawal of performance 14 inch road tyres from the market, with the result that there is little point spending good money upgrading your suspension, engine and brakes if you cannot transmit this improved performance properly to the road! Our GTA Veloce 7×15 inch wheels allow the fitment of modern high performance tyres such as the fantastic Yokohama AD08RS and Michelin Primacy 4, as fitted to Alfaholics works GTA-R builds.

The wheel is very light at just 7.0kgs. This has been achieved in part by incorporating small ribs into the back of the wheel, very much like the original sixties Campagnolo design, which allow the wheel to be made thinner in cross-section. The beauty of this thin cross section is that it has also enhanced the aesthetics of the wheel, by making the holes appear finer and more elegant. All variants of the wheels are now heat-treated for maximum strength and weight saving.

By being 15” diameter, there is adequate clearance for the steering ball joints (even without the use of GTA steering arms), so we have been able to produce the wheel to Alfa’s original design offset of ET29. We have also made an ET35 offset variant of the wheel, in order to clear the tighter rear arches on pre-1968 coupes (with the deeper rear arch) and all Giulia saloons. This means that we can offer a beautiful, lightweight 15 inch GTA style wheel to fit any 105 series Alfa Romeo.

The wheel is supplied with a GTA centre cap and circlip.

Suggested tyre sizes are 185/60, 185/65 or 195/60 for fast road use, 195/55 for high performance road and track day use.

“Thank you for the shipment of the wheels.  I got them today on Saturday.  My wife and I could not believe how beautiful those GTA Veloce Supperleggera wheels look.  We were both blown away.  These wheels looks awesome!  I got the other items you sent inside the wheels.  Your service to the U.S. is extremely fast.  It is the fastest service I have ever gotten from anyone.  I order items from all over the U.S. and even my own state, and it is never this fast.

Thank you.  I will be ordering more things from you in the near future.  I am extremely please with all the items in my order.  Thank you for all the advice you and Max provided with the decision of getting these wheels.  Take care.”

Carlos Rodriguez

Ti Super/TZ Wheel

Ti Super/TZ Wheel

£170.00 GBP (ex vat)

WHL102

High quality aluminium die-cast wheel manufactured to original factory offset. These wheels have a nice vent hole design (very similar to period 2nd series Tecnomagnesio manufactured wheels) and are much more attractive than other aftermarket aluminium TZ type wheels.

  • Offset 35
  • PCD 108
  • Bore 70.1
  • Size 5.5 x 15″
  • Weight 6.8KG
Alfaholics 8x15

Alfaholics 8×15″ GTAm Wheel – Silver

£220.00 GBP (ex vat)

WHL003

We have just manufactured a fantastic new wheel to add to our range of Alfa Romeo 105 Series wheels – an 8×15” version of the original 13” GTAm wheel.

Alfa Romeo, Ford and other manufacturers racing in the 1970s, made widebody versions of their race cars in order to fit wider tyres in an attempt to improve grip and therefore competitiveness. Tyre designs at the time were very antiquated compared with the compounds and constructions we have today, so the only option in the 70’s was to make tyres ever wider. Race tyres of the period were all huge in diameter which made it necessary to use 13” wheels in order to fit the wheel wells and retain sensible gearing. This inevitably meant compromising on brake disc size and limiting the scope to improve suspension geometry but this was considered secondary to the benefits of using a wider tyre.

Fast forward to the 21st century and vast improvements in tyre design and compounds mean that ultra wide tyres are no longer necessary and, in fact, can often be detrimental if the chassis is unable to work the tyre up to its operating temperature. 13” wheels have also fallen out of fashion with modern car design and consequently good 13” tyres are very hard to find. The only choice in 13” is to use either a modern semi-slick race tyre or a period high profile Dunlop CR65 race tyre. Semi-slicks offer good grip but the small overall wheel/tyre diameter causes serious ground clearance issues for road/trackday use. Increasing the ride height merely results in a ‘skateboard’ appearance. The alternative is to fit period race tyres but they are not legal for road use and their cross-ply construction makes the car vague and track cambers badly, not to mention being terrible in the wet! So, it raises the question; why spend lots of money and effort creating a lovely GTAm look but suffer appalling compromises and difficulties with a 13” wheel & tyre combination?

Well, the perfect solution is now here! You can have a stunning GTAm look wheel but in 15” diameter to suit high performance modern road and race tyres. The larger diameter also allows the use of our 4-pot and 6-pot brake conversions, neither of which are possible with a 13” rim. It also permits the use of the Alfaholics Geometry Kit which gives a significant improvement to the handling characteristics.

We have spent a lot of time and effort with 3-D CAD programming perfecting the shape of this wheel, especially the oval hole design, to ensure that it accurately replicates the original wheel, rather than the incorrectly shaped holes of reproduction 13” wheels.

NOTE

  • These wheels will not fit cars with standard bodywork!
  • 8.6 KG per wheel.
  • Offset is minus 7mm.
Alfaholics 8x15

Alfaholics 8×15″ GTAm Wheel – Gold

£235.00 GBP (ex vat)

WHL003/1

We have just manufactured a fantastic new wheel to add to our range of Alfa Romeo 105 Series wheels – an 8×15” version of the original 13” GTAm wheel.

Alfa Romeo, Ford and other manufacturers racing in the 1970s, made widebody versions of their race cars in order to fit wider tyres in an attempt to improve grip and therefore competitiveness. Tyre designs at the time were very antiquated compared with the compounds and constructions we have today, so the only option in the 70’s was to make tyres ever wider. Race tyres of the period were all huge in diameter which made it necessary to use 13” wheels in order to fit the wheel wells and retain sensible gearing. This inevitably meant compromising on brake disc size and limiting the scope to improve suspension geometry but this was considered secondary to the benefits of using a wider tyre.

Fast forward to the 21st century and vast improvements in tyre design and compounds mean that ultra wide tyres are no longer necessary and, in fact, can often be detrimental if the chassis is unable to work the tyre up to its operating temperature. 13” wheels have also fallen out of fashion with modern car design and consequently good 13” tyres are very hard to find. The only choice in 13” is to use either a modern semi-slick race tyre or a period high profile Dunlop CR65 race tyre. Semi-slicks offer good grip but the small overall wheel/tyre diameter causes serious ground clearance issues for road/trackday use. Increasing the ride height merely results in a ‘skateboard’ appearance. The alternative is to fit period race tyres but they are not legal for road use and their cross-ply construction makes the car vague and track cambers badly, not to mention being terrible in the wet! So, it raises the question; why spend lots of money and effort creating a lovely GTAm look but suffer appalling compromises and difficulties with a 13” wheel & tyre combination?

Well, the perfect solution is now here! You can have a stunning GTAm look wheel but in 15” diameter to suit high performance modern road and race tyres. The larger diameter also allows the use of our 4-pot and 6-pot brake conversions, neither of which are possible with a 13” rim. It also permits the use of the Alfaholics Geometry Kit which gives a significant improvement to the handling characteristics.

We have spent a lot of time and effort with 3-D CAD programming perfecting the shape of this wheel, especially the oval hole design, to ensure that it accurately replicates the original wheel, rather than the incorrectly shaped holes of reproduction 13” wheels.

NOTE

  • These wheels will not fit cars with standard bodywork!
  • 8.6 KG per wheel.
  • Offset is minus 7mm.

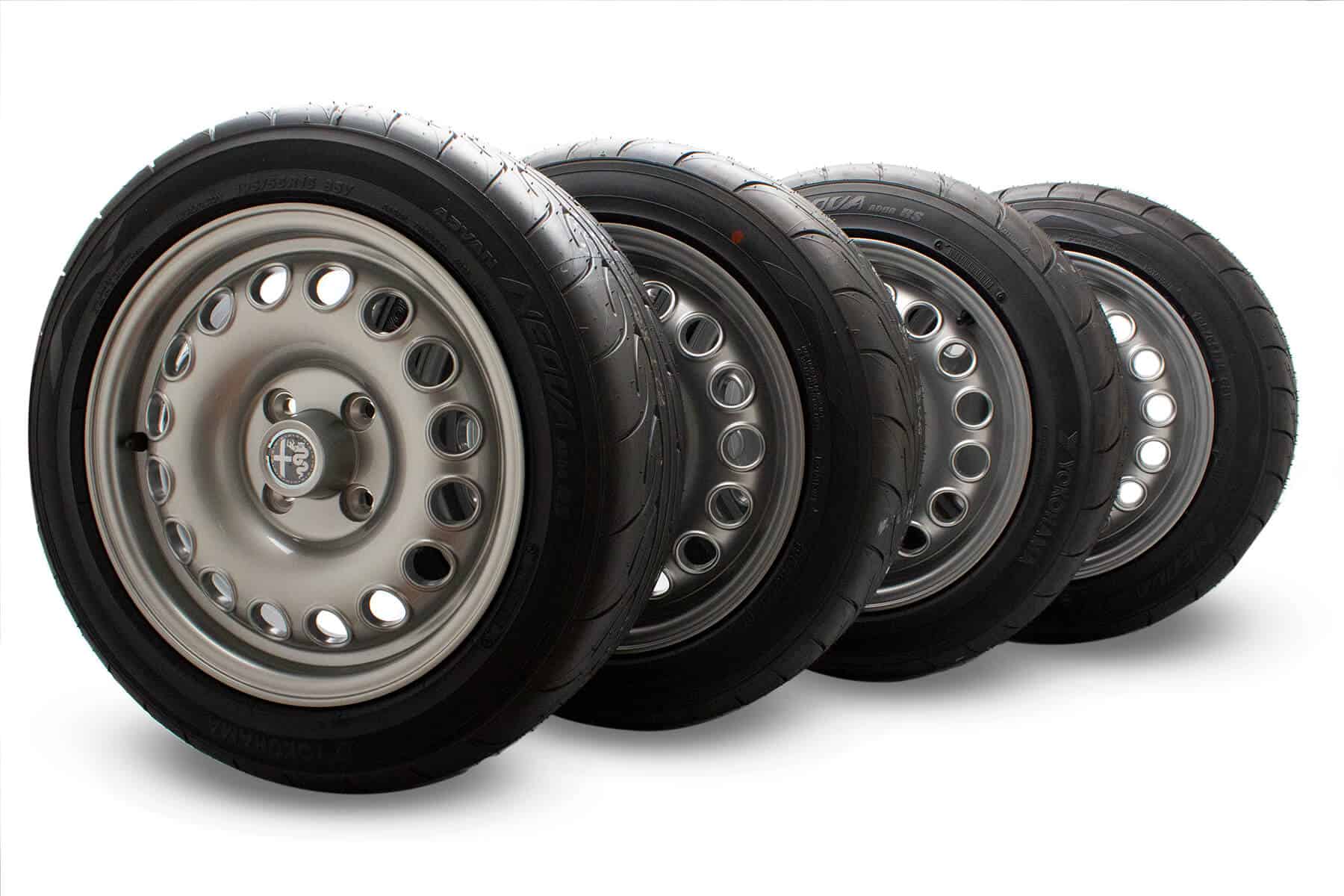

Alfaholics 7×15″ GTA Veloce Wheel & Tyre Packages

Alfaholics 7×15″ GTA Veloce Wheel & Tyre Packages

£1,030.00 – £1,210.00 GBP (ex vat)

WHPK1 | WHPK/2

This complete package of four Alfaholics 7×15 GTA Veloce Wheels. is offered with fitment, dynamic balancing with stick on weights. Available to order with Yokohama’s outstanding performance road/track tyre or Michelin energys.

Yokohamas new tyre is based on the carcass of their all conquering AO48 semi slick race tyre, featuring a superb new compound and tread design for fast road and track use. We have tested this new tyre for several thousand miles on Max’s GTA-R and Andrew’s Ti Super-R with outstanding and completely unrivalled results. Tyre grip & traction is superb with beautiful progressive feel to slides, lovely steering feel & response and excellent ride quality. The wet weather performance is just as impressive, easily handling standing water at up to 90mph/145kph! As an added bonus, wear rate is surprisingly low! By far the best tyres we have used for cross-over road & track use; all the performance of a semi-slick, with wet weather practicality and safety of a road tyre!

Available with a ET29 or ET35 offset.

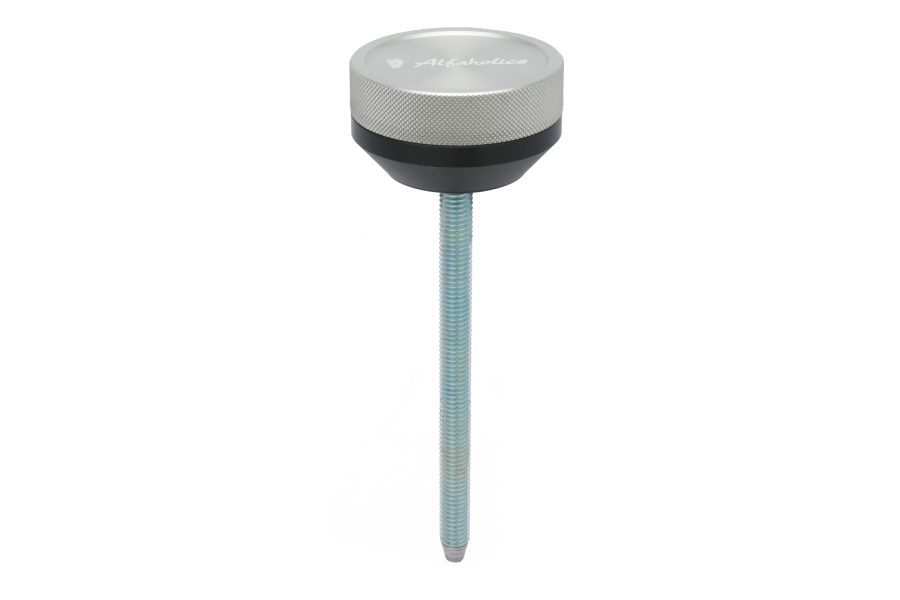

Alfaholics Spare Wheel Clamp

Alfaholics Spare Wheel Clamp

£75.00 GBP (ex vat)

WHL-105-SWC

Billet aluminium knured spare wheel hold down clamp to suit our 15″ GTA wheel. The factory clamp designed for a steel wheel (without centre hub nose) is too short to use with GTA wheels, therefore, we have designed this new clamp with billet aluminium knurled knob, extended threaded rod and plastic fitment cone to locate in the GTA wheel hub nose.

Hub Cap Clip

Hub Cap Clip

£3.50 GBP (ex vat)

WHL101

For use with all Hubcaps.

S4 wheel badge

S4 wheel badge

£4.50 GBP (ex vat)

WHL007

New production with plastic backing to fit Series 4 Spider “Teledial” wheels. Diameter 50mm (outer).

GTA wheel badge

GTA wheel badge

£4.95 GBP (ex vat)

WHL008

All our GTA type wheels are supplied complete with badges and clips but you can buy these separately. Diameter 48mm.

GTA wheel circlip

GTA wheel circlip

£3.50 GBP (ex vat)

WHL008/1

All our GTA type wheels are supplied with badges and clips but you can buy these separately.

Hub Cap Small Diameter Ring

Hub Cap Small Diameter Ring

£38.00 GBP (ex vat)

HUBCAP16

Hub Cap to suit Sprint GTV, Duetto & any cars with pressed ear fitment hubcaps.

Hub Cap 1600 - Spring Clips

Hub Cap 1600 – Spring Clips

£45.00 GBP (ex vat)

HUBCAPSC

Stainless steel hub cap to suit Sprint GT, GTC & early Giulia saloons from 1964-66 This hubcap will fit 15″ steel wheels with spring clips.

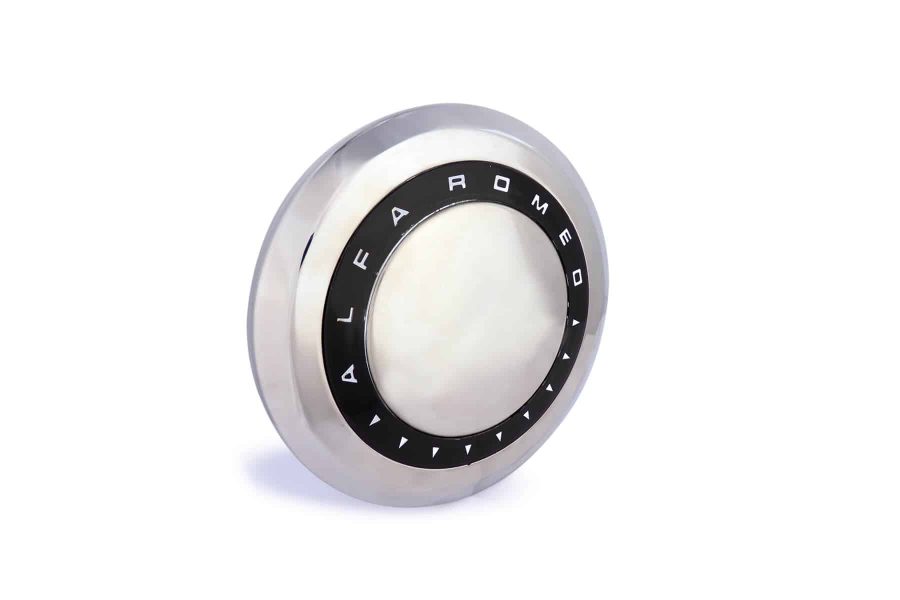

1750 Hubcap Large Ring

1750 Hubcap Large Ring

£35.00 GBP (ex vat)

WHL005

1750 (large ring) hubcap to suit 1750 GTVs, Spiders and Berlinas.

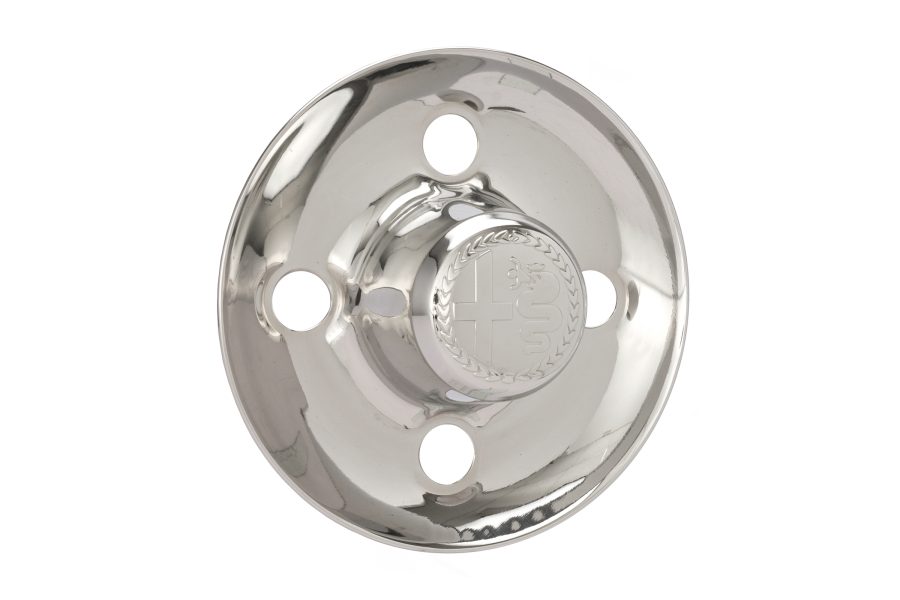

Giulia Super and GT Junior Wheel Hub Cap

Giulia Super and GT Junior Wheel Hub Cap

£36.00 GBP (ex vat)

WHL-105-WCS

Giulia Super and GT Junior wheel centre cap for steel wheels with Alfa logo pressed in. Held in place by wheel nuts.

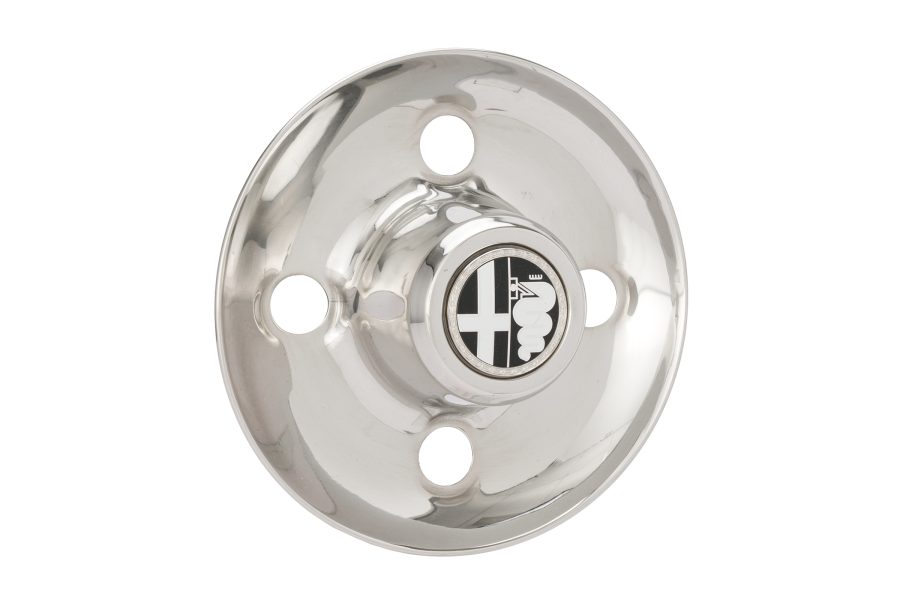

2000 GTV, Berlina & Spider Wheel Hub Cap

2000 GTV, Berlina & Spider Wheel Hub Cap

£36.00 GBP (ex vat)

WHL-105-WCC



2000 GTV, Berlina and Spider wheel centre cap for steel wheels with badge, held in place by our wheel nuts.

GTA Wheel Nut

GTA Wheel Nut

£3.95 GBP (ex vat)

WHL014 | WHL015

Alfaholics production, high quality stainless steel. Right or left hand thread available.

2000 GTV/Spider wheel nut

2000 GTV/Spider wheel nut

£4.95 GBP (ex vat)

WHL010

19mm nut with collar for locating hubcap. Alfaholics production, high quality stainless steel.

Brass Open Wheel Nut - Right Hand

Brass Open Wheel Nut – Right Hand

£4.25 GBP (ex vat)

WHL014C

22mm open wheel nut – right hand thread in brass as per the original type.

Brass Open Wheel Nut - Left Hand

Brass Open Wheel Nut – Left Hand

£4.25 GBP (ex vat)

WHL015C

22mm open wheel nut – left hand thread in brass as per the original type.

10mm Billet Rear Wheel Spacer

10mm Billet Rear Wheel Spacer

£39.95 GBP (ex vat)

WHL016/3

Alfaholics production CNC machined aluminium spacer with register on back face to locate of halfshaft spigot and matching spigot on the front face.

Billet 15mm Rear Wheel Spacer

Billet 15mm Rear Wheel Spacer

£39.95 GBP (ex vat)

WHL016/4

Specifically designed for GTAm widebody cars to achieve FIA gp.2 rear track width with normal (non-Autodelta) rear brake discs. Can be used for other applications also. Please note dependant on wheel thickness you might need to install longer wheel studs to use this spacer.

Wheel spacer 3mm

Wheel spacer 3mm

£7.95 GBP (ex vat)

WHL016/2

Aluminium wheel spacer 3mm.

Wheel spacer 5mm

Wheel spacer 5mm

£7.95 GBP (ex vat)

WHL016

Aluminium wheel spacer 5mm

Wheel stud

Wheel stud

£4.99 GBP (ex vat)

WHL017

Only available in right-hand thread.

Rear Wheel Studs

Rear Wheel Studs

£3.60 GBP (ex vat)

WHL/STUD1S

Rear wheel stud to suit all 105 series cars.

First series rear wheel stud has a 43mm shaft and is currently only available with a right hand thread.

Second series rear wheel stud has a 52mm shaft.



Tool Kit

Tool Kit

£80.00 GBP (ex vat)

MSC102

Original type tool kit for 105/115 Series Alfa Romeo. The kit includes a wheel brace (19mm), spark plug socket, 11 & 13mm spanner and a double ended screwdriver and pliers.
