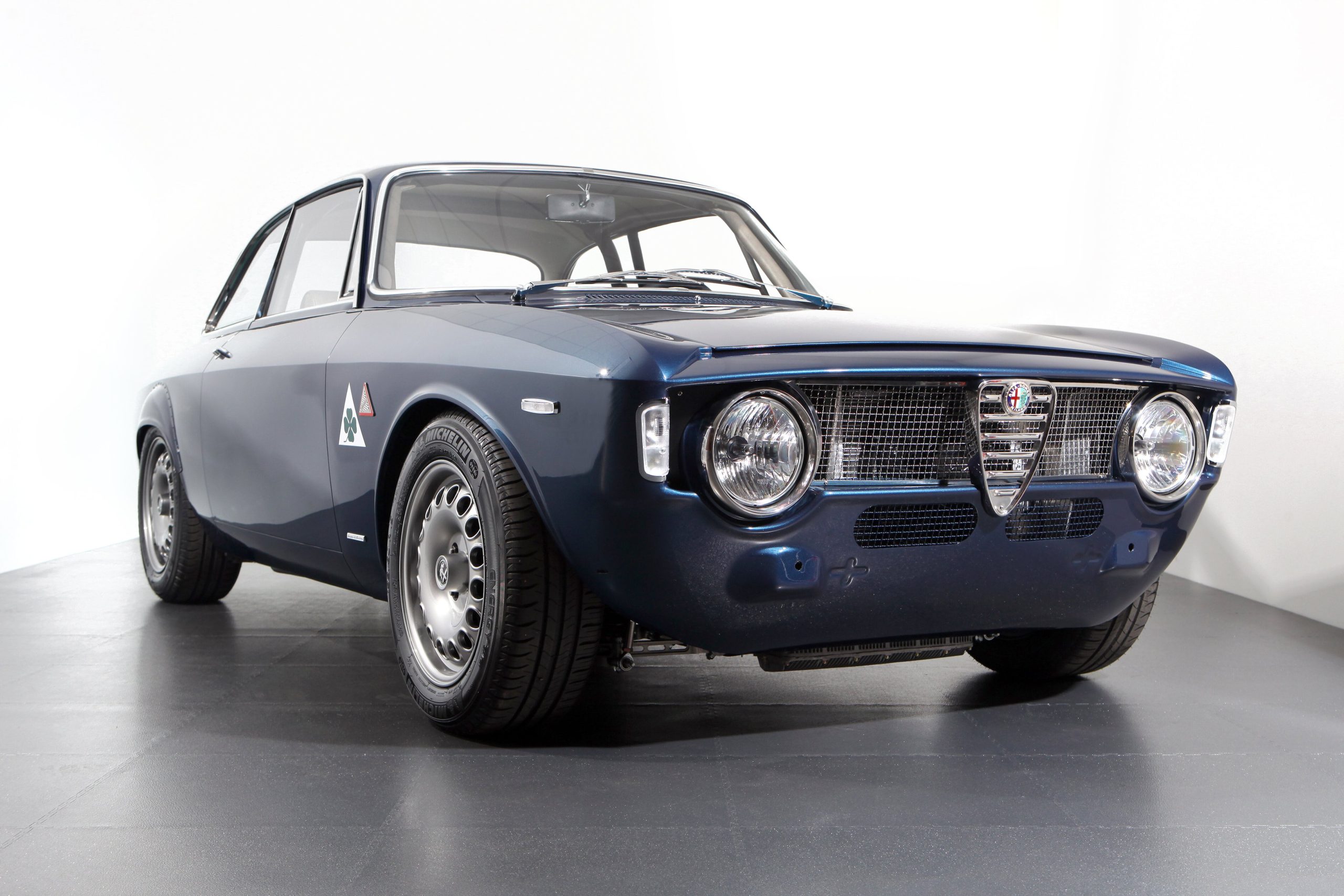

GTA-R
025 (USA)
Jump to Project Stage
Completed
Drivetrain

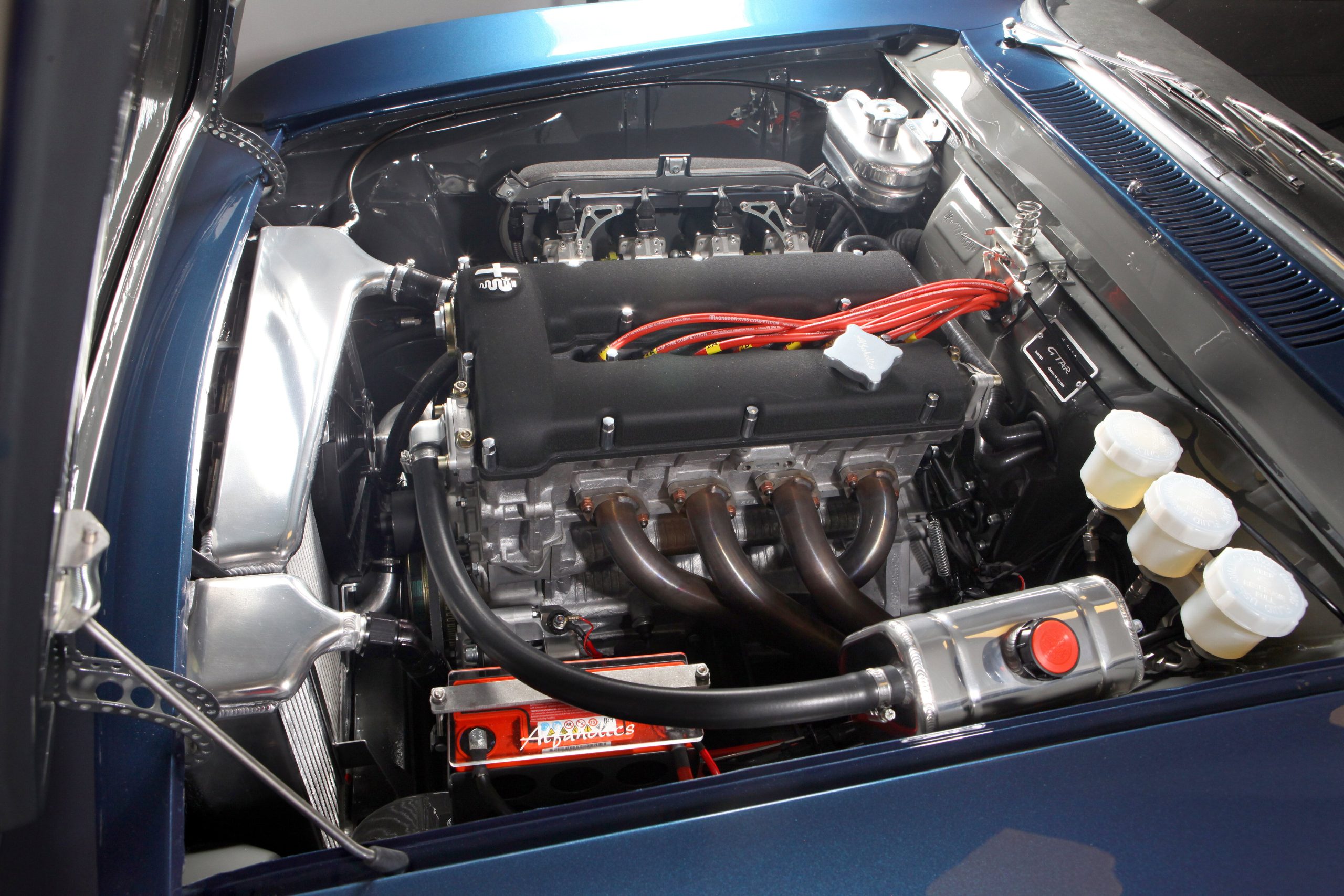

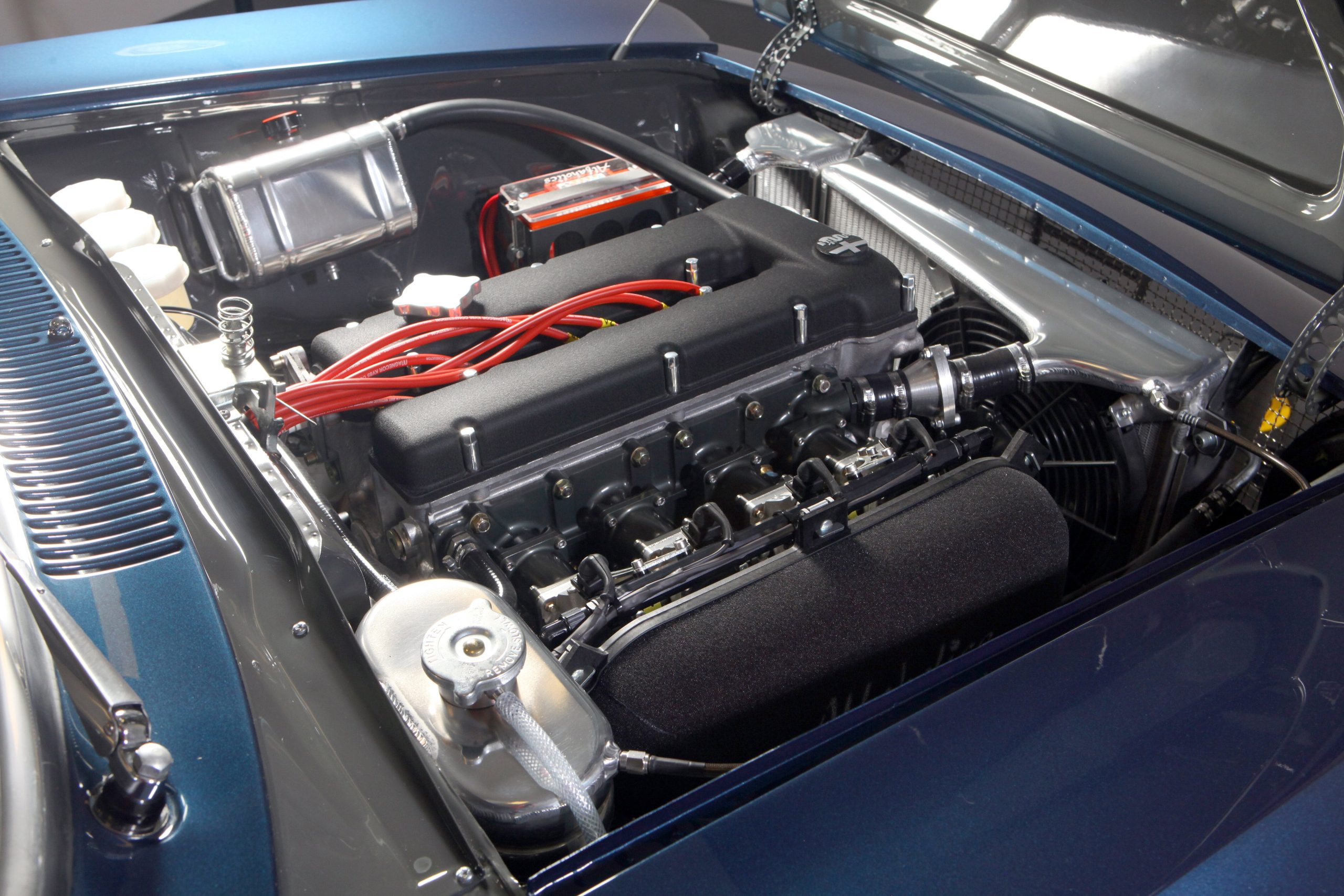

- Alfa Romeo Twin Spark Engine – 240bhp @ 7,000rpm
- Motec M1 engine management system with ITB electronic fuel injection
- GTA lightweight close ratio 5 speed gearbox
- Copper-sintered plate limited slip differential
- Titanium rear axle tubes & rifle drilled halfshafts
- Lightweight propshaft
- Stainless steel sports exhaust
- Aluminium high performance radiator & oil cooler
Suspension
- Titanium upper & lower front wishbones
- Titanium wheel hubs, titanium wheel studs & nuts
- Titanium fasteners
- Billet GTA-R ‘Big Spindle’ uprights
- Double adjustable aluminium gas shock absorbers
- Lightweight spring conversion with adjustable ride height front & rear
- Aluminium T-bar and lightweight trailing arms
Brakes
- Superleggera billet aluminium 6-pot front brake kit with 300mm vented discs
- Superleggera billet aluminium 2-pot rear brake kit with 267mm discs
- Dual circuit bias adjustable aluminium pedal box
Interior

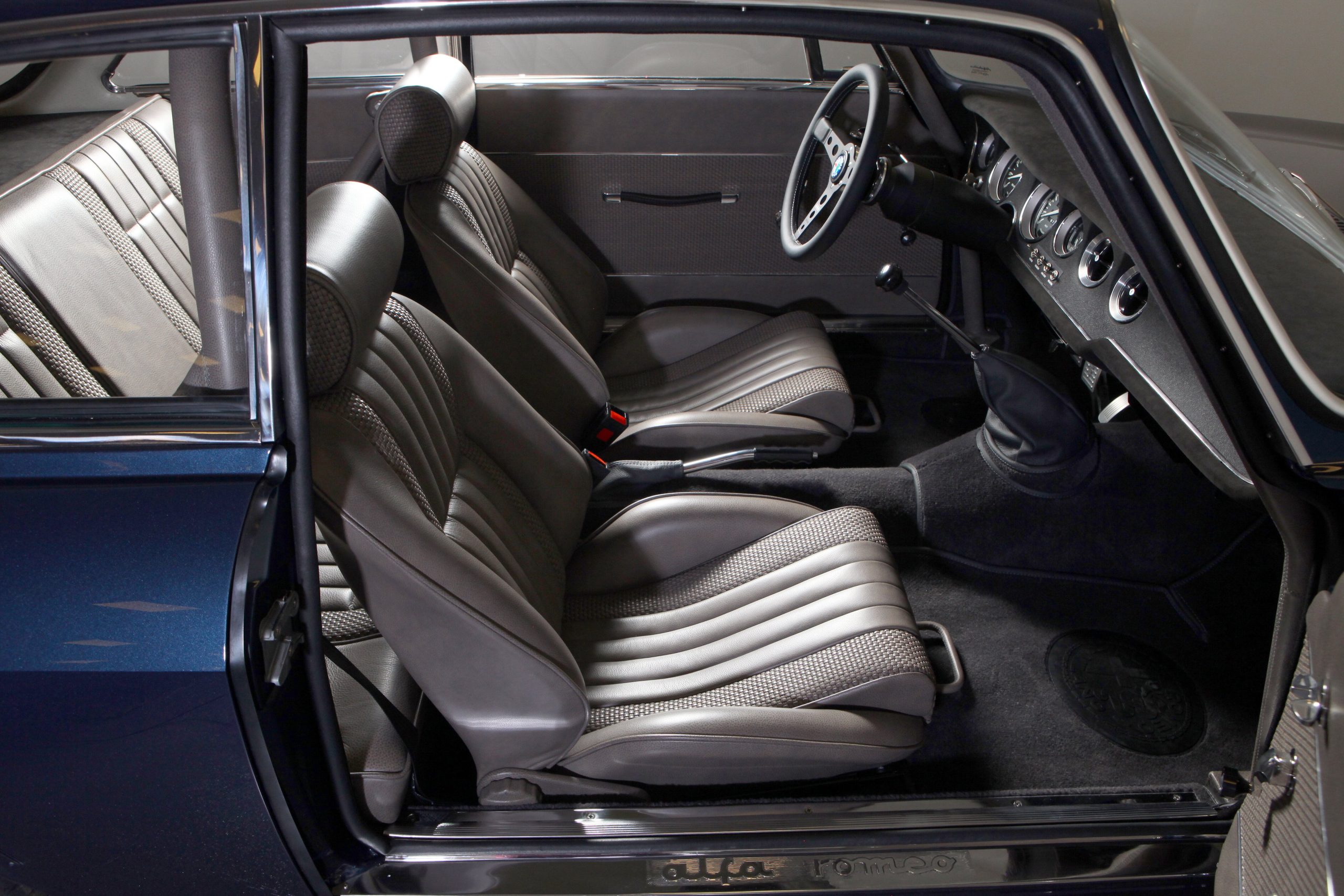

- Leather trimmed ‘Sport Road’ seats with custom weave

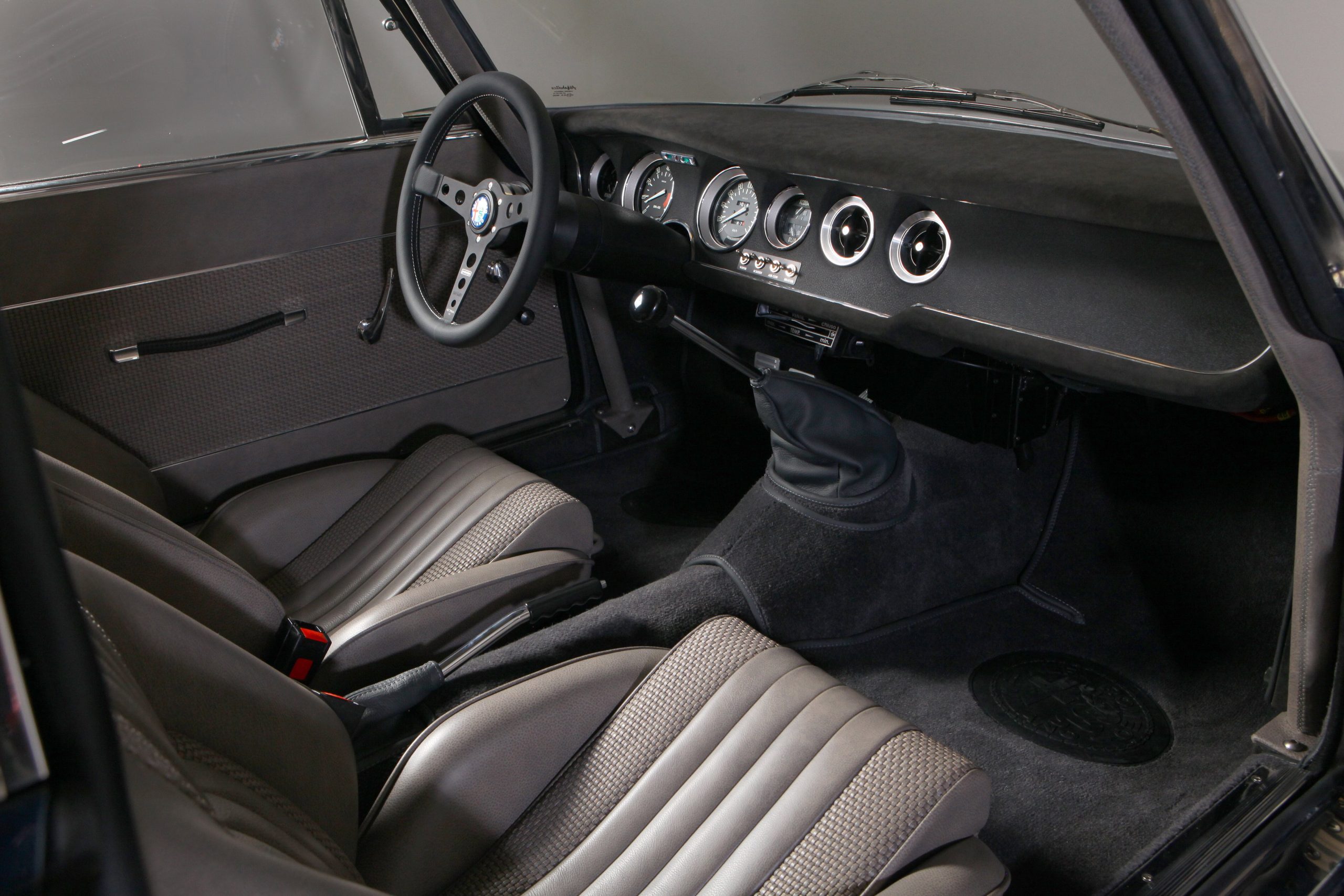

- Alcantara trimmed & crackle black painted dashboard, billet aluminium air vents

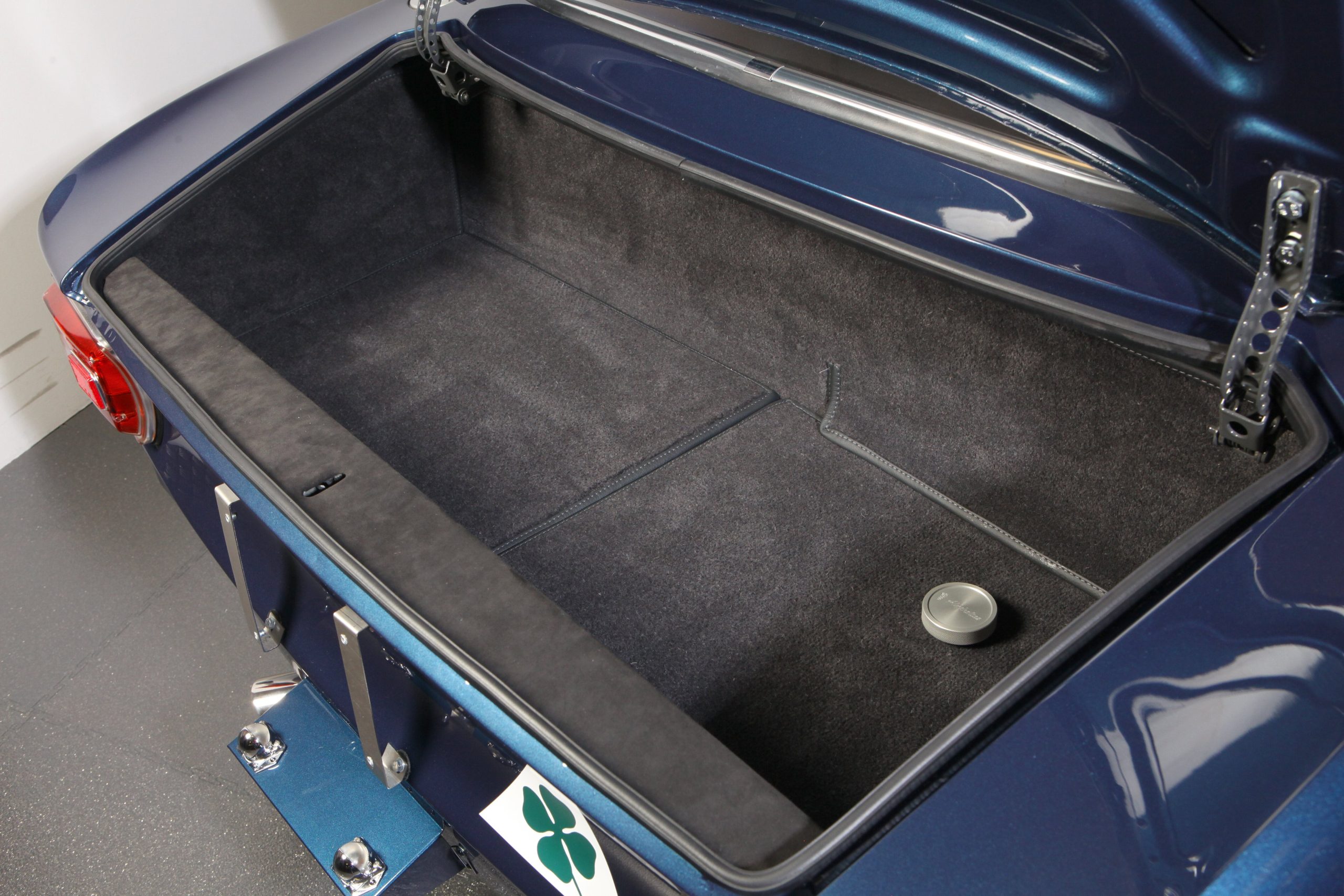

- Wilton Wool carpets
- Dynamat sound and heat insulation
- 12-point T45 simplified roll-cage trimmed in leather
- Billet aluminium pedals
- Momo Prototipo steering wheel with Rhodium plated build ID
Miscellaneous
- Air-conditioning
- Heated, lightweight windscreen
- Lightweight rear screen and side glass
- 55 litre foam-filled aluminium fuel tank

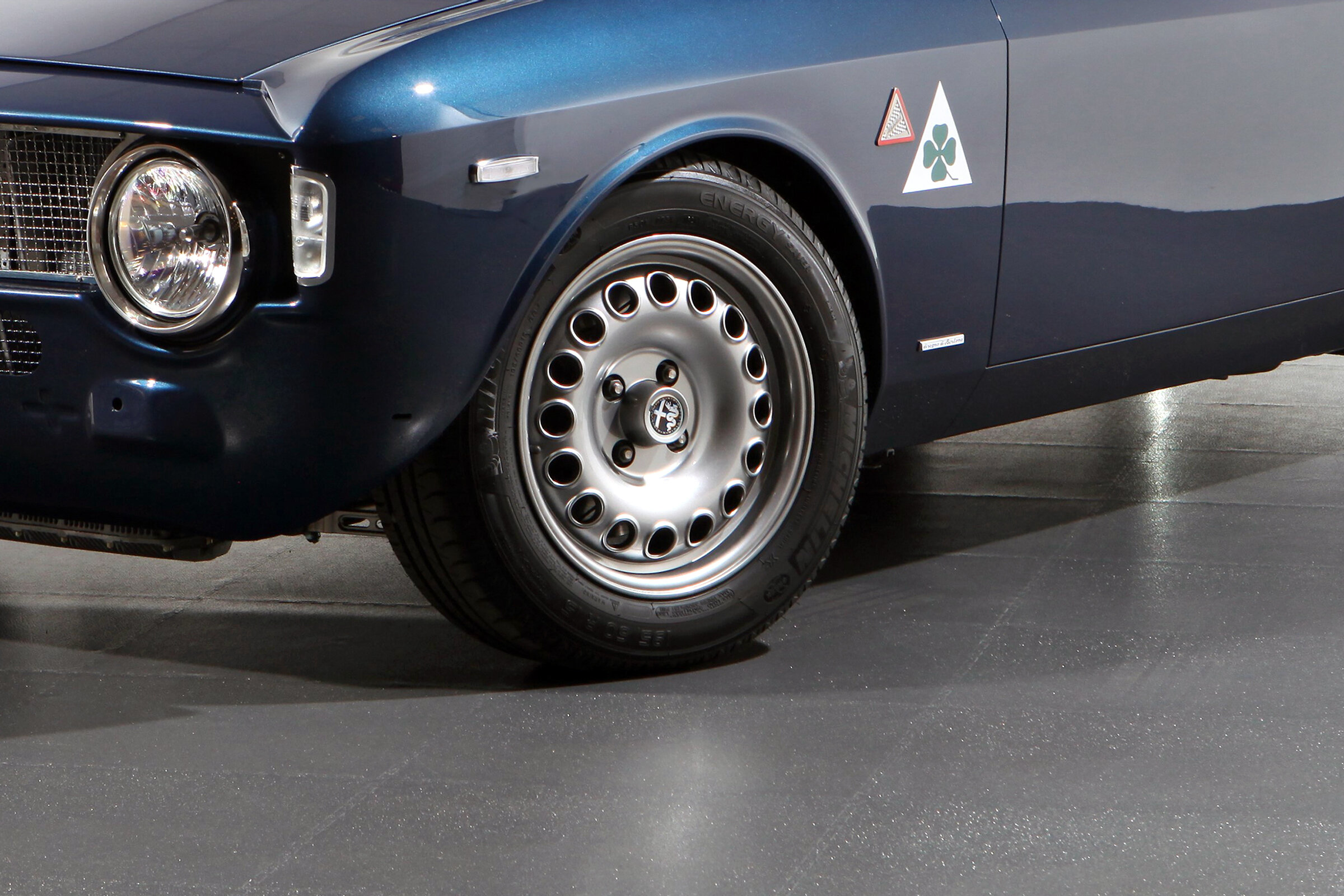

- 7×15” GTA Superleggera alloy wheels
- Michelin 195/60 R15 tyres


















Build Stage 1








Painted Shell Ready to Assemble
Shell fully restored, seam welded, chassis stiffened, bolt in cage bespoke manufactured, aluminium bonnet, boot and doors. Bespoke paint colour to customer request with GTA-R 290 spec grey chassis. Full shell full colour sanded and polished.








Chassis Repair 1
Shell media blasted and sat on our factory Celette jig for the first stage of chassis repairs to be made. Shell has a lot of the typical corrosion areas, base of windows, boot-floor, floors and seat cross rails, and the typical cracked front chassis legs which is why we make our specific chassis leg stiffener kits for these cars.






Donor Stripped
Donor stripped and ready to media blast.
