GTA-R 290 Widebody – 024

GTA-R 290 Widebody

024 (Jersey)

Completed

Body

  • Monocoque steel body, fully seam welded
  • Carbonfibre GTAm arch extensions
  • Carbonfibre doors
  • Carbonfibre bonnet
  • Carbonfibre boot
  • Carbonfibre spare wheel well
  • Carbonfibre ½ tank

Drivetrain

  • Alfa Romeo Twin Spark Engine – 240bhp @ 7,000rpm
  • Motec engine management system with ITB electronic fuel injection

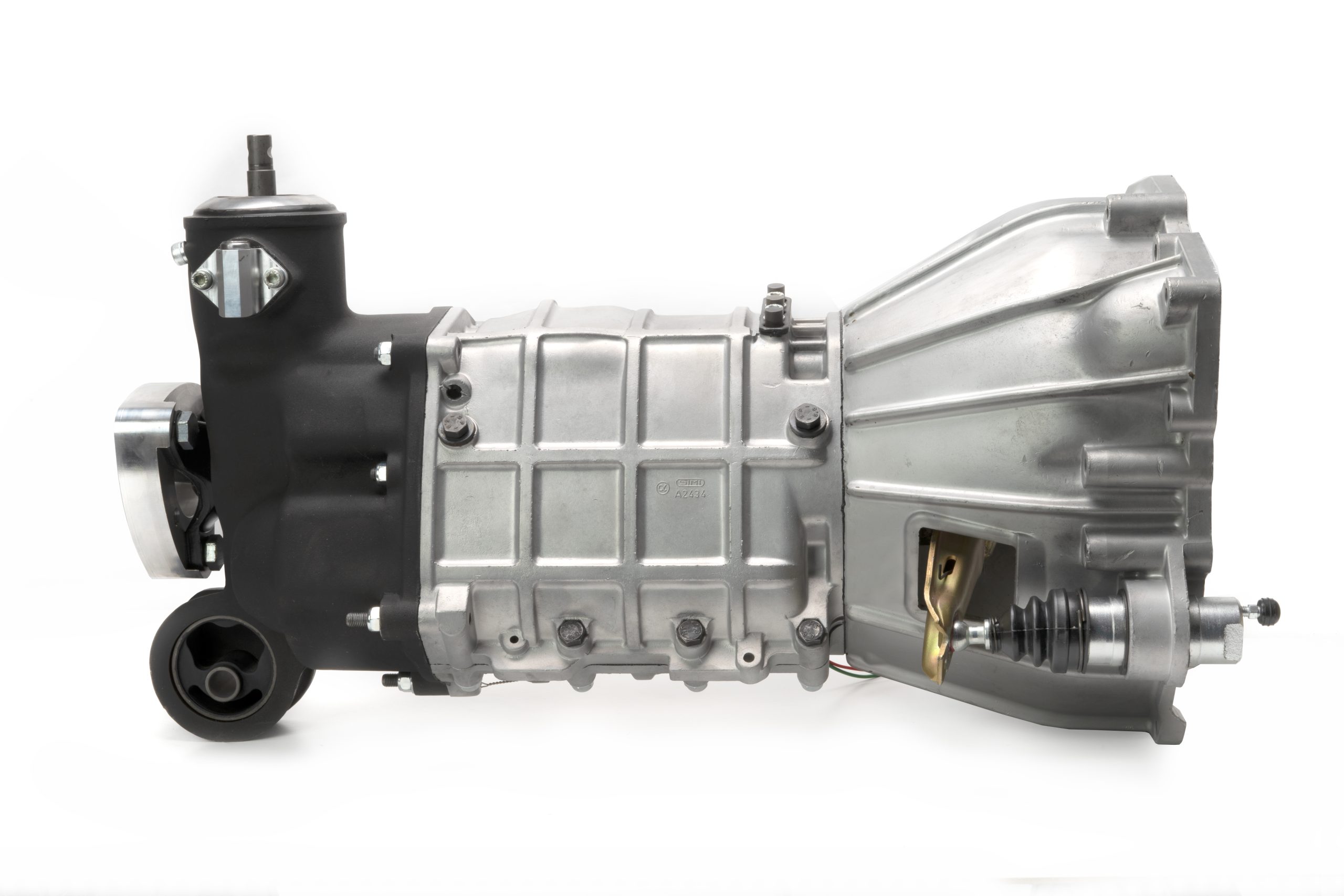

  • GTA lightweight close ratio 5 speed gearbox
  • Quickshift kit
  • Copper-sintered plate limited slip differential
  • Lightweight propshaft
  • Rifle drilled billet halfshafts
  • Stainless steel sports exhaust
  • Aluminium high performance radiator with taper flow top tank & oil cooler

Suspension

  • Tubular titanium upper front wishbones
  • Billet titanium lower front wishbones
  • Billet titanium geometry kit
  • Billet GTA-R ‘Big Spindle’ uprights – special modified KPI version optimised for wide offset wheels
  • Billet titanium hubs
  • Double adjustable aluminium gas shock absorbers
  • Lightweight spring conversion with adjustable ride height and titanium mounting pins
  • Titanium fasteners
  • Titanium wheel stud & nut kit
  • Aluminium T-bar and lightweight trailing arms

Brakes

  • Superleggera billet aluminium 6-pot front brake kit with 300mm vented discs
  • Superleggera billet aluminium 2-pot rear brake kit with 267mm discs
  • Dual circuit bias adjustable aluminium pedal box

Interior

  • Recaro seats trimmed in leather & leather/linen weave
  • Alcantara & leather trimmed dashboard
  • 12-point T45 roll-cage trimmed in alcantara
  • Alcantara headlining
  • Momo Prototipo steering wheel trimmed in matching alcantara
  • Contrast stitching to dash, seats, cage & steering wheel in petrol blue to compliment body colour
  • Wilton Wool carpets, bound in leather
  • Dynamat sound and heat insulation
  • Billet aluminium pedals

Miscellaneous

  • Heated, lightweight windscreen
  • Lightweight rear screen and side glass
  • 55 litre foam-filled aluminium fuel tank
  • 8×15” GTAm alloy wheels
  • Yokohama Neova AD08R 205/50 R15 tyres
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024
Completed - GTA-R 290 Widebody – 024

Painted Shell Ready To Assemble

Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024
Painted Shell Ready To Assemble - GTA-R 290 Widebody – 024

Paint Preparation

Paint Preparation - GTA-R 290 Widebody – 024
Paint Preparation - GTA-R 290 Widebody – 024
Paint Preparation - GTA-R 290 Widebody – 024
Paint Preparation - GTA-R 290 Widebody – 024
Paint Preparation - GTA-R 290 Widebody – 024

Chassis Fabrication 2

Final works before fitment of the carbon GTAm wing set and painting.

Chassis Fabrication 2 - GTA-R 290 Widebody – 024
Chassis Fabrication 2 - GTA-R 290 Widebody – 024
Chassis Fabrication 2 - GTA-R 290 Widebody – 024
Chassis Fabrication 2 - GTA-R 290 Widebody – 024
Chassis Fabrication 2 - GTA-R 290 Widebody – 024

Chassis Fabrication 1

With the general chassis restoration/fabrication completed, the shell is extensively seam welded to improve chassis rigidity and overall strength for its future uprated use. New carbon GTAm arch extensions are made and mocked up for the first time to allow the tubbing of the factory arches to be completed.

Chassis Fabrication 1 - GTA-R 290 Widebody – 024
Chassis Fabrication 1 - GTA-R 290 Widebody – 024
Chassis Fabrication 1 - GTA-R 290 Widebody – 024
Chassis Fabrication 1 - GTA-R 290 Widebody – 024
Chassis Fabrication 1 - GTA-R 290 Widebody – 024
Chassis Fabrication 1 - GTA-R 290 Widebody – 024

Jigging

With the shell fitted to our factory Celette jig, we start the bodyshell restoration with new floors, sills and other structural sections replaced with new panels and any other areas of corrosion cut out and replaced with new metal. Seam welding process is started and carbon panels fitted up.

Jigging - GTA-R 290 Widebody – 024
Jigging - GTA-R 290 Widebody – 024
Jigging - GTA-R 290 Widebody – 024
Jigging - GTA-R 290 Widebody – 024

Shell Blasted

This car is goign to be our first widebody GTA-R and will be living in the UK. We have used a RHD GT Junior donor car which is a virgin car, never previously restored but taken off the road in the 1980’s and owned by Alfaholics for a very long time. Media blasted bare, the shell is overall in good condition as a donor for a GTA-R build.

Shell Blasted - GTA-R 290 Widebody – 024
Shell Blasted - GTA-R 290 Widebody – 024
Shell Blasted - GTA-R 290 Widebody – 024
Shell Blasted - GTA-R 290 Widebody – 024
Shell Blasted - GTA-R 290 Widebody – 024
