GTA-R 300 Carbon – 023

GTA-R 300 Carbon

023 (UK)

Jump to Project Stage

Completed

Completed - GTA-R 300 Carbon – 023

Body

  • Full Carbonfibre outer body skin (-40kg), exposed weave on reverse of panels
  • Carbonfibre doors, bonnet & boot
  • Seam welded chassis

Drivetrain

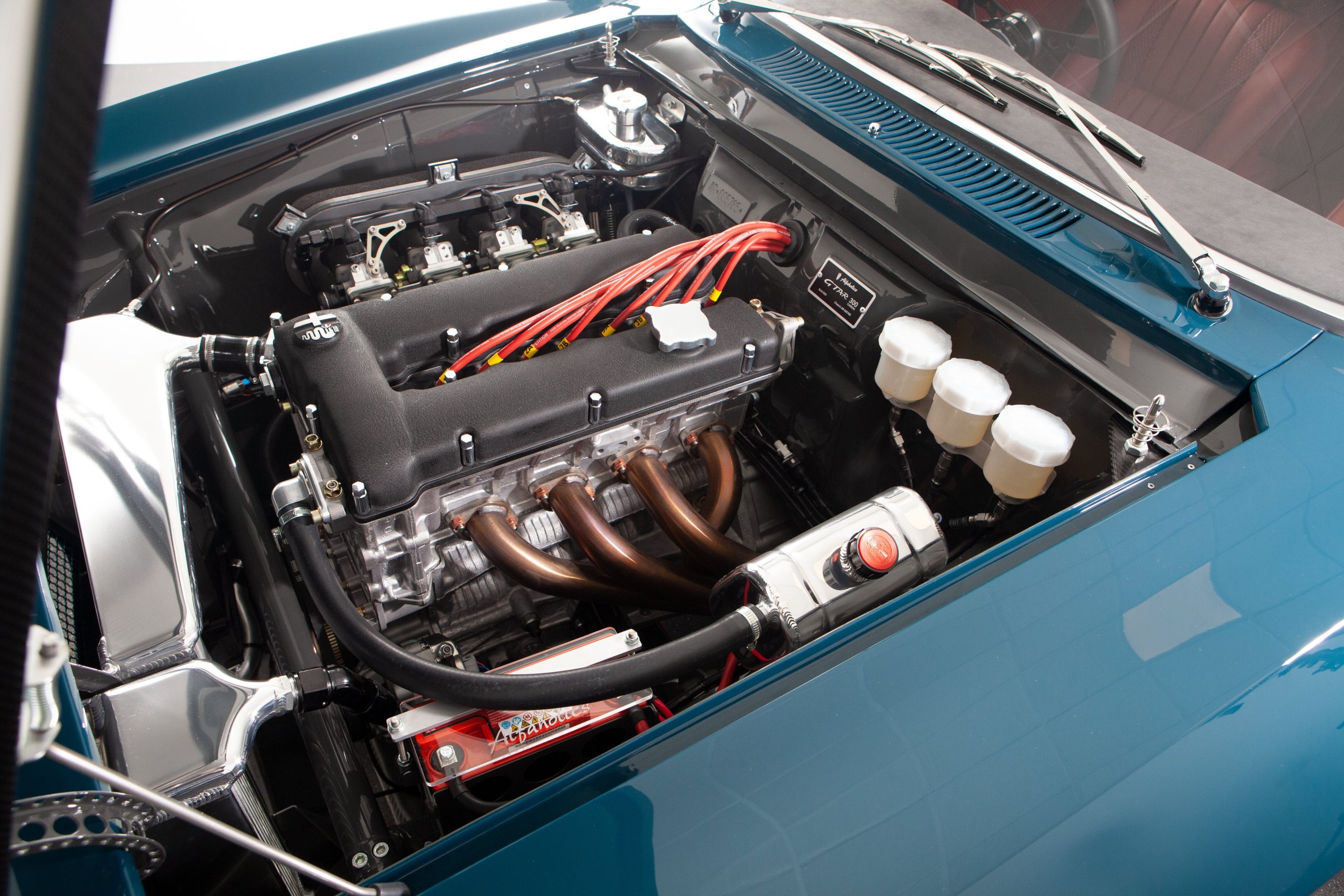

  • Alfa Romeo Twin Spark Engine – 240bhp @ 7,000rpm
  • Motec M1 engine management system with ITB electronic fuel injection
  • GTA lightweight close ratio 5 speed gearbox
  • Copper-sintered plate limited slip differential
  • Titanium rear axle tubes & rifle drilled halfshafts
  • Lightweight propshaft
  • Stainless steel sports exhaust
  • Aluminium high performance radiator & oil cooler

Suspension

  • Titanium upper & lower front wishbones
  • Titanium wheel hubs, titanium wheel studs & nuts
  • Titanium billet geometry kit
  • Titanium fasteners
  • Billet GTA-R ‘Big Spindle’ uprights
  • Double adjustable aluminium gas shock absorbers
  • Lightweight spring conversion with adjustable ride height front & rear
  • Aluminium T-bar and lightweight trailing arms

Brakes

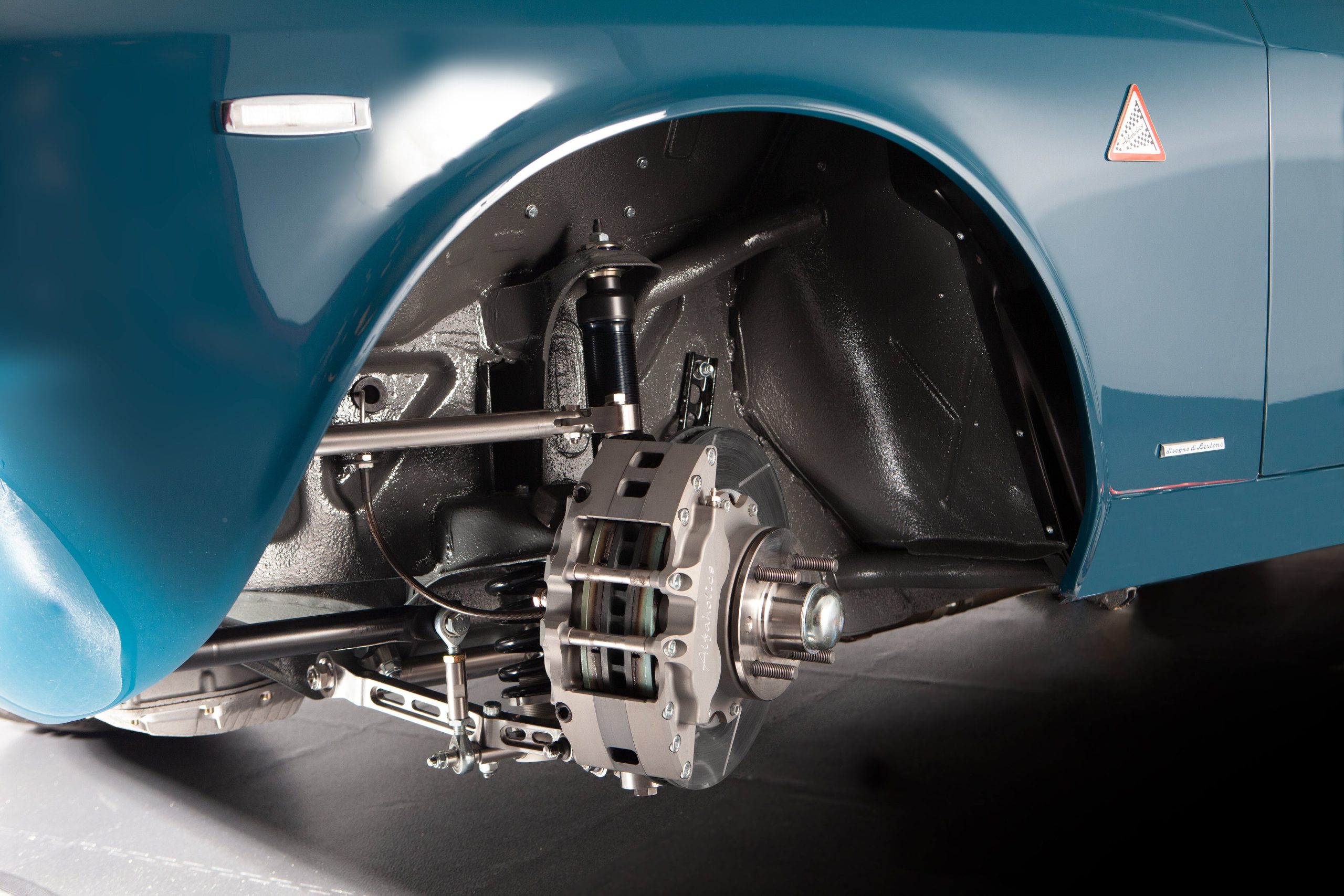

  • Superleggera billet aluminium 6-pot front brake kit with 300mm vented discs
  • Superleggera billet aluminium 2-pot rear brake kit with 267mm discs
  • Dual circuit bias adjustable aluminium pedal box

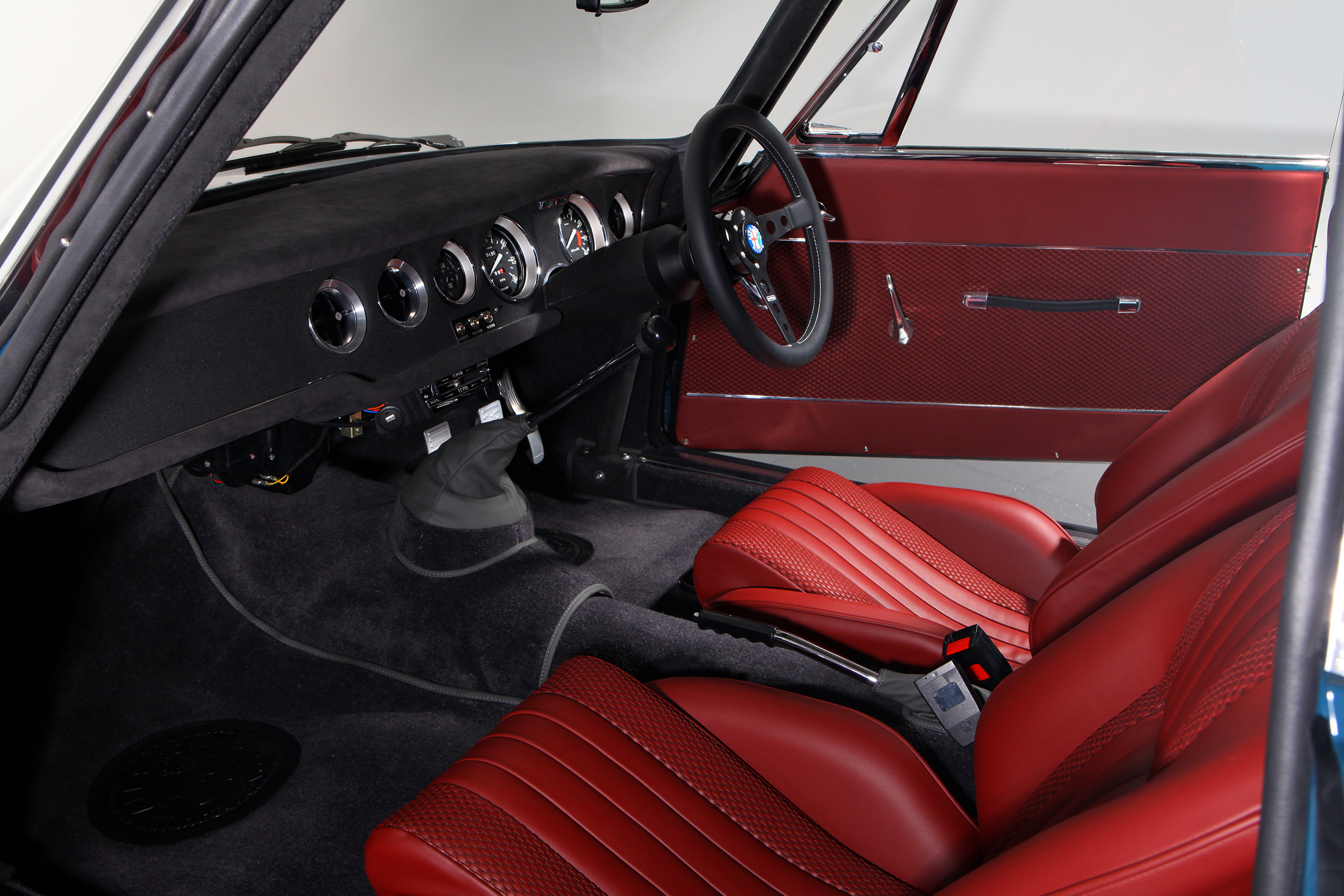

Interior

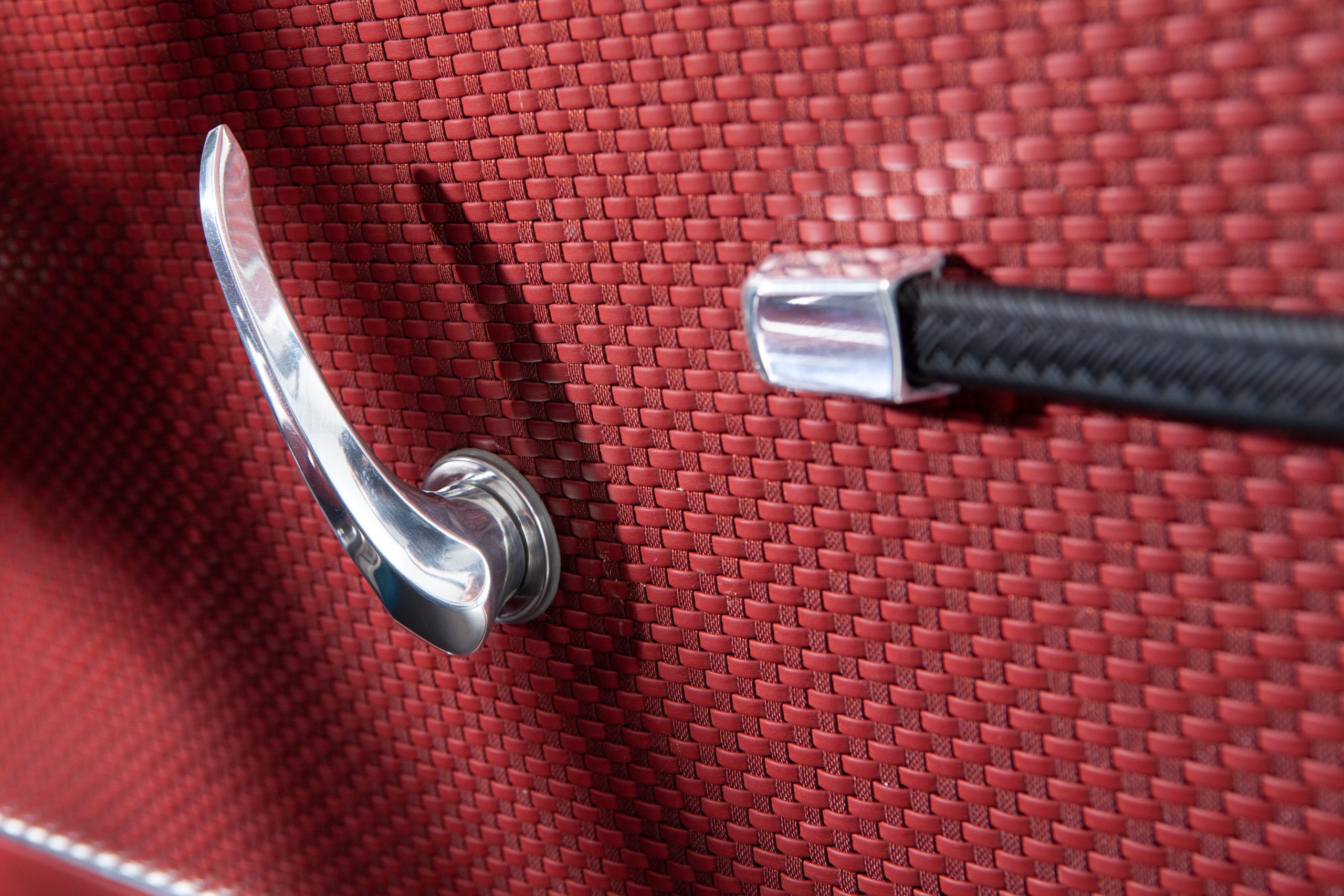

  • Leather trimmed ‘Sport Road’ seats
  • Alcantara and crackle black painted dashboard
  • Wilton Wool carpets
  • Dynamat sound and heat insulation
  • 12-point T45 simplified roll-cage trimmed in alcantara
  • Billet aluminium pedals
  • Momo Prototipo steering wheel

Miscellaneous

  • Heated, lightweight windscreen
  • Lightweight rear screen and side glass
  • 55 litre foam-filled aluminium fuel tank

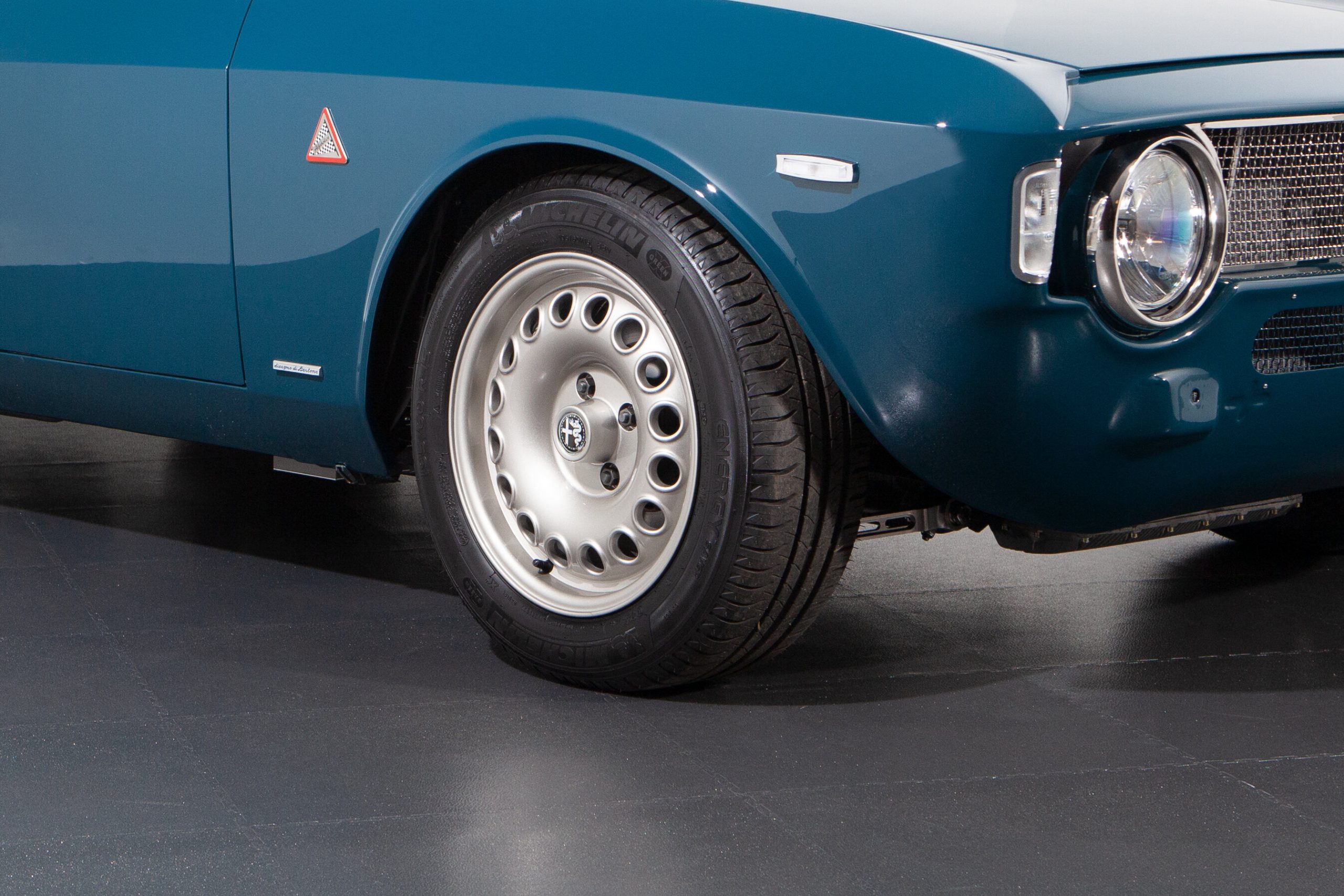

  • 7×15” GTA Superleggera alloy wheels
  • Michelin Primacy 4 195/55 R15 tyres

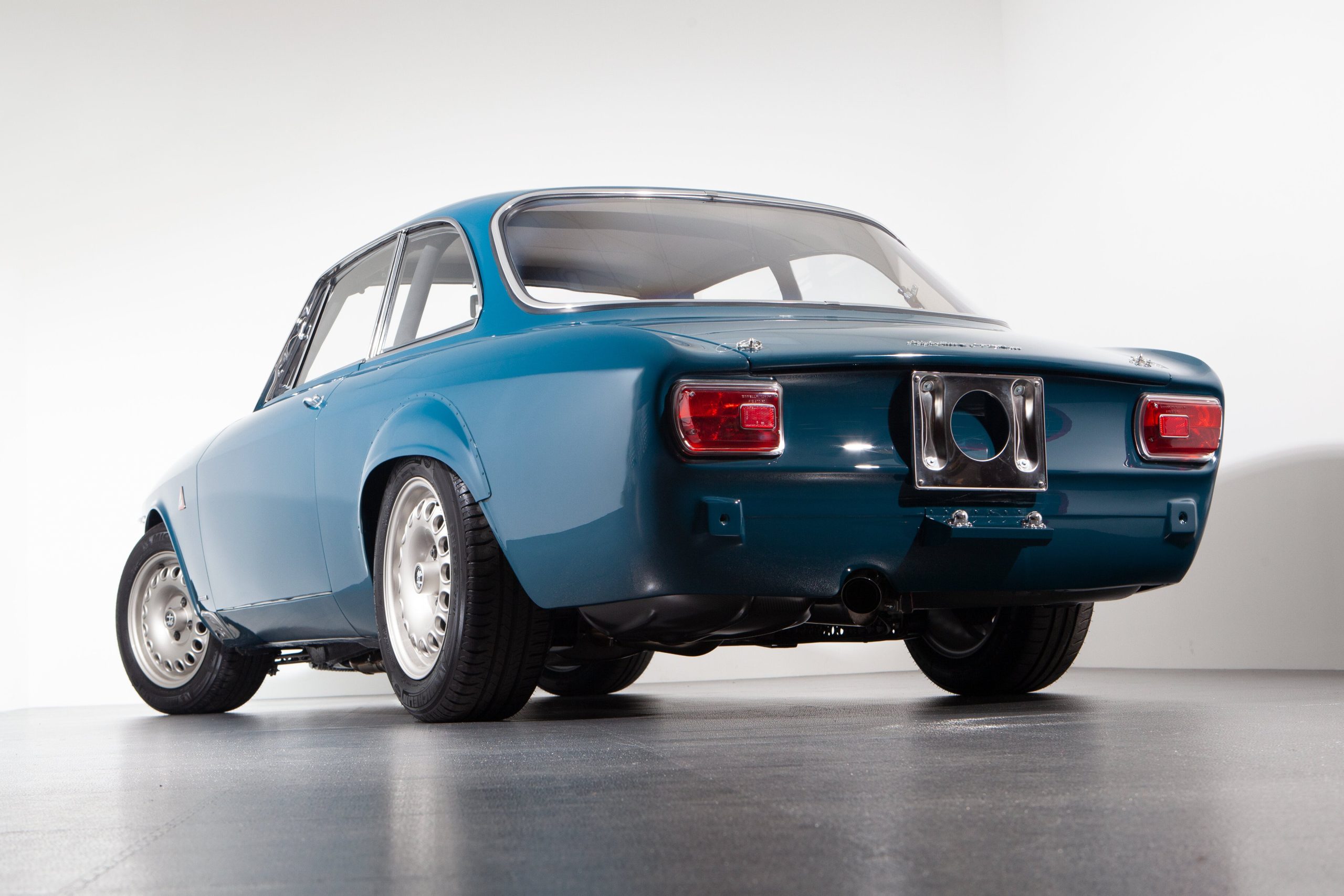

Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023
Completed - GTA-R 300 Carbon – 023

Build – Stage 3

Latest development titanium axle tubes used for full GTA-R spec axle build.

Build - Stage 3 - GTA-R 300 Carbon – 023
Build - Stage 3 - GTA-R 300 Carbon – 023

Build – Stage 2

Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023
Build – Stage 2 - GTA-R 300 Carbon – 023

Build – Stage 1

  • Titanium upper and lower wishbones
  • Double adjustable gas dampers
  • Dual circuit bias adjustable race pedal box, full stainless brake hardlines throughout
  • Billet steering box & idler box casings
  • Aluminium uniball t-bar
  • PCB & GTA-R loom
  • LED headlights
  • 55L aluminium foam filled fuel tank with carbon pump well
Build – Stage 1 - GTA-R 300 Carbon – 023
Build – Stage 1 - GTA-R 300 Carbon – 023
Build – Stage 1 - GTA-R 300 Carbon – 023
Build – Stage 1 - GTA-R 300 Carbon – 023
Build – Stage 1 - GTA-R 300 Carbon – 023
Build – Stage 1 - GTA-R 300 Carbon – 023

Shell Painted & Ready to Assemble

Shell painted in factory original Bluette externally, chassis in grey to compliment the exposed carbon on the visible internal areas & backs of panels.

Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023
Shell Painted & Ready to Assemble - GTA-R 300 Carbon – 023

Bare Carbon Bodyshell

We are delighted to launch an exciting new development to our Alfaholics GTA-R build programme; a full carbon fibre body panel conversion, which saves a huge 70kgs over a steel-bodied GTA-R. It also represents a significant 38kgs weight saving over our existing range-topping GTA-R 290, which already features a carbon fibre bonnet, boot and doors, thus giving a new power to weight figure of just over 300 BHP/tonne.

This build will integrate all our latest lightweight components such as our GTA-R Ultraleggera billet titanium suspension package for further weight saving and suspension geometry optimisation.

Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
Bare Carbon Bodyshell - GTA-R 300 Carbon – 023
