Radiators & Oil Coolers Race Parts for 105/115 Series Alfa Romeo

Silicone Hose Kit – Early - Cooling - 105/115 Series - Alfaholics

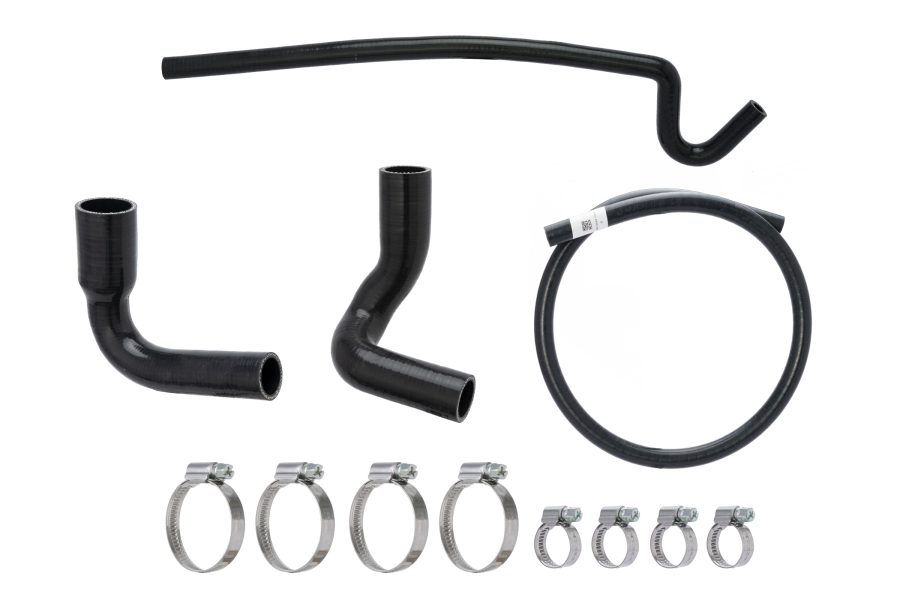

Silicone Hose Kit – Early

£80.00 GBP (ex vat)

COO016/K2

We now offer this complete package containing all the hoses you'll need for early 105 cars. The kit includes W2 stainless steel hose clips. It is designed to fit cars with twin carburettor inlet manifolds with the large screw in thermostat (not single carburettor 1600/1300Ti) and for cars with early radiators fitted with 4 legs and early heater boxes (i.e. Sprint GT/V, early GT Junior, Duetto, early Giulia Super, 1300/1600 GTA etc). Due to cars having had engine transplants over the years, please check the compatibility of components before ordering). If your car has had an engine transplant, please let us know the details and we can customise this kit to be compatible.

Silicone Hose Kit – Late - Cooling - 105/115 Series - Alfaholics

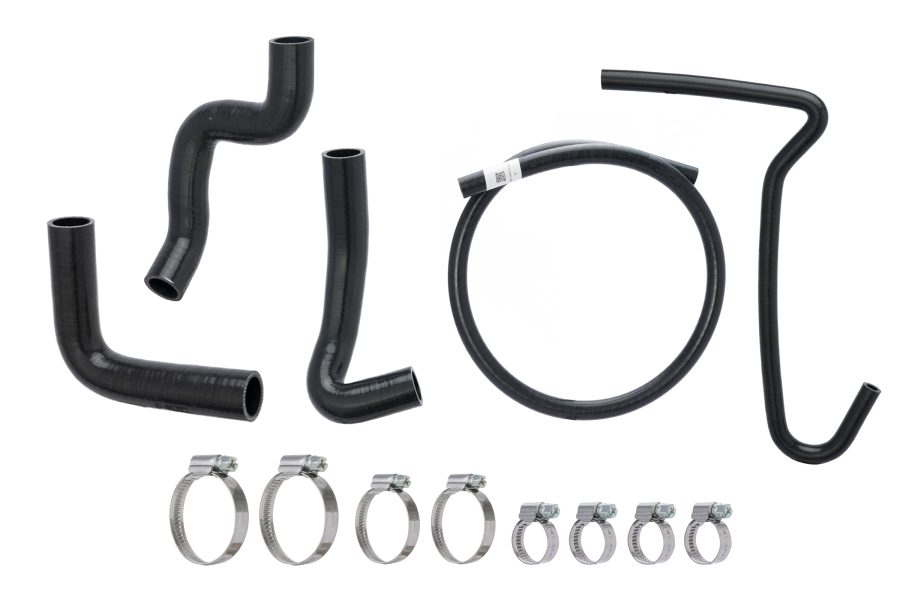

Silicone Hose Kit – Late

£100.00 GBP (ex vat)

COO016K

We now offer this complete package containing all the hoses you'll need for late 105 cars. The kit also includes W2 stainless steel hose clips. It is designed to fit later model cars with engines with late inlet manifolds which have a drop in thermostat housing, bypass hose and single piece bottom hose and late heater boxes. It will not fit 1750 model cars with their special 3 piece bottom hose arrangement and 2 exit water pump. If you want to fit this kit on a 1750 then you need to change the water pump to a 2000 version 3 inlet part.

Alfaholics GTA-R Radiator & Oil Cooler Assembly - Cooling - 105/115 Series - Alfaholics

Alfaholics GTA-R Radiator & Oil Cooler Assembly

£1595.00 GBP (ex vat)

GTA-R 21

Bespoke fabricated water radiator & oil cooler assembly for step front GT. Designed for our new GTA-R 290 project to increase cooling efficiency by improving water flow over the core & moving the radiator closer to the front grille. This simultaneously creates additional space to mount a larger cooling fan to the back of the radiator rather than in front which also improves the cooling efficiency. The oil cooler has been designed to bolt directly to the side of the radiator which simplifies its installation greatly. Supplied complete with electric fan.

Lightweight Aluminium Radiator for Early GT - Cooling - 105/115 Series - Alfaholics

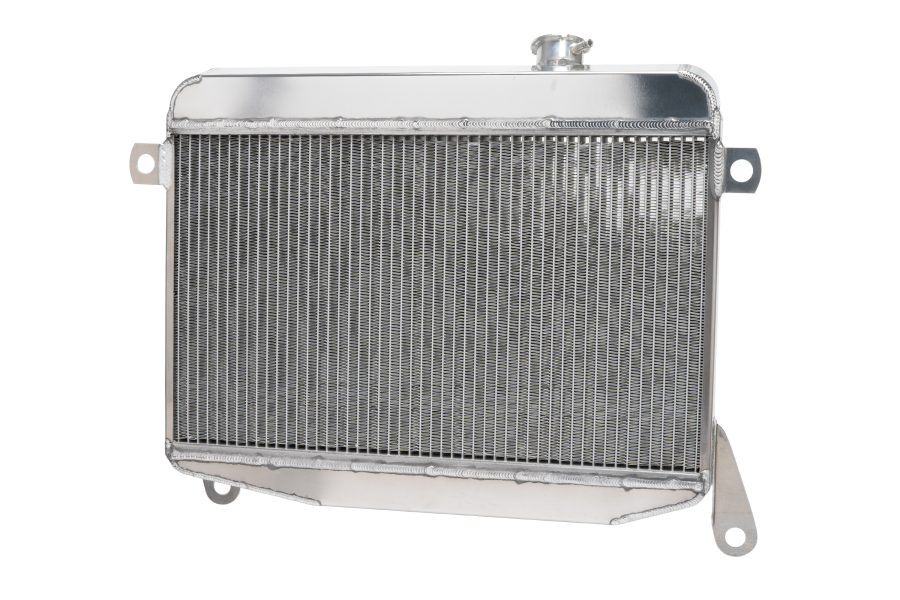

Lightweight Aluminium Radiator for Early GT

£595.00 GBP (ex vat)

RCE1004/1

High-quality motorsport manufactured aluminium radiator to fit all step-front GT and early Giulia. Fitted with a high-performance core to give the most efficient cooling capacity. Recommended for use with all performance-tuned engines to maximize performance and avoid any potential engine damages or overheating issues.

Lightweight Aluminium Radiator for Non Step Front Cars - Cooling - 105/115 Series - Alfaholics

Lightweight Aluminium Radiator for Non Step Front Cars

£595.00 GBP (ex vat)

RCE1004

High-quality motorsport manufactured aluminium radiator to fit all coupe and Saloon cars post 1968. 1750&2000 GTV, all 1600 GTJ, late 1300 GTJ, Giulia Super and Berlina.Fitted with high-performance multi-row core.. Fitted with a high-performance core to give the most efficient cooling capacity. Recommended for use with all performance-tuned engines to maximize performance and avoid any potential engine damages or overheating issues.

Lightweight Aluminium Radiator for 1750 & 2000 Spider - Cooling - 105/115 Series - Alfaholics

Lightweight Aluminium Radiator for 1750 & 2000 Spider

£595.00 GBP (ex vat)

RCE1005

As per 2000 GTV radiator but to fit 1750 Roundtail Spider, 1750 Kammtail, 2000 Kammtail and Kammtail Spider Junior. Fitted with high performance multi row core. As used in all Alfaholics Spider-R builds!

Alfaholics Thermostat in Housing - Twin Spark Engine - 105/115 Series - Alfaholics

Alfaholics Thermostat in Housing

£69.95 GBP (ex vat)

RCE4042

Alfaholics production. CNC machined billet aluminium remote thermostat housing for twinspark conversion 105 Series cars. We have manufactured this system to allow us to source a lower temperature thermostat than using the Alfa sourced item typically available. By running a 74 degree thermostat rather than one typically 10-12 degrees hotter results in a 3BHP increase in back to back tests on the rolling road. The cheapest BHP increase to be found!

Electric Fan Thermostatic Controller – In Line Hose Version - Cooling - 105/115 Series - Alfaholics

Electric Fan Thermostatic Controller – In Line Hose Version

£39.99 GBP (ex vat)

COO131

CNC machined aluminium housing with electric thermostatic switch, wonderfully neat and simple fan controller solution. Splice into the bottom hose of the radiator to switch a standard 4-pin relay to switch electric cooling fan on and off.

Stant Radiator Cap – With Lever - Cooling - 105/115 Series - Alfaholics

Stant Radiator Cap – With Lever

£25.00 GBP (ex vat)

COO49

A faulty radiator cap can cause your car to boil-over at a lower temperature. Test or replace the coolant cap when servicing the cooling system. The Lev-R-Vent? features a patented lever release to safely release pressure for quicker cooling. Meets Original Equipment specifications. Made from premium materials. Designed to function on open cooling systems and overflow reservoir type systems.

High Pressure Competition Radiator Cap - Cooling - 105/115 Series - Alfaholics

High Pressure Competition Radiator Cap

£19.95 GBP (ex vat)

RCE1005/5

20 PSI chrome radiator cap with period styling.

Spal 12″ Electric Fan - Cooling - 105/115 Series - Alfaholics

Spal 12″ Electric Fan

£90.00 - £130.00 GBP (ex vat)

RCE1008/7

12" premium quality curved blade fan with waterproof motor, low noise, long life

Spal 10″ Electric Fan - Cooling - 105/115 Series - Alfaholics

Spal 10″ Electric Fan

£85.00 - £120.00 GBP (ex vat)

RCE1008/5

10" premium quality curved blade fan with waterproof motor, low noise, long life

Oil Cooler Kit - Cooling - 105/115 Series - Alfaholics

Oil Cooler Kit

Premium quality oil cooler kit to fit Alfas fitted with Nord or Twinspark engines. Includes sandwich plate for spin-on type oil filter take-off, pre-cut oil pipe lines in either stainless steel braided or normal rubber hoses, oil cooler and fitting bolts. Our recommendations. The basic 13 row 115 mm cooler will be good for fast road use but for the small extra cost the 235 mm will be better, most cars will take a 235mm cooler but if space is a problem for you the 115 may be all that will fit! For trackday and race use, go for the 13 row 235 or in extreme hot climate or hard racing, the 16 row 235 is the one to go for. The 13 row cooler is around 10cm tall, the 16 row is around 12cm tall.   For road cars with late engines, it’s worth going for the thermostatic take off plate, this will ensure that your oil gets up to temperature even if the weather is very cold. If you have an older engine then there’s no option for this so you may want to engineer in a blanking plate so you can cover the cooler when you don’t really need it! Braided hoses look nicer and are more resistance to damage than rubber, they’re also less prone to kinking during fitting so like the larger coolers, worth the small extra cost.

Alfaholics Ti Super-R Oil Cooler - Cooling - 105/115 Series - Alfaholics

Alfaholics Ti Super-R Oil Cooler

£350.00 GBP (ex vat)

GTA-R 22

Alfaholics production, beautiful quality aluminium fabricated oil cooler. Originally designed for Andrew’s 216BHP Alfaholics TI Super-R. Suitable for fitment to all Giulia Super & Ti.

Thermostatic Sandwich Plate for Spin-on oil filter blocks - Cooling - 105/115 Series - Alfaholics

Thermostatic Sandwich Plate for Spin-on oil filter blocks

£60.00 GBP (ex vat)

RCE4018

Perfect for use with fast road and trackday engines to allow oil to heat up fully before oil cooler becomes operational. Not necessary for racing engines. Swap this version of sandwich plate into your trackday oil cooler kit for an additional £25.00.

Oil Cooler Sandwich Plate for early cartridge type oil filter - Cooling - 105/115 Series - Alfaholics

Oil Cooler Sandwich Plate for early cartridge type oil filter

£75.90 GBP (ex vat)

RCE4017

To fit early 105s with cartridge type oil filter, early 1300/1600 and all 1750. Includes long studs for block and a choice of 1/2" BSP or -10 JIC fittings for pipes. Swap this version of sandwich plate into above oil cooler kit for £12

Remote Oil Filter Adaptor – Early Cartridge Oil Filter Engines - Cooling - 105/115 Series - Alfaholics

Remote Oil Filter Adaptor – Early Cartridge Oil Filter Engines

£49.50 GBP (ex vat)

RCE4019/4

Alfaholics production, CNC machined from billet aluminium and supplied with -10 JIC or 1/2 BSP oil cooler pipe fittings.

Remote Filter Housing - Cooling - 105/115 Series - Alfaholics

Remote Filter Housing

£37.95 GBP (ex vat)

RCE4019/2

Remote filter housing

Remote Filter Take Off Plate - Cooling - 105/115 Series - Alfaholics

Remote Filter Take Off Plate

£25.00 GBP (ex vat)

RCE4019/1

Remote Filter Take Off Plate for 200 screw on type

Lightweight Competition Heater - Cooling - 105/115 Series - Alfaholics

Lightweight Competition Heater

£150.00 GBP (ex vat)

RCE1008/3

Weighs an amazingly little 1.2KG. Perfect solution for trackday and rally/race cars to save significant weight but retain interior heating. Can be fixed into the original position under the dash and plumbed with an early type heater valve through original slide controller. 4 outlets match early heater type air plumbing, or can be run in late heater cars to have 2 exits blowing in foot wells and 2 exits adapted to go to dash vents.
