Adjustable Dual Circuit Brake Balance Box (RHD Floor Pedal)

£625.00 GBP (ex vat)

RCE2006 | RCE2006/6PT

Add to Quote

Upgrade Options

Product Information

As used on all our GTA-R builds. The brake balance box is CNC machined from billet aluminium.

To fit RHD only, this box directly replaces the standard brake master cylinder whether it is a single or dual circuit set up. It bolts onto the outside of the chassis leg using the standard fitment points, no modification is necessary. The kit is supplied with the optimum sized master cylinders depending on whether the car is fitted with Dunlop, ATE, 4-Pot or 6-Pot brakes.

It uses a pair of Girling race brake master cylinders with an adjustable balance bar allowing the front to rear brake bias to be very finely adjusted. A remote bias adjuster cable can be screwed onto the end of the bar to allow the bias to be adjusted from the cockpit whilst driving, great for track day and race use!

This kit uses a pair of race master cylinders, giving the ability to optimise the bore diameters, allowing the servos to be removed whilst still retaining optimum power. By not using the servos you get a dramatic improvement in the feel of the brakes allowing for far better modulation of brake pressure resulting in less chance of locking the wheels under heavy braking.

This system is a significant cost saving due to not having expensive servos and reproduction Alfa master cylinders.

This pedal box is cheaper to fit than a reproduction RHD dual circuit master cylinder and a pair of servos! Those in the process of building fast road, track day or race cars from scratch have the unique opportunity to simultaneously improve the brake system.

A spherical joint is fitted in the front of the box where the pedal rod enters the box to ensure perfect free movement of the rod.



What’s Included

  • 2x Girling brake master cylinders
  • Banjos for hydraulic fittings

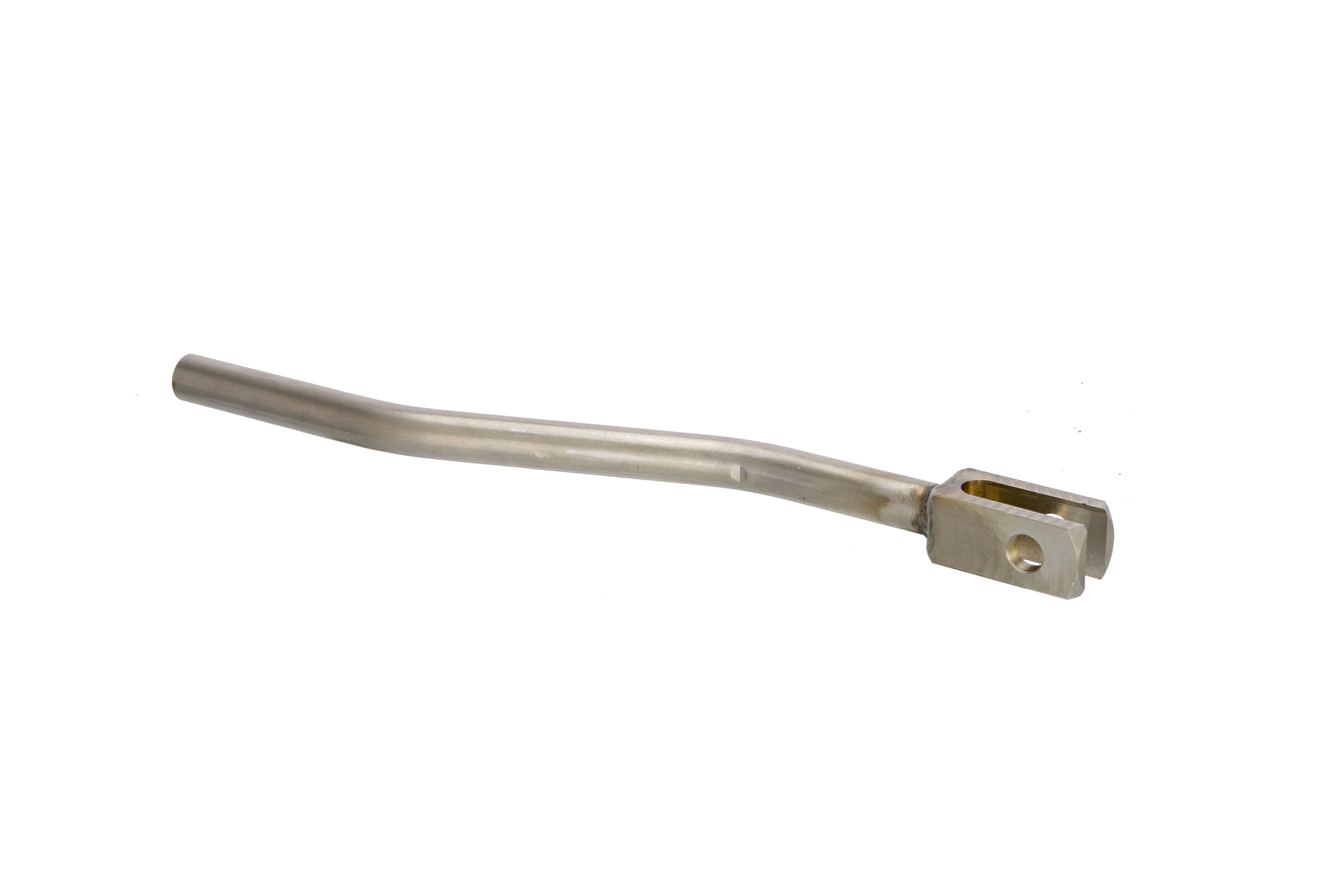

  • 1x Brake push rod
  • 1x brake balance bar
  • 1x Spherical bearing
  • 1x Brake box lid
  • 4x Zinc plated cap head bolts

Technical Details

Brand Alfaholics
Models All RHD 105 series cars
TreatmentHard anodised (brake box)
Material 6082 T6 billet aluminium (brake box)
303 Stainless steel (push rod)
Aluminium (brake cylinders)
Weight 2.6kg
