Steering race parts for 105 Series Alfa Romeo

Alfaholics Power Steering Conversion - 105 / 115

Alfaholics Power Steering Conversion – 105 / 115

£5,995.00 GBP (ex vat)

RCE9026/1

Fits into the original steering column and is concealed from view under the dashboard. Built using a new steering box.

The system is speed-sensitive (by taking a pulse from the speedo cable) and is therefore able to provide increased assistance at low speeds when parking and manoeuvring. As the road speed increases, the assistance gradually reduces until it reaches a minimal level by 30mph/50kmh, so as to retain the lovely Alfa steering feel. Torque sensors in the steering column continually feed data to the electronic control unit in order to apply the optimum level of assistance, according to the road speed and steering input from the driver. There is also a safeguard built into the system whereby assistance is limited if the road wheel encounters a solid object, such as being parked up against a high kerb, thereby preventing damage to the steering box.

We originally developed this system for the Spider-R V6 project and were so impressed with the results is an option for all GTA-R builds.

The conversion is carried out using a new steering box and in conjunction with a full steering box rebuild using our CNC machined billet casing for additional strength. This is particularly important, given the well known cracking issues that affect the cast aluminium casings. We require your aluminium column switch mounting shroud in order to complete the conversion and mount the motor. When refitting, a small modification is required to be made to the box section under the dash to clear the motor, so the installation should be carried out by a competent engineer.

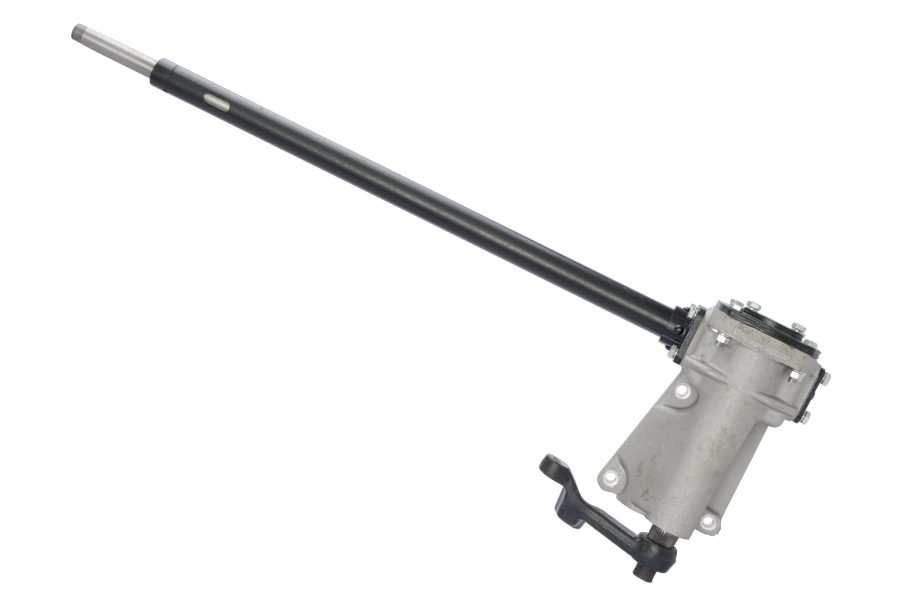

Alfaholics Steering Box & Casing (LHD Burman Type)

Alfaholics Steering Box & Casing (LHD Burman Type)

£3,075.00 GBP (ex vat)

STEER/COMPB

Steering box built with our billet aluminium steering box casing.

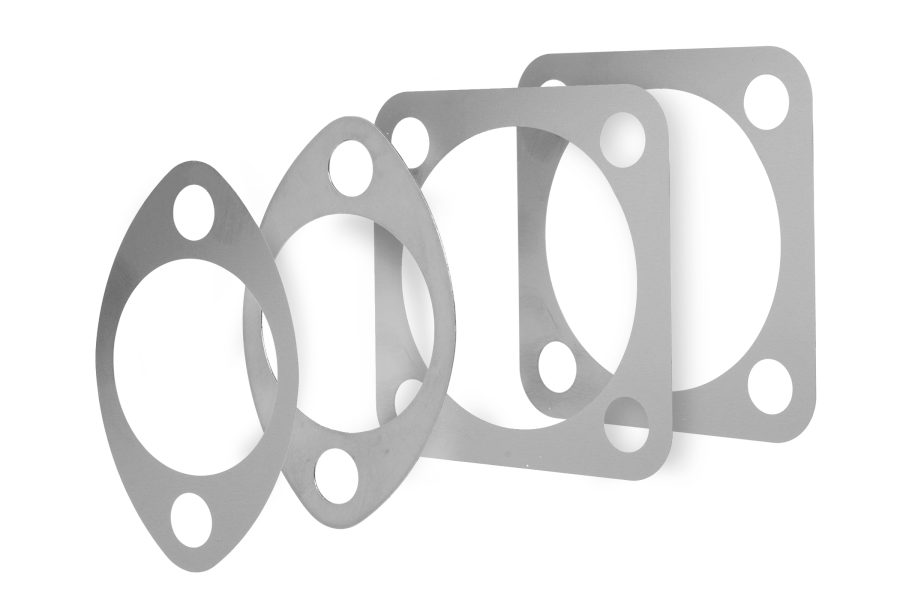

All brand new internals, not reconditioned, comes complete with new drop arm, bottom nut, key way, spare shims to adjust the box with in the future. Steering column length of 695mm from bottom of shaft to top of thread.

Only this length available, for cars requiring a longer shaft length you will not be able to use a factory steering wheel and will need to use our premium billet boss adaptor with aftermarket bolt on steering wheel to ensure the appropriate clearance to the plastic column shroud. Also ideal to use this box as the basis for our electric power steering conversion.

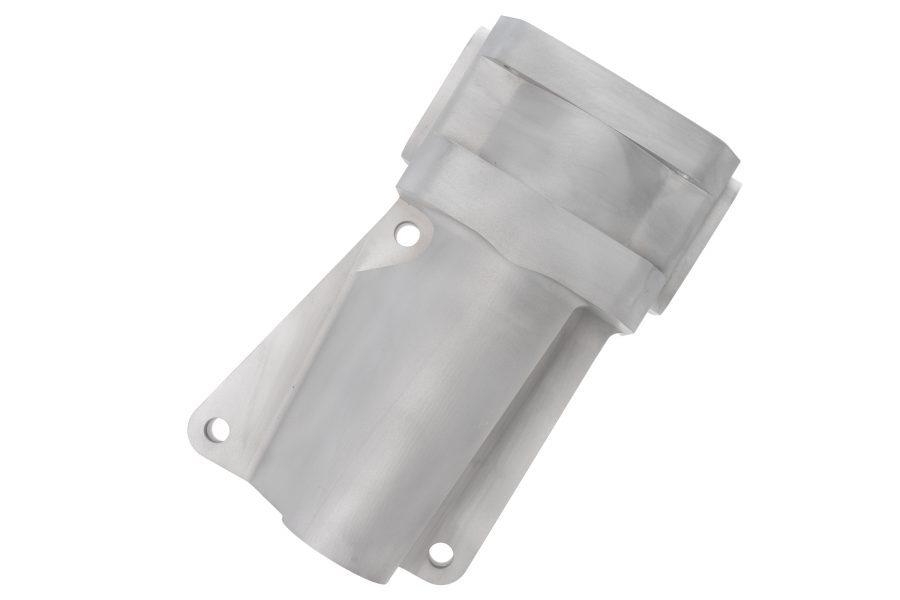

Aluminium Steering Box Casing (LHD Burman Type)

Aluminium Steering Box Casing (LHD Burman Type)

£875.00 GBP (ex vat)

SUS417

CAD designed and manufactured replacement case machined from aerospace grade aluminium. The quality of material makes the case extremely strong and durable.

LHD Burman steering box cases are renowned for cracking. Original items were manufactured as a casting, resulting in imperfections which introduced weakness into the material. The force exerted on these old castings make them vulnerable to cracking and in some cases steering failure.

Over 75% of steering boxes we have been asked to rebuild have had cracked cases and are unserviceable.

Suitable to use when you have a cracked steering box it’s a worthwhile upgrade to install on all fast road, track day and race cars to avoid the failures associated with original cases.

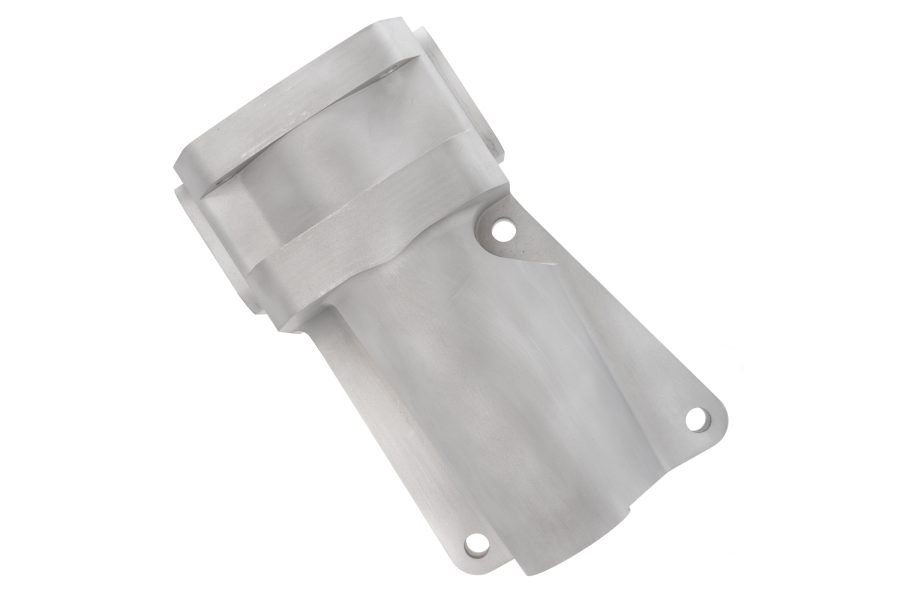

Aluminium Steering Box Casing (RHD Burman Type)

Aluminium Steering Box Casing (RHD Burman Type)

£875.00 GBP (ex vat)

SUS419

Following the success of the LHD billet steering box case we have now produced a RHD version, CNC machined from billet aerospace grade aluminium.

RHD Burman steering box cases are renowned for cracking. Original items were manufactured as a casting, resulting in imperfections which introduced weakness into the material. The force exerted on these old castings make them vulnerable to cracking and in some cases steering failure.

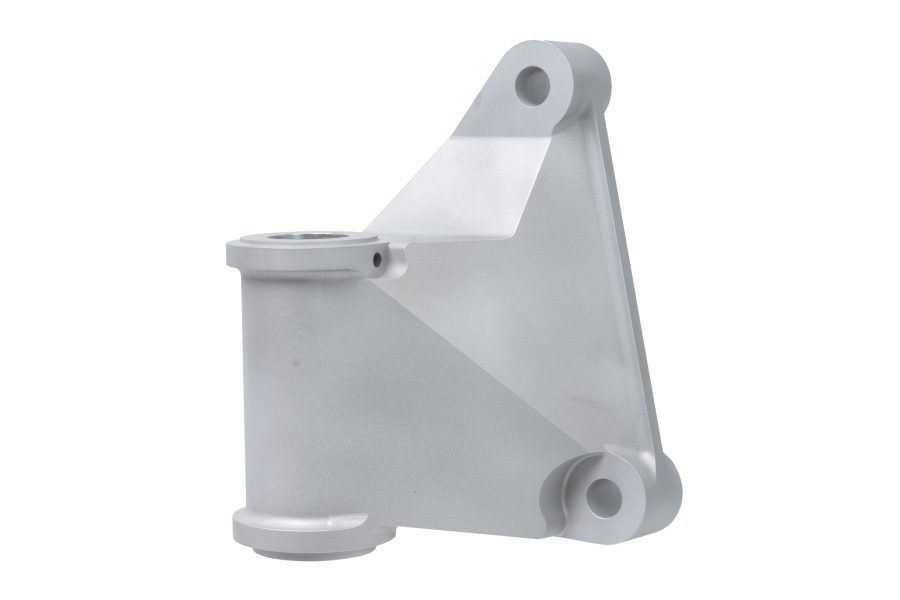

Alfaholics Idler Box Casing (Aluminium) - LHD

Alfaholics Idler Box Casing (Aluminium) – LHD

£425.00 GBP (ex vat)

SUS417/1

Following the huge success of our billet aluminium steering box casing, we have made this same style of casing for the idler box, CNC machined from billet 7000 series aluminium.

Can be supplied on its own or with idler repair kit as linked in related products.

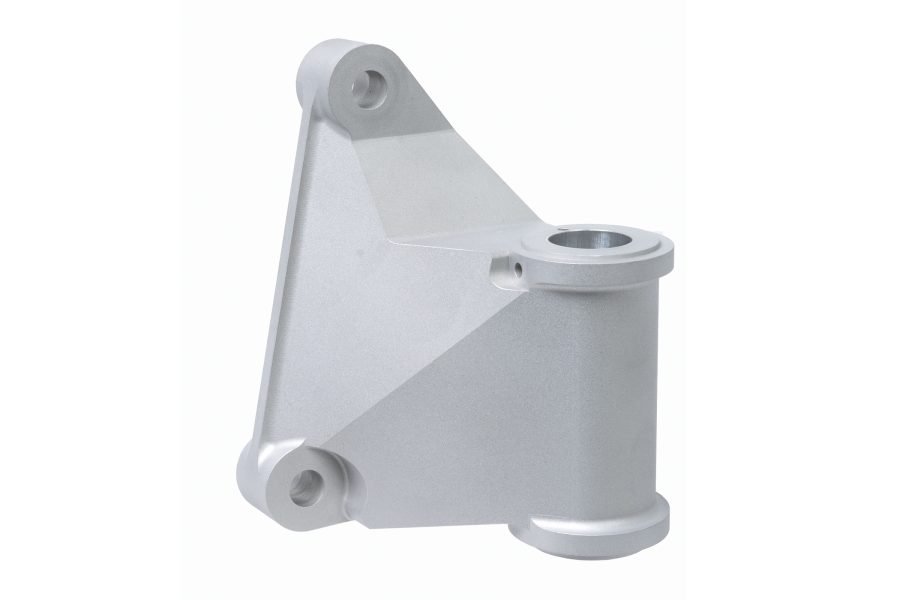

Alfaholics Idler Box Casing (Aluminium) - RHD

Alfaholics Idler Box Casing (Aluminium) – RHD

£425.00 GBP (ex vat)

SUS418/1

Following the success of our billet aluminium steering box casing, we have made this same style of casing for the idler box, CNC machined from billet 7000 series aluminium.

Can be supplied on its own or with idler repair kit.

GTA-R Titanium Wheel Hub (Pair)

GTA-R Titanium Wheel Hub (Pair)

£1,995.00 GBP (ex vat)

GTAR/WBTI

CNC machined billet titanium wheel hub set for all cars with ‘late’ ATE brakes 1968 and onwards.

They feature additional pocketing and a reduced diameter to save even further weight and represent a 2.4kg weight saving per pair.

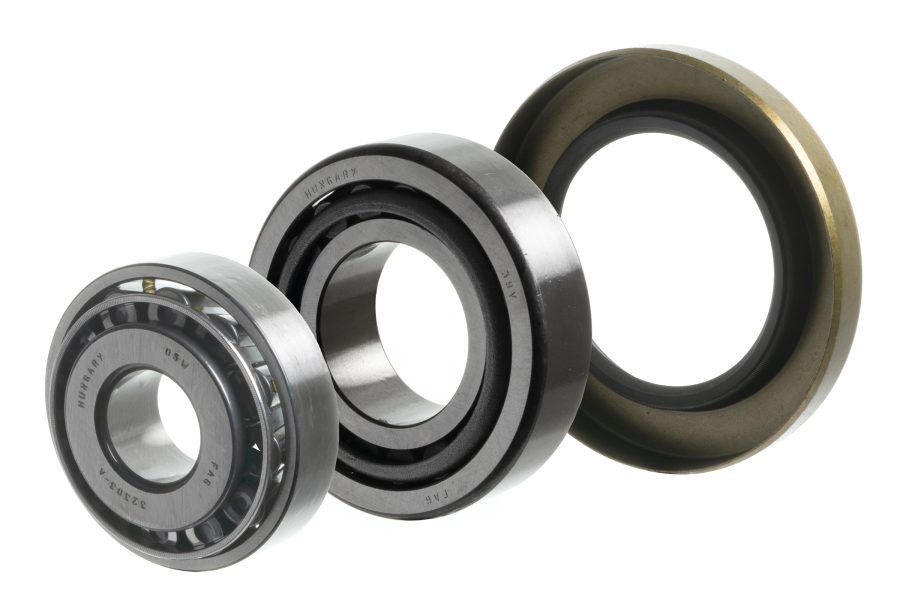

Front Wheel Bearing Kit

Front Wheel Bearing Kit

£45.00 GBP (ex vat)

SUS135/1

The outer front wheel bearing on 105 series cars is very small in design for its job. It is exposed to extreme temperatures and forces and usually needs re-packing every race. Until now, the wheel bearings available have not been good enough quality to last more than a couple of races.

The quality of these bearings increases the life of the bearings under race & track day conditions.

Kit includes one inner bearing, one outer bearing and a dust seal.

As used in the Alfaholics GTA-R builds.

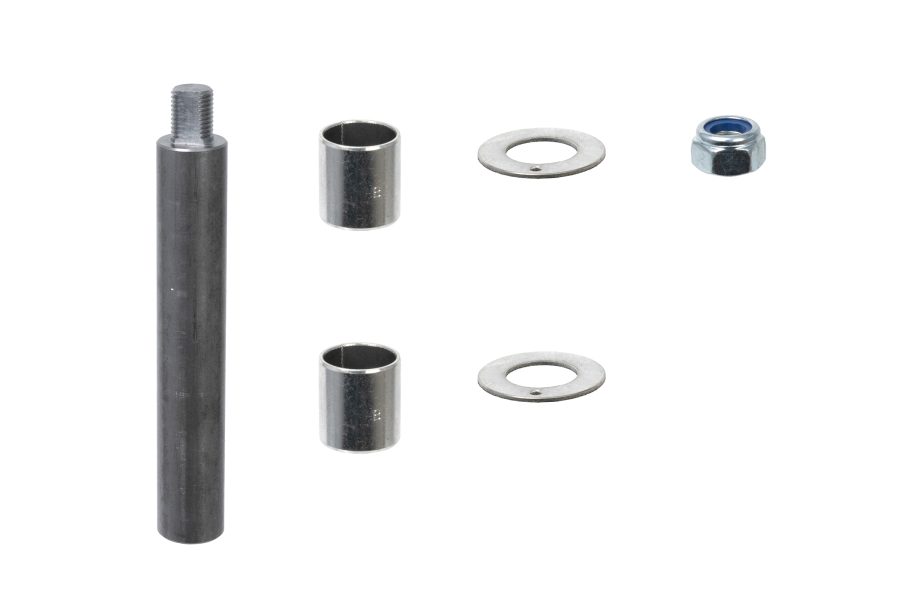

Steering Idler Repair Kit

Steering Idler Repair Kit

£32.00 GBP (ex vat)

SUS405

Steering idler repair kit to suit all 105 steering boxes.

Alfaholics Quick Steering Arms

Alfaholics Quick Steering Arms

£225.00 GBP (ex vat)

RCE5013

Fabricated from EN8 medium carbon steel. Exquisite jig used to ensure accuracy of bend. Finished in black powder coating.

These steering arms increase the ratio of your steering to GTA specification, requiring smaller steering inputs.

Alfaholics Quick Steering Arms (Aluminium)

Alfaholics Quick Steering Arms (Aluminium)

£440.00 GBP (ex vat)

RCE5013/1

CNC machined from military grade 7000 billet aluminium.

These straight arms are suitable for cars with modified front suspension geometry such as those using the Alfaholics Geometry Kit or Alfaholics Tubular Wishbones.

These arms are 70% lighter than steel quick steering arms! As used on Max’s GTA Replica and the Alfaholics 2L Sprint GT racer.

Alfaholics Lightweight Lockstops

Alfaholics Lightweight Lockstops

£75.00 GBP (ex vat)

RCE5013/2

Pair of lightweight lock stops fabricated from high-grade aluminium and drilled for extra weight saving. Finished in quality black powder coating.

Lemforder Track Rod Kit

Lemforder Track Rod Kit

£250.00 GBP (ex vat)

SUS413/4

Complete set of steering track rods with Lemforder track rod ends.

Alfaholics Rose Jointed Track Rod Kit

Alfaholics Rose Jointed Track Rod Kit

£495.00 GBP (ex vat)

RCE5004

Convert your race car away from heavy Alfa Romeo trackrods with clumsy ball joints that always make tracking the car accurately difficult.

Fit this rose-jointed trackrod allows for much finer adjustment of the tracking, enabling you to dial out any bumpsteer. Bumpsteer occurs on all 105s as soon as you lower the car or modify the front geometry. The kit comprises 2 short and 1 long powder-coated CDS track rods, with a full set of rose joints, CNC machined taper pins for steering and drop arms and a range of spacers to get you started in dialing out bumpsteer.

Momo Prototipo Heritage Steering Wheel

Momo Prototipo Heritage Steering Wheel

£215.00 GBP (ex vat)

MOMO6

Legendary black spoke Prototipo steering wheel with a distressed leather rim in smooth grain finish and with the original MOMO logo on the lower spoke.

This brings the style & finish closer to that originally manufactured by Momo for Autodelta.

Momo California Heritage Steering Wheel

Momo California Heritage Steering Wheel

£273.00 GBP (ex vat)

MOMO5

Steering wheel by Momo styled on the legendary GTA Hellebore wheel and with a black leather rim to give comfort and grip.

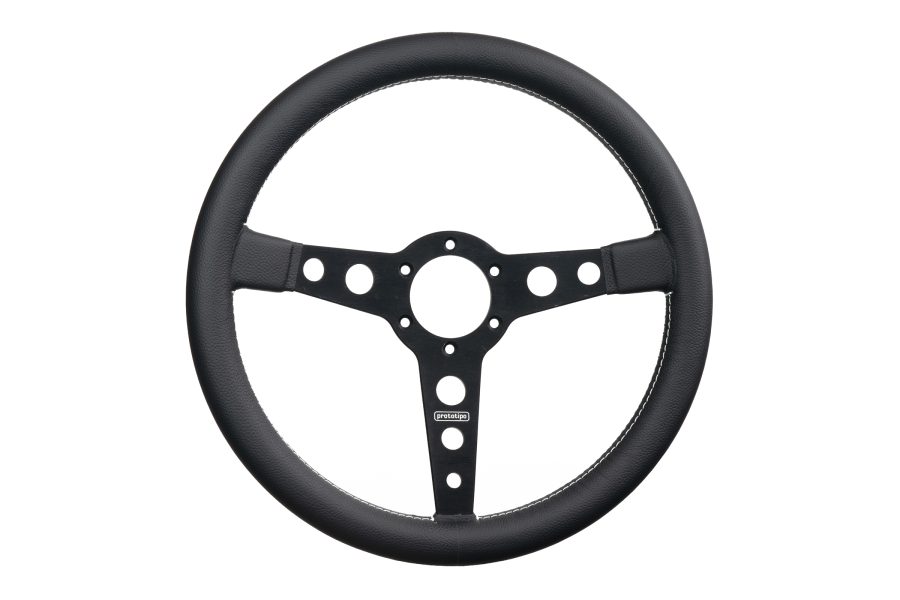

Momo Prototipo Steering Wheel

Momo Prototipo Steering Wheel

£199.99 GBP (ex vat)

MOMO1

350mm diameter genuine Momo Prototipo steering wheel.

Nardi Race Steering Wheel

Nardi Race Steering Wheel

£250.00 GBP (ex vat)

RCE7006

Nardi 330mm race steering wheel. Perforated leather  bound wheel, deep dished.

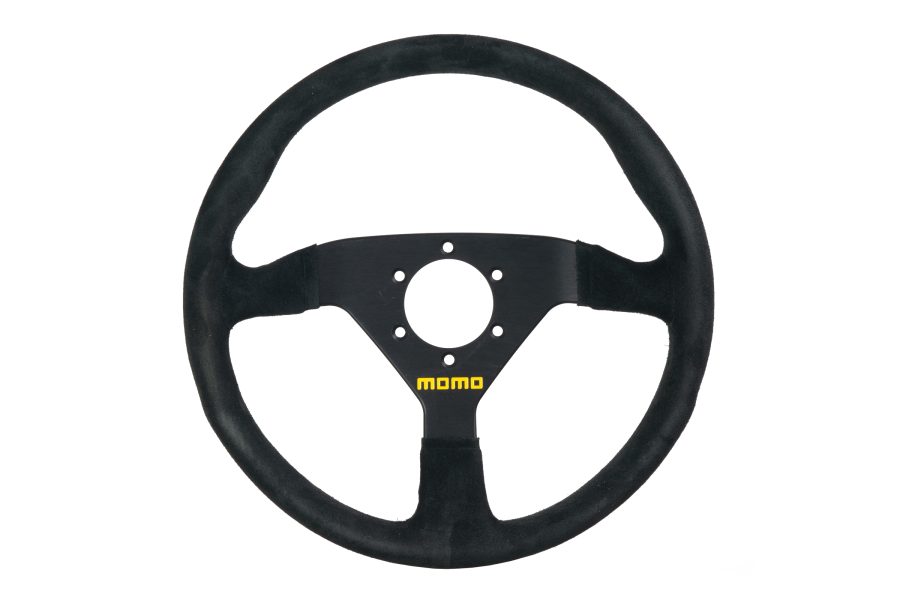

Momo Race Steering Wheel

Momo Race Steering Wheel

£185.00 – £199.95 GBP (ex vat)

MOMO2 | MOMO3

Selected for its unrivalled ergonomic grip design, shape and size.

As used exclusively in Alfaholics performance vehicles.

Use with Alfaholics steering column extender for the ultimate driving position.

Please state if you require a Momo boss adaptor and the model / year of your car for this.

Alfaholics Nardi / Momo Hub Adapter Premium - Early

Alfaholics Nardi / Momo Hub Adapter Premium – Early

£75.00 GBP (ex vat)

ACC0002/1

CNC machined from billet aluminium with absolute tolerances resulting in correct alignment on the taper shaft and keyway. Finished in a black anodised finish complete with plated fixing bolts for the steering wheel.

Suitable for all Step-fronts, & models with flat OE steering wheels

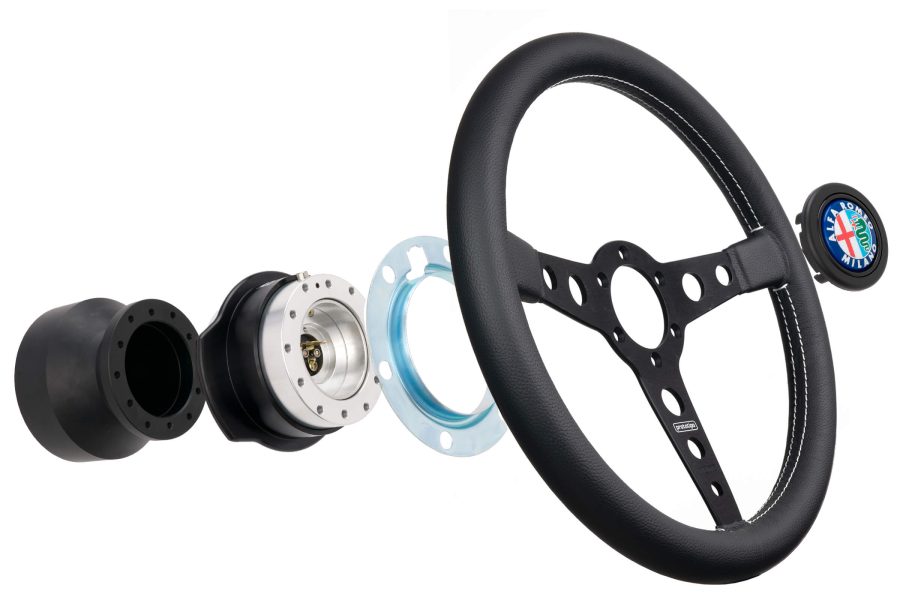

Quick Release Steering Boss

Quick Release Steering Boss

£150.00 GBP (ex vat)

RCE7007/2

Quick release steering boss to allow instant removal of steering wheel.

Retains contacts for the horn push allowing retention of the horn on the steering wheel.

Compatible with all aftermarket Momo/Nardo Steering wheels.
