Fuel race parts for 105 Series Alfa Romeo

Alfaholics 55L Rally / Track Day Fuel Tank

Alfaholics 55L Rally / Track Day Fuel Tank

£850.00 GBP (ex vat)

RCE1010/IJ

Designed with a -6 JIC fuel outlet and a -6 JIC swirled fuel return (with a blanking cap included). This tank can be used in both a carburettored and fuel injected application and indeed the ability to change from one to the other in the future should you wish.

We have also added an additional air breather pipe in the neck area to allow faster fuel filling.

Filled with race grade baffling foam. Fits centrally between shock absorber mounts for optimum weight distribution and safety.

By designing the fuel tank with the collector pot on the left, it allows the spare wheel well to be used, making it ideal for rally and track day cars. This has the added advantage of allowing you to use the bottom half of an original fuel tank to mount your fuel pump and battery, if boot mounted.

All exposed parts can be separated away from tools, bags, helmets and other items you want to store in the boot. It also greatly improves the under floor air flow. We have observed just blanking the old fuel tank hole creates a trap for air passing under the car that not only slows the car but also deforms the shape of the back panel over time.

Manufactured from customer request in track day & rally markets. This tank resolves the original boot floor flex from up to 50kg of fuel lifting it up and down ending in stress cracks.

Supplied complete with one way breather valve, remote filler, neck pipe, Jubilee clips and special anti-vibration rubber mounting pads.

It is fitted with a VDO fitment ring allowing a VDO sender to be fitted.



Alfaholics 55L Rally / Track Day Fuel Tank - Giulia Saloon / Spider

Alfaholics 55L Rally / Track Day Fuel Tank – Giulia Saloon / Spider

£850.00 GBP (ex vat)

RCE1010S/IJ

The original and best foam filled aluminium tank for 105 Series Alfa Romeo – not to be confused with inferior copies! Made exclusively for Alfaholics to the highest standard of design and manufacture and filled with race grade baffling foam. Fits centrally between shock absorber mounts for optimum weight distribution and safety.

By designing the fuel tank with the collector pot on the left, it allows the spare wheel well to be used, making it ideal for rally and track day cars. This has the added advantage of allowing you to use the bottom half of an original fuel tank to mount your fuel pump and battery, if boot mounted.

All exposed parts can be separated away from tools, bags, helmets and other items you want to store in the boot. It also greatly improves the under floor air flow. We have observed just blanking the old fuel tank hole creates a trap for air passing under the car that not only slows the car but also deforms the shape of the back panel over time.

Manufactured from customer request in track day & rally markets. This tank resolves the original boot floor flex from up to 50kg of fuel lifting it up and down ending in stress cracks.

Supplied complete with one way breather valve, remote filler, neck pipe, Jubilee clips and special anti-vibration rubber mounting pads.

It is fitted with a VDO fitment ring allowing a VDO sender to be fitted.

Alfaholics 25L Sprint Race Fuel Tank

Alfaholics 25L Sprint Race Fuel Tank

£650.00 GBP (ex vat)

RCE1009

This 25L tank fits is the spare wheel well of all 105 & 116 series cars, featuring a domed base.

This makes it superb for LHD cars to even out the weight distribution in the car, allowing it to be corner weighted with far greater precision.

Alfaholics 55L Fuel Safety Cell (Spare Wheel Well Fitment)

Alfaholics 55L Fuel Safety Cell (Spare Wheel Well Fitment)

POA.

RCE1011/1

55L foam filled Kevlar safety cell approved to FIA FT3-1999 Standard.

To fit our flat bottomed aluminium spare wheel well which is available separately. This cell was designed using CAD software to map the shape of our wheel well exactly.

Using our deep flat bottomed well it has been possible to get a far greater capacity than is typically possible into this space whilst finishing flush with the boot floor for ease of installation and maximising the centre of gravity benefits.

The cell comes complete with FIA safety foam, internal collectors with a twin check valve trap door system, internal electric fuel pump and -6 plumbing which lead to a -6 fuel outlet, aero filler cap & VDO dip pipe sender.





Alfaholics 100L Fuel Safety Cell (FIA Approved) - 105 Coupe & Saloon

Alfaholics 100L Fuel Safety Cell (FIA Approved) – 105 Coupe & Saloon

POA.

RCE1011

100L foam filled kevlar safety cell. Approved to FIA FT3-1999 Standard.

CAD designed to completely map the inside boot area of a 105 series Alfa Romeo. From this CAD data we then designed the cell to sit in the boot floor, shelf and spare wheel area with the tightest fit. The layout and shape of the cell has been optimised for optimum weight distribution and practicality whilst remaining in the constraints of the volume of the cell and the shape of the boot area.

The tank sits centrally between the shock absorber turrets, keeping the weight central and as far forward as possible, whilst bringing the tank back onto the boot floor and down into 1/4 of the spare wheel well, helped to keep the weight as low as possible too. It is supplied with a separate laser cut aluminium cover for safety, extra location and to comply with race regulations.

The cell comes complete with FIA safety foam, internal collectors with a twin check valve trap door system, internal electric fuel pump and -6 plumbing which lead to a -6 fuel outlet, aero filler cap, VDO dip pipe sender & aluminium cover.

This cell is extremely lightweight so if you compete in shorter distance races as well as endurance races you are not carrying excess weight. We was first used this cell in the 6 Hours of Spa where we won the Eau Rouge Trophy at first attempt; the cars handling was as crisp with 100L of fuel as it was with 15L at the end of each session. The careful thought that went into the positioning of the tank was crucial in helping us win as it allowed us to push so hard right from the start of each session with over 85kg of fuel in the boot.



Alfaholics Carbon Fibre Lower 1/2 Fuel Tank

Alfaholics Carbon Fibre Lower 1/2 Fuel Tank

£950.00 GBP (ex vat)

RCE8156-C

Carbon fibre version of our 1/2 tank, used for mounting fuel pump, filter and regulator discretely in the boot by the fuel tank sump.

The carbon fibre 1/2 tank represents a 500g weight saving over our fibreglass version.

As used in our latest GTA-R builds.


Fibreglass 1/2 Fuel Tank

Fibreglass 1/2 Fuel Tank

£250.00 GBP (ex vat)

RCE8156

Lightweight 1/2 tank, perfect for use with our 55L fuel tank above and only weighing in at 1.4kg.

Can be used as a sump for mounting fuel pump, filter & pressure regulator and also acts to stop air getting trapped in the rear panel and slowing the car down on fast straights.

GTA-R Fuel Injection Pump Assembly

GTA-R Fuel Injection Pump Assembly

£365.00 GBP (ex vat)

FULGTAR2

Complete kit for plumbing throttle body fuel injection systems; fuel pump, pump mount, fuel filter and adjustable fuel pressure regulator.

This kit can be used in conjunction with our billet Twin Spark throttle body assembly, or other aftermarket kits.

Each component is fitted with -6 JIC unions to allow the use of race quality screw fit fuel lines. The regulator has a 3rd port for plumbing directly back to the tank as the return line, thus allowing the fuel rail to be single ended to save weight and reduce fuel line plumbing length.

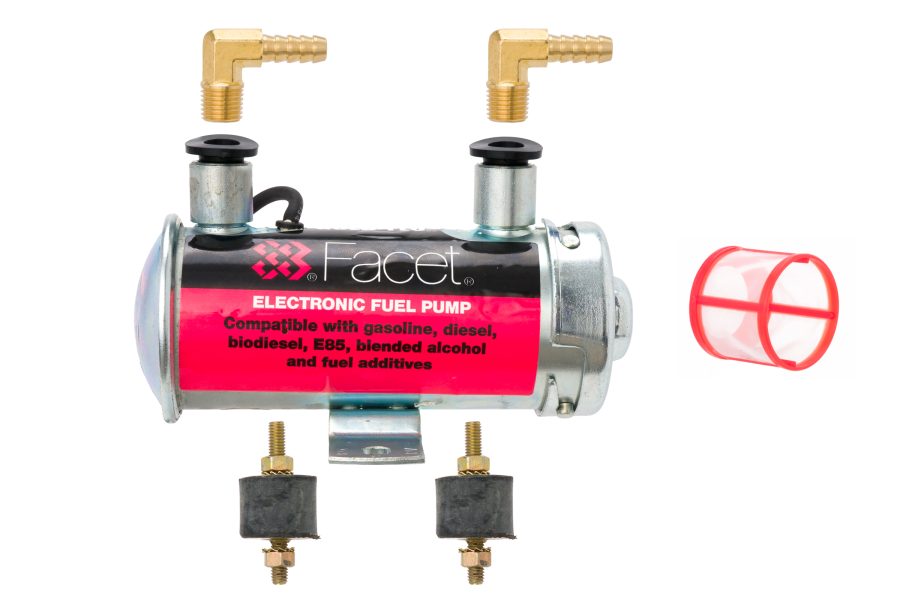

Facet Red Top Electric Fuel Pump

Facet Red Top Electric Fuel Pump

£110.00 GBP (ex vat)

RCE4022

Works specification, for naturally aspirated engines fitted with carburettors.

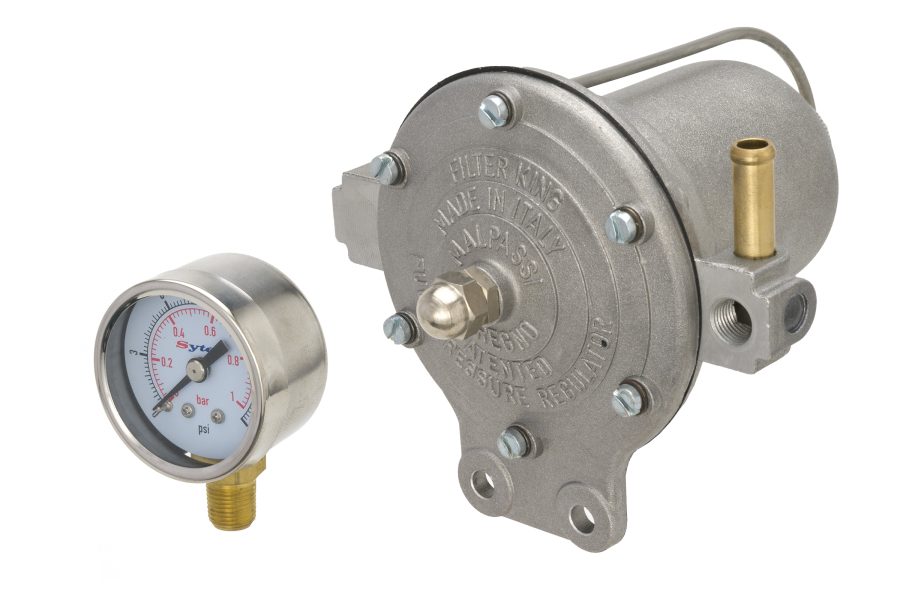

Fuel Pressure Regulator & Filter

Fuel Pressure Regulator & Filter

£85.00 GBP (ex vat)

RCE4021

The ultimate fuel pressure regulator. This integrated fuel pressure regulator and fuel filter features a removable pressure gauge enabling accurate fuel pressure metering. It features an aluminium bowl for increased safety and filters the fuel without restriction.

Gauge removal recommended when pressure set.

Filter King Element - Large Filter

Filter King Element – Large Filter

£5.50 GBP (ex vat)

RCE4021/1

Replacement fuel filter element for Filter King fuel pressure regulator.

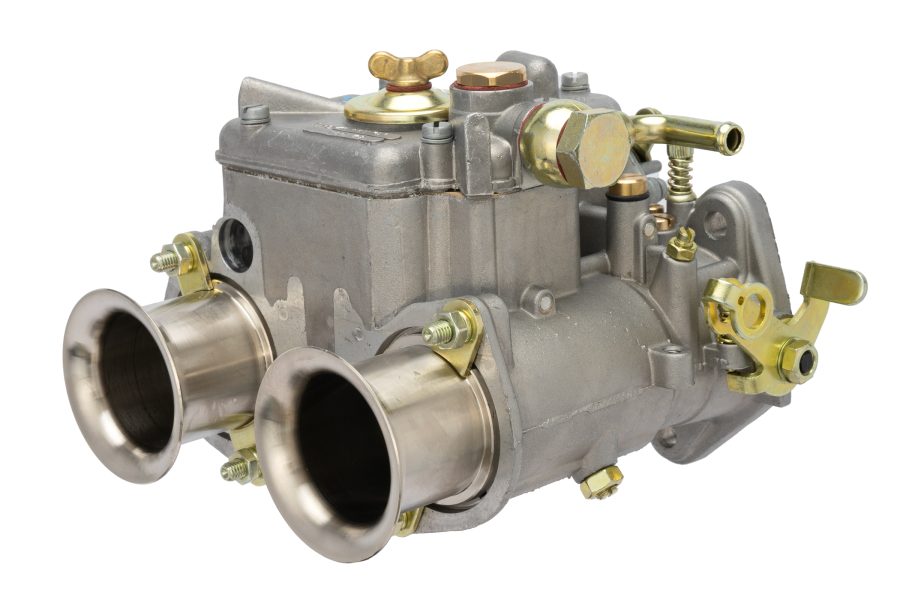

Weber 45 DCOE Carburettor

Weber 45 DCOE Carburettor

£399.00 GBP (ex vat)

FUL009

The Weber 45 DCOE type 152 is the universal, performance 45 DCOE, infinitely tune-able, and possibly the most popular Weber carburettor for engine tuners, high-performance engine builders, and classic/sports car restorers.

The carburettors have a cable-operated choke fitted and come jetted well as a base point for 2.0L engines however, we recommend that you have the car set up and tuned on a rolling road to ensure optimal performance.

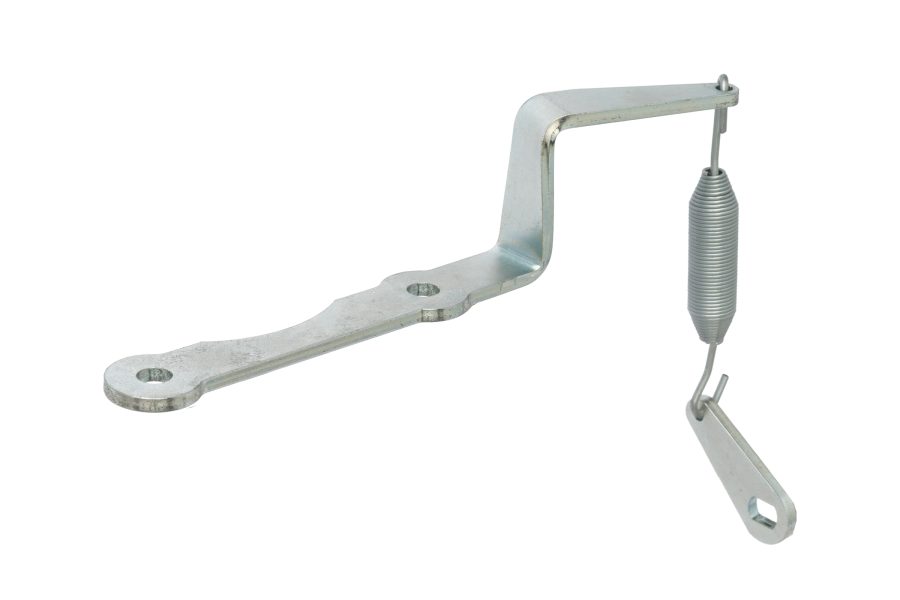

Alfaholics Weber Throttle Return Spring Kit

Alfaholics Weber Throttle Return Spring Kit

£17.95 GBP (ex vat)

FUL009/1

Laser cut and jig profiled external throttle return spring.

Plating supplied with spring.

Direct fitment for all Weber carbs, easy modification to fit Dellorto.

Alfaholics Aluminium Carburettor Mounts

Alfaholics Aluminium Carburettor Mounts

£115.00 GBP (ex vat)

FUL2001 | FUL2002

Set of four CNC machined from billet aluminium carburettor mounts.

Fits 105 and 116 series cars up to 1985 with mounts that bolt into the manifold from behind.

The kit is supplied complete with studs pre-fitted in the mounts, ‘O’ rings, Thackery washers and nyloc nuts.

Over time, the original rubber mounts crack and leak air causing the mixture to weaken and consequently the engine to run roughly. Even the replacement reproduction rubber mounts have been known to crack prematurely and this has led us to manufacture these billet aluminium items for use as a direct replacement.

They use rubber ‘O’ rings to form a perfect seal between the mount and the carburettor. These rubber ‘O’ rings, together with Thackery washers (included in the kit), provide each carburettor with the necessary damping from engine vibrations.

This ‘O’ ring set-up is used widely for racing as it is considered to be the most effective and reliable method of carburettor mounting.

Aluminium Carburettor Mounts – Long Sport Version

Aluminium Carburettor Mounts – Long Sport Version

£175.00 GBP (ex vat)

FUL2003 | FUL2004

Set of four Alfaholics production CNC machined from billet aluminium.

Fits 105 and 116 series cars up to 1985 with mounts that bolt into the manifold from behind.

The kit is supplied complete with studs pre-fitted in the mounts, ‘O’ rings, Thackery washers and nyloc nuts.

Over time, the original rubber mounts crack and leak air causing the mixture to weaken and consequently the engine to run roughly. Even the replacement reproduction rubber mounts have been known to crack prematurely and this has led us to manufacture these superb billet aluminium items for use as a direct replacement.

They use premium quality rubber ‘O’ rings to form a perfect seal between the mount and the carburettor. These rubber ‘O’ rings, together with Thackery washers (included in the kit), provide each carburettor with the necessary damping from engine vibrations.

This ‘O’ ring set-up is used widely for racing as it is considered to be the most effective and reliable method of carburettor mounting.

Our long carb mount have an increased inlet tract length of 40mm for improved mid range torque and maximum power. These items are ported as standard for 45mm carburettors and use a separate bonded rubber Misab ‘O’ ring plate and as a result allow porting for up to 48mm carburettors. The kit is supplied complete with studs pre-fitted in the mounts, Misab ‘O’ ring plates, thackery washers and nyloc nuts. All Alfaholics road and racing engines are now supplied fitted with aluminium carburettor mounts as standard.

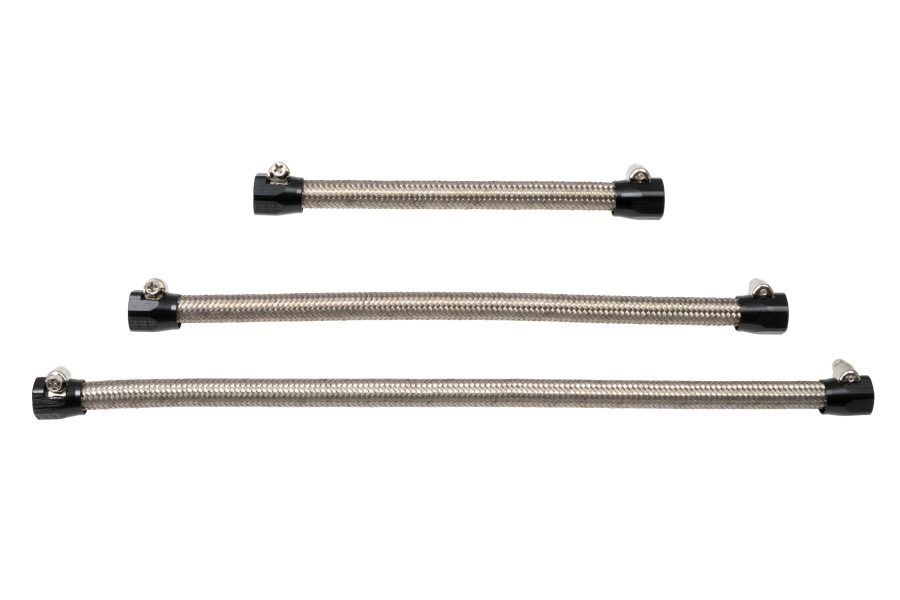

Alfaholics Braided Fuel Line Kit

Alfaholics Braided Fuel Line Kit

£72.00 GBP (ex vat)

FUL012

3 piece fuel line kit bespoke to Alfaholics.

For electric fuel pump equipped cars: Fits from fuel line on chassis leg to fuel pressure regulator / filter unit, from filter unit up to front carburettor and front carburettor to rear carburettor.

Pipercross Constant Radius Ram Pipes

Pipercross Constant Radius Ram Pipes

£79.95 GBP (ex vat)

FUL031 | FUL031/45

Pipercross Ram Pipe set recommended for use with the Alfaholics Single Filter.

45mm Weber Ram Pipe

45mm Weber Ram Pipe

£80.00 GBP (ex vat)

FUL031/1

CNC machined aluminium Ram Pipe for Weber 45mm, 26mm deep.

Mesh Ram Pipe Covers

Mesh Ram Pipe Covers

£29.95 GBP (ex vat)

| FUL031/245

Pair of mesh ram pipe covers to suit Weber carburettors.

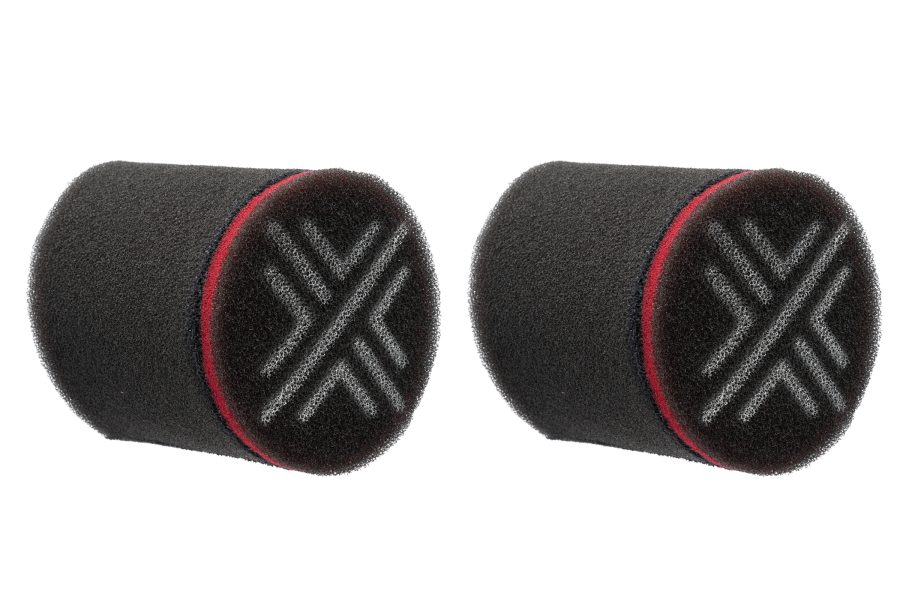

Pipercross Ram Pipe Socks

Pipercross Ram Pipe Socks

£24.00 GBP (ex vat)

FUL032

Pair of rampipe socks made to fit perfectly over individual trumpets to prevent valve seat damage from dust. Best suited for use with GTA curved ram pipes or similar.

The single sock is designed to fit the most popular forms of trumpets and rampipes. Always make sure that the distance between the top of the trumpet rampipe and the inside of the top of the filter is no less than 20mm.

GTA Curved Ram Pipe Set

GTA Curved Ram Pipe Set

£260.00 GBP (ex vat)

GTACURV

Reproduction Ram Pipe of the “trumpet” style used on GTA Corsa cars in period.

The trumpets can be set at any angle you wish to alter the ram effect of the air intake and come complete with a base plate and locking rings.

Alfaholics Pipercross Air Filter

Alfaholics Pipercross Air Filter

£39.95 GBP (ex vat)

ENG2057/2

This filter is an upgrade for the standard 105.48 air filter fitted to all 1968-1982 105 series cars. It fits directly into the standard airbox, improving airflow and therefore performance.

Foam filters take the idea of having larger holes and using oil to catch the dirt particles but use this in a different format. The Multi laminate reticulated foam uses layers of different specifications of foam, each layer catching different sized particles whilst allowing the air to flow freely. This gives foam an advantage over the cotton filter, although both filters flow well, the foam media allows the filter to still maintain airflow even at high levels of Dust loading.

The long-term benefit is that it won’t get blocked up or lose performance over time, meaning that the performance of the air filter is consistent from service to service, you maintain that brand new filter performance.

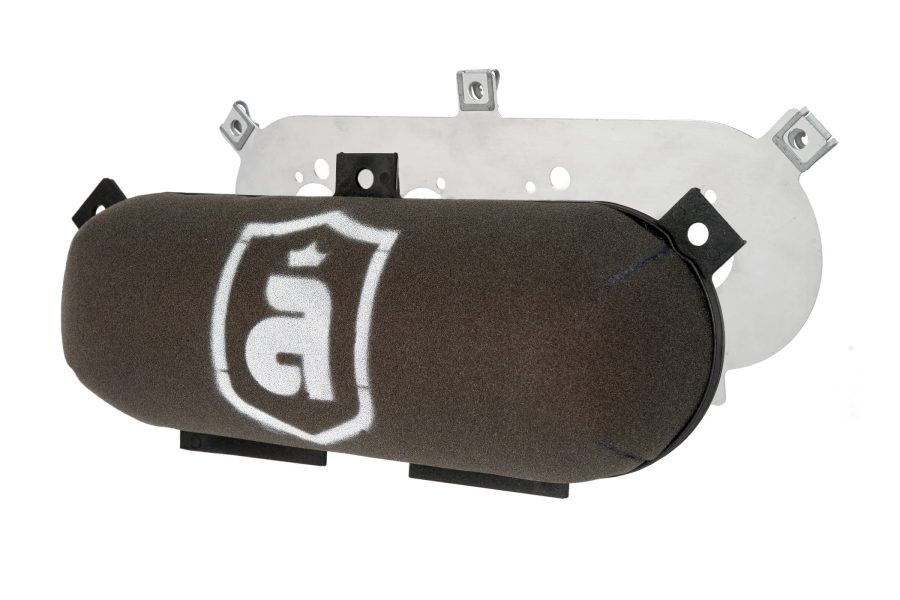

Alfaholics Pipercross Single Filter

Alfaholics Pipercross Single Filter

£88.00 – £95.00 GBP (ex vat)

FUL030 |

One-piece filter for both carbs with backing plate and integrated Gauze.

Due to clearance to the steering box casing on RHD cars and chassis leg, this filter will only fit cars that have 1750 or 2000cc engines installed. For 1300 & 1600 models, we recommend the fitment of the GTA curved ram pipes.

Foam filters take the idea of having larger holes and using oil to catch the dirt particles but use this in a different format. The Multi laminate reticulated foam uses layers of different specifications of foam, each layer catching different sized particles whilst allowing the air to flow freely. This gives foam an advantage over the cotton filter, although both filters flow well, the foam media allows the filter to still maintain airflow even at high levels of Dust loading.

The long-term benefit is that it won’t get blocked up or lose performance over time, meaning that the performance of the air filter is consistent from service to service, you maintain that brand new filter performance.

Pipercross Air Filter Service Kit

Pipercross Air Filter Service Kit

£12.50 GBP (ex vat)

SER-AIR

Dirt Retention oil is needed when re-applying the oil to your filter, this improves the filtration and performance of the filer, most of our filters are designed to work oiled.

The cleaning formula is the most ideal solution to clean the filter back and remove any old oil and dirt, this will help you get the most life out of your filter and offer the best service.

Only available for shipping via road freight, we cannot offer air freight shipping for this item.

Carb Mounting Kit

Carb Mounting Kit

£40.00 GBP (ex vat)

RCE4011/0

Reliable carb mounting kit to replace Thackery washers.

Kit comprises 4 aluminium gaskets with bonded rubber rings and a complete set of rubber buffers and metal cup washers for mounting the carbs.

Fuel Pump Mounting Rubber

Fuel Pump Mounting Rubber

£7.95 GBP (ex vat)

FUL005/4

Pair of fuel pump mounting rubbers used in series 4 Spider and Alfa Romeo 75. Using these rubbers will reduce the vibration and noise generated by the fuel pump. Can be used with all facet fuel pumps. Sold as a pair.

Accelerator Bush (Aluminium)

Accelerator Bush (Aluminium)

£12.00 GBP (ex vat)

FUL028/5

CNC machined billet aluminium replacement for accelerator bush.

Recommended for full race cars.

Aluminium Spare Wheel Well (Flat bottom) - GTA

Aluminium Spare Wheel Well (Flat bottom) – GTA

£1,050.00 GBP (ex vat)

GTA102/1

Deep wheel well as per 1300 GTA but with dome removed from bottom.

Useful to race cars where dome not required to carry spare wheel and especially useful for LHD cars wishing to mount a fuel cell into the spare wheel area.

Suitable for use with our Kevlar spare wheel well bag tank.
