Suspensions race parts for 101/750 Alfa Romeo

Alfaholics 101 Series Fast Road Handling Kit

Alfaholics 101 Series Fast Road Handling Kit

£550.00 GBP (ex vat)

SUS520

Developed in house at Alfaholics this kit is the ultimate road handling package for 101 Series cars.

We redesigned the standard weak anti-roll bar drop link system (known for its premature bush failure) to use the later 105 Series Spider ball jointed drop link system.

Spring rates to balance ride quality whilst improving handling balance.

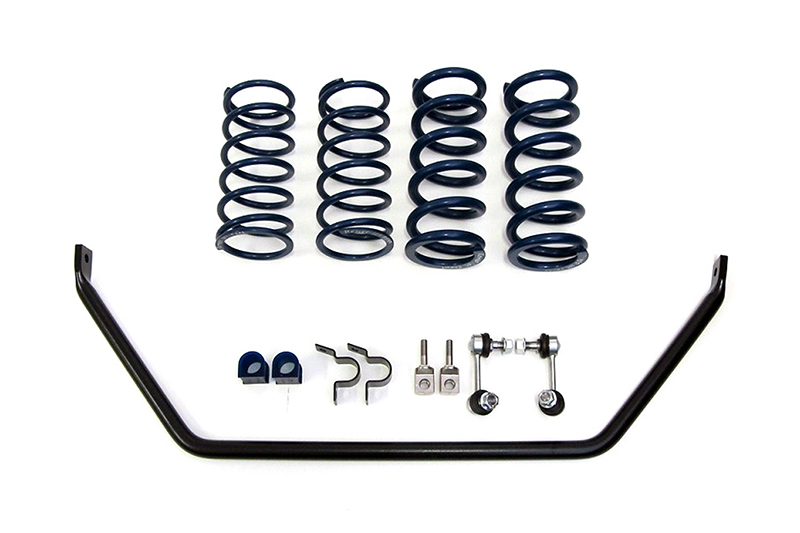

Alfaholics 101 Series Competition Handling Kit

Alfaholics 101 Series Competition Handling Kit

£550.00 GBP (ex vat)

SUS520R

Developed in house at Alfaholics this kit is the ultimate competition handling package for 101 Series cars.

We redesigned the standard weak anti-roll bar drop link system (known for its premature bush failure) to use the later 105 Series Spider ball jointed drop link system.

Spring rates have been optimised resulting in excellent weight transfer and handling whilst retaining a supple ride quality.

As used in our 1961 Giulietta SZ.

Rear Shock Absorber Lower Mounting Brackets - Giulietta

Rear Shock Absorber Lower Mounting Brackets – Giulietta

£80.00 GBP (ex vat)

GIU001

CNC machined mounting brackets to bolt to the rear axle spring pans on all 750/101 series for mounting the bottom of the shock absorber.

Original items quite often corroded and were a poor quality casting. These CNC machined billet replacements are a must for all performance application cars.

Aluminium Adjustable Race Dampers - 750 / 101 Series

Aluminium Adjustable Race Dampers – 750 / 101 Series

£575.00 GBP (ex vat)

RCE5014F/101

Ultra high-quality aluminium dampers for 750/101 Series cars. Months of rigorous bench dyno testing has been performed to optimise the valving range, bump and rebound characteristics.

They feature CNC machined end caps, enabling standard style fitment for each damper, with the added benefit of a spherical bearing in the lower rear mount for improved precision and durability.

The adjuster knob is CNC machined aluminium with positive ‘clicks’ offering excellent accuracy of adjustment. Designed with the adjuster positioned at the base of the damper to allow easy access. Top mounted adjusters would be difficult to reach.

Quick Steering Arms – 101 Giulietta

Quick Steering Arms – 101 Giulietta

£250.00 GBP (ex vat)

RCE5013/3

We manufactured these 101 series quick steering arms following the success of our 105 series version.

We altered the geometry resulting in faster ratio steering as well as modifying the
bend angle to zero bump-steer on lowered cars.

Tubular T45 Top Front Wishbone - 101 Giulietta

Tubular T45 Top Front Wishbone – 101 Giulietta

£1,495.00 GBP (ex vat)

RCE5001L

Manufactured from lightweight, ultra rigid T45 tubular steel & TIG welded.

Taking the opportunity to improve the design of the original part by fitting a race quality self-lubricating spherical bearing in place of the factory ball joint, this has far tighter tolerances to improve front wheel location and camber control.

The special machined pin for the upright also allows the roll centre and camber rate to be adjusted via shimming, rather like a knuckle riser on a GTA.

The arms come complete with high quality bronze inner bushes installed and reamed. These arm assemblies save a massive 1kg in unsprung front suspension weight!

The inner bush diameter is 19mm as per 101 series fitment.

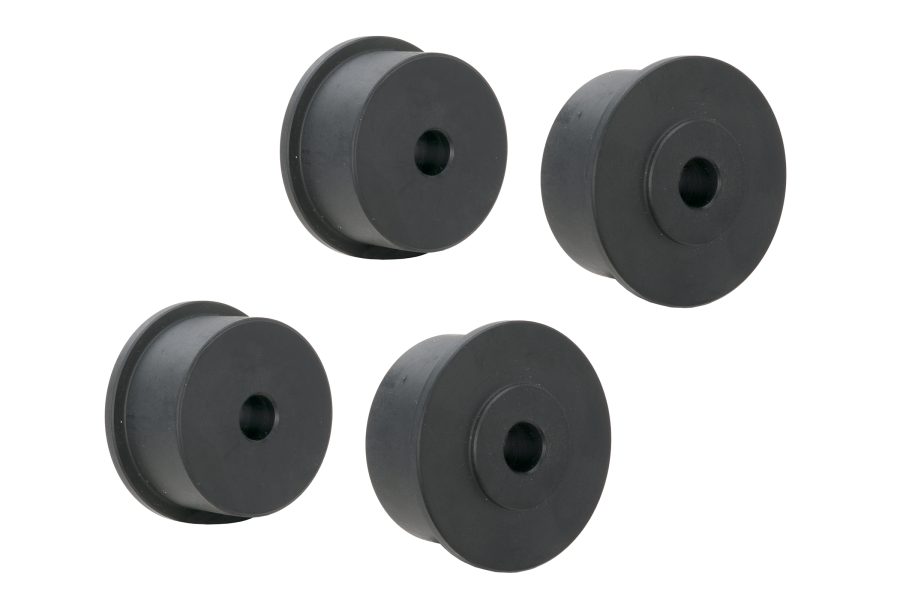

A-Arm End Bushings - 101 Series

A-Arm End Bushings – 101 Series

£60.00 GBP (ex vat)

RCE101/1

Manufactured using the same material and principle as the end bushes from our successful aluminium t-bar for 105 Series cars.

These bushes are CNC machined from billet IGIS material resulting in an ultra-smooth rotation action whilst allowing the car to benefit from absolutely no lateral axle movement for superior rear suspension geometry.

Alfaholics Tubular T45 Rear A-Arm - Giulietta

Alfaholics Tubular T45 Rear A-Arm – Giulietta

£550.00 GBP (ex vat)

RCE101/2

Manufactured from lightweight, ultra rigid T45 tubular steel & TIG welded.

We took the opportunity to improve the design of the original part by fitting a race quality self-lubricating spherical bearing in place of the factory ball joint, this has far tighter tolerances to improve axle location.

We have also incorporated our special nylon race A-Arm bushes to further improve axle to body location. The arm assembly saves a massive 1kg in unsprung rear axle weight!

Alfaholics Lightweight Giulietta T45 Trailing Arm

Alfaholics Lightweight Giulietta T45 Trailing Arm

£165.00 GBP (ex vat)

RCE101-1TA

Premium quality Alfaholics production. We have manufactured these arms from ultra strong T45 tube allowing us to reduce the wall thickness to reduce weight. The bush housings are CNC machined from billet EN14 to be chemically matched to the T45 tube. Use in conjunction with our special bushes listed below. Each arm with a pair of bushes constitutes a 0.75KG weight saving, thus 1.5KG per pair of arms fitted to the car. A superb reduction in unsprung weight!

101 Series Spring Spacer – Front & Rear Universal

101 Series Spring Spacer – Front & Rear Universal

£20.00 GBP (ex vat)

SUS516

Alfaholics production, CNC machined from billet aluminium. Universal fit from front and rear. Unique design with central spring location collar allows additional thin shims (available separately) to be installed with this spacer to achieve perfect ride height balance left to right. Designed to work in conjunction with standard spring rubber/metal bonded pads as shown in photo.

101 Series Spring Spacer Shim - 2mm

101 Series Spring Spacer Shim – 2mm

£3.50 GBP (ex vat)

GIU137

Alfaholics production, lazer cut from sheet aluminium. Designed to work in conjunction with our own spring spacers. Useful for final small shimming to adjust ride height left to right. Universal for front and rear fitment.

101 Series Spring Spacer Shim - 5mm

101 Series Spring Spacer Shim – 5mm

£8.50 GBP (ex vat)

GIU138

Alfaholics production, lazer cut from sheet aluminium. Designed to work in conjunction with our own spring spacers. Useful for final small shimming to adjust ride height left to right. Universal for front and rear fitment.

Alfaholics 101 Axle Strengthening Kit

Alfaholics 101 Axle Strengthening Kit

£30.00 GBP (ex vat)

SUS521

Kit of laser cut steel plates for strengthening the notoriously weak trailing arm brackets on 750/101 Axles.

This kit can be used to both completely replace rusted and buckled brackets by cutting away the original brackets and welding these in their place on the axle tubes, or alternatively can be used to brace existing brackets by welding them to the existing brackets.

The kit also includes a bracing strap to weld across the back of the legs thus bracing the legs in a similar way to that done by Alfa on the later 105 series axles.
