Clutches and clutch race parts for 105 Series Alfa Romeo

Alfaholics Full Race Clutch Kit - Hydraulic Actuation

Alfaholics Full Race Clutch Kit – Hydraulic Actuation

£1,295.00 GBP (ex vat)

RCE6001/A | RCE6001/A8

Extremely lightweight billet CNC machined flat flywheel manufactured from very high tensile EN24T steel. Weighs only 4.8 kgs including ring gear! AP Racing’s latest technology billet aluminium black anodised pressure plate weighing an amazing 1.2kgs, 4-paddle cera-metallic friction plate, premium quality round nose release bearing and bespoke Alfaholics manufactured billet machined aluminium release bearing carrier to adapt to fit directly to either Alfa Romeo hydraulic clutch fork and bell-housing or cable operated clutch – please specify when ordering.

We chose to use a single plate 4-paddle cera-metallic plate set up as it allows much more clutch pedal feel than a sintered friction material. Sintered materials cause the clutch pedal to feel like an on/off button, which is much too aggressive for historic tyres, as well as putting huge strains through the rest of the drivetrain and making the car difficult to drive in the wet! We have been using this cera-metallic paddle setup in all our competition cars for the past 15 years with 100% success and are much happier with its characteristics compared with the previous twin plate sintered setup used. We are even so happy with its driving characteristics that we have used it on high power trackday cars when the carscombine between road and competition use.

This kit comes complete and is ready to bolt directly to your Alfa Romeo. Flywheel available with 6 bolt crank fitment and 130T ring gear, or 8 bolt crank fitment with 110T ring gear, please choose.

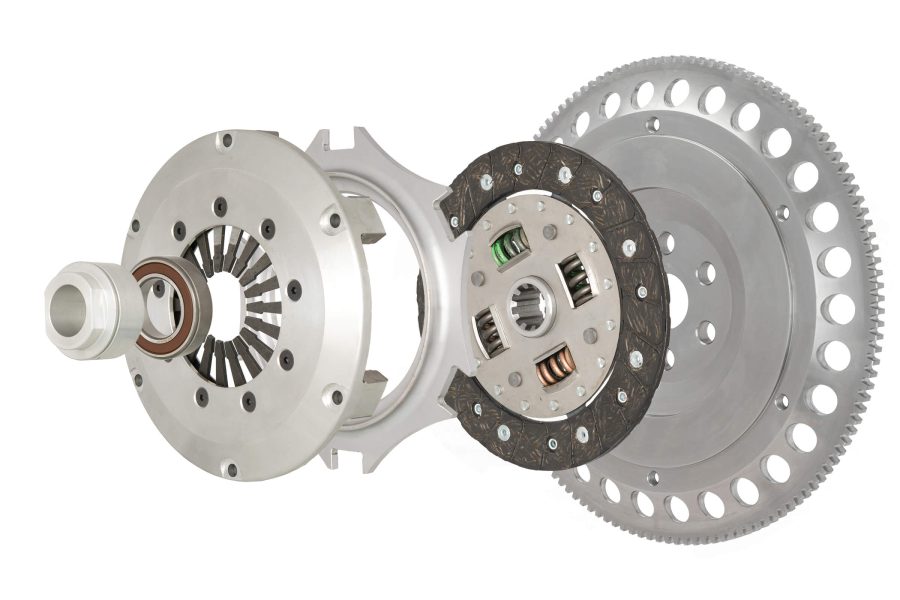

Alfaholics Fast Road/Rally Clutch Kit - Hydraulic Actuation

Alfaholics Fast Road/Rally Clutch Kit – Hydraulic Actuation

£1,195.00 GBP (ex vat)

RCE6001/B | RCE6001/B8

As used exclusively on all Alfaholics GTA-R builds, uses a special high performance organic friction material applied to a sprung drive plate centre. This kit combines the superb fast engine response only possible with a race style clutch, with the everyday driving practicalities of an OE fitment organic clutch. This kit has been developed specifically for our Alfa application for Alfaholics. We are thrilled with the results, it is the perfect balance for fast road/trackday cars and rally cars.

This kit comes complete and is ready to bolt directly to your Alfa Romeo. Flywheel available with 6 bolt crank fitment and 130T ring gear or 8 bolt crank fitment with 110T ring gear.

Alfaholics Full Race Clutch Kit – Cable Actuation

Alfaholics Full Race Clutch Kit – Cable Actuation

£1,395.00 GBP (ex vat)

RCE6001/CC6 | RCE6001/CC8

Extremely lightweight billet CNC machined flat flywheel manufactured from very high tensile EN24T steel. Weighs only 4.8 kgs including ring gear! AP Racing’s latest technology billet aluminium black anodised pressure plate weighing an amazing 1.2kgs, 4-paddle cera-metallic friction plate, premium quality round nose release bearing and bespoke Alfaholics manufactured billet machined aluminium release bearing carrier to adapt to fit directly to either Alfa Romeo hydraulic clutch fork and bell-housing or cable operated clutch – please specify when ordering.

We chose to use a single plate 4-paddle cera-metallic plate set up as it allows much more clutch pedal feel than a sintered friction material. Sintered materials cause the clutch pedal to feel like an on/off button, which is much too aggressive for historic tyres, as well as putting huge strains through the rest of the drivetrain and making the car difficult to drive in the wet! We have been using this cera-metallic paddle setup in all our competition cars for the past 15 years with 100% success and are much happier with its characteristics compared with the previous twin plate sintered setup used. We are even so happy with its driving characteristics that we have used it on high power trackday cars when the cars combine between road and competition use.

This kit comes complete and is ready to bolt directly to your Alfa Romeo. Flywheel available with 6 bolt crank fitment and 105T ring gear, or 8 bolt crank fitment with 105T ring gear and a special adaptor to fit the factory cable release bearing actuator.

Please note Mass Damper Flywheel upgrade only available in 8 Bolt 105 Tooth configuration.

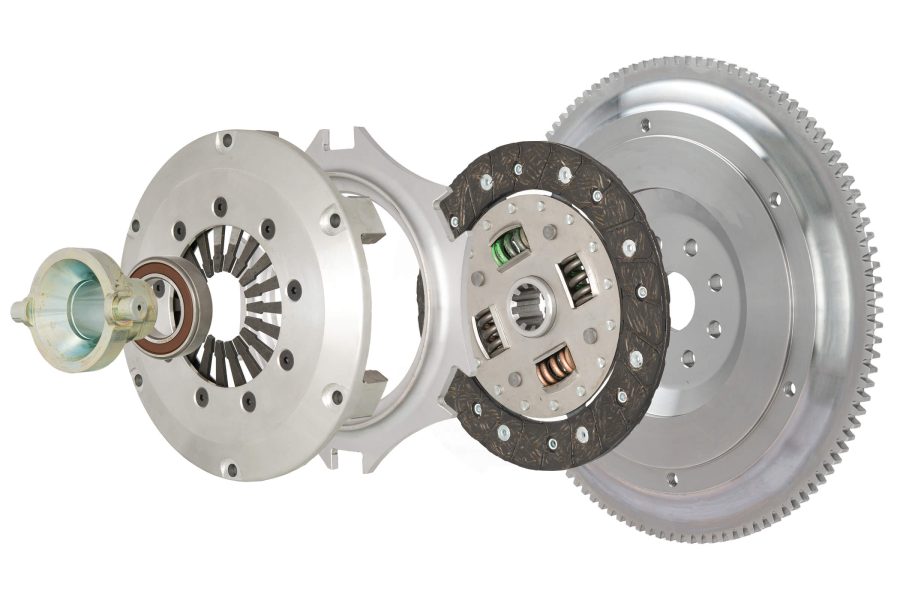

Alfaholics Fast Road/Rally Clutch Kit – Cable Actuation

Alfaholics Fast Road/Rally Clutch Kit – Cable Actuation

£1,295.00 GBP (ex vat)

RALCC/6B | RALCC/8B

As used exclusively on all Alfaholics GTA-R builds, uses a special high performance organic friction material applied to a sprung drive plate centre. This kit combines the superb fast engine response only possible with a race style clutch, with the everyday driving practicalities of an OE fitment organic clutch. This kit has been developed specifically for our Alfa application for Alfaholics. We are thrilled with the results, it is the perfect balance for fast road/trackday cars and rally cars.

This kit comes complete and is ready to bolt directly to your Alfa Romeo. Flywheel available with 6 bolt crank fitment and 105T ring gear or 8 bolt crank fitment with 105T ring gear and a special adaptor to fit the factory cable release bearing actuator.V

Please note Mass Damper Flywheel upgrade only available in 8 Bolt 105 Tooth configuration.

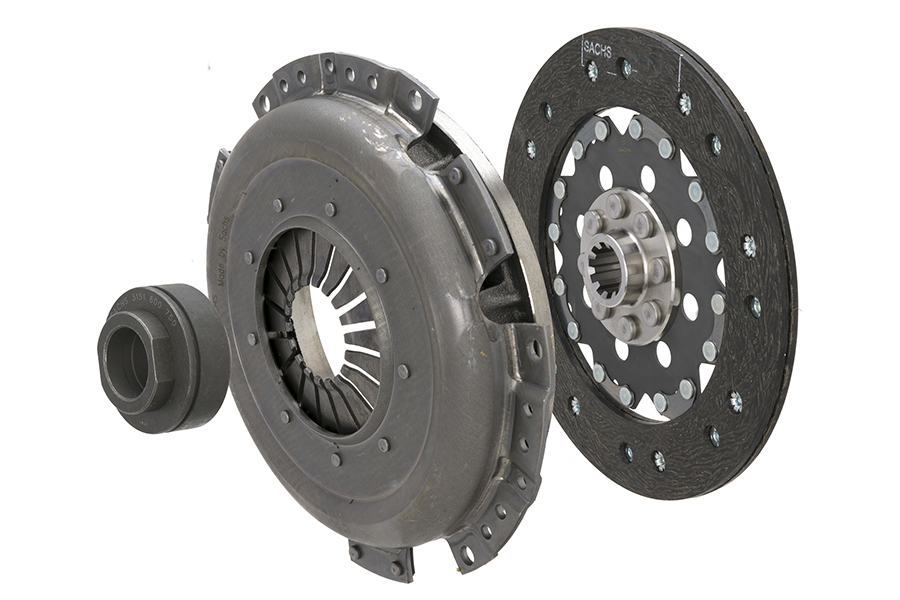

Sport Clutch Kit - Standard Sachs Clutch Fitment

Sport Clutch Kit – Standard Sachs Clutch Fitment

£425.00 GBP (ex vat)

RCE6004

Sachs Rally Sport Clutch kit for fitment with standard/lightweight flywheels, direct replacement for factory 105 clutch unit. Lightweight, unsprung friction plate with higher spec material with genuine F&S cover. Available for hydraulic clutch applications only. Please not the un-sprung nature of the friction plate makes this clutch more of a competition clutch than a sport road clutch, however both uses are possible.

Alfaholics Race Flat Flywheel

Alfaholics Race Flat Flywheel

£395.00 GBP (ex vat)

RCE6B/130T | RCE6B/105T | RCE8B/105T

CNC machined from billet high grade steel. These feature an integrated gear cut ring gear for starter motor to minimise rotational weight over a traditional pressed on ring gear. Supplied pre-balanced and ready to install with any 184mm race clutch kit. Flywheel weight is between 2.9 – 3.2kg dependant on which size version you are buying.

Alfaholics Mass Damper Flywheel

Alfaholics Mass Damper Flywheel

£1,295.00 GBP (ex vat)

RAT1 | RAT2

Alfaholics has designed and manufactured this mass damper flywheel to combat the inherent vibrations that occur in all high revving 4-cylinder engines. These vibration harmonics reduce bearing life and in worst case scenarios can cause catastrophic engine failure when a bearing either breaks up or picks up on the journal & seizes.

This damper flywheel works by having rollers that shuttle within pockets that cause a counteractive force to those that are damaging the crank, this counteractive force controls the amplitude of vibration. This ability to absorb rather than merely dampen the vibration is the key to their success.

We have been using these flywheels in our top specification race and track-day engines for several years and you can simply feel the difference through your feet driving cars fitted with these flywheels. On disassembly of engines during winter check overs, the bearing condition of these engines speaks for itself as to the benefits these flywheels bring to top end engine builds.

Available for 6-bolt crank with a 130 tooth ring gear to fit all 2000 as well as late 1600/1750 with hydraulic clutch application or 8-bolt crank (10mm bolt size) with a 105 tooth ring gear for all early 1300/1600 cable clutch applications.

Lightweight Steel 6 Bolt Flywheel

Lightweight Steel 6 Bolt Flywheel

£395.00 GBP (ex vat)

RCE6003/6/130

Allows engine to spin up and rev much more responsively, improving gearshift speeds.

Alfaholics production, CNC machined from solid billet EN24T high tensile steel. To fit 2000 crank with 6 bolt fitment and hydraulic clutch. Beautifully machined and drilled to save weight and let clutch dust out – only 6.1kgs.

Lightweight Steel 8 Bolt Flywheel

Lightweight Steel 8 Bolt Flywheel

£395.00 GBP (ex vat)

RCE6003/8/110

Allows engine to spin up and rev much more responsively, improving gearshift speeds.

Alfaholics production, CNC machined from solid billet EN24T high tensile steel. To fit 1300/1600/1750cc crank with 8 bolt fitment and hydraulic clutch. Beautifully machined and drilled to save weight and let clutch dust out – only 6.35kgs.

Lightweight Steel Cable Clutch Flywheel

Lightweight Steel Cable Clutch Flywheel

£395.00 GBP (ex vat)

RCE6003/6/105 | RCE6003/8/105

As above but for cable clutch fitment. Available for both 6 bolt or 8 bolt crank fitment. Correct cable bell-housing sized 105T ring gear fitted for 8T starter.

“Last summer my Giulia Super had clutch problems, it broke down three times. Now the car is fitted with Alfaholics Lightweight Steel Cable Clutch Flywheel and the F&S clutch assembly. The flywheel is beautifully machined and with snug fit to the crank and the clutch. Now, after a 1600km the first week after putting all things together I got a different car to drive!” Fredrik Lavesson.

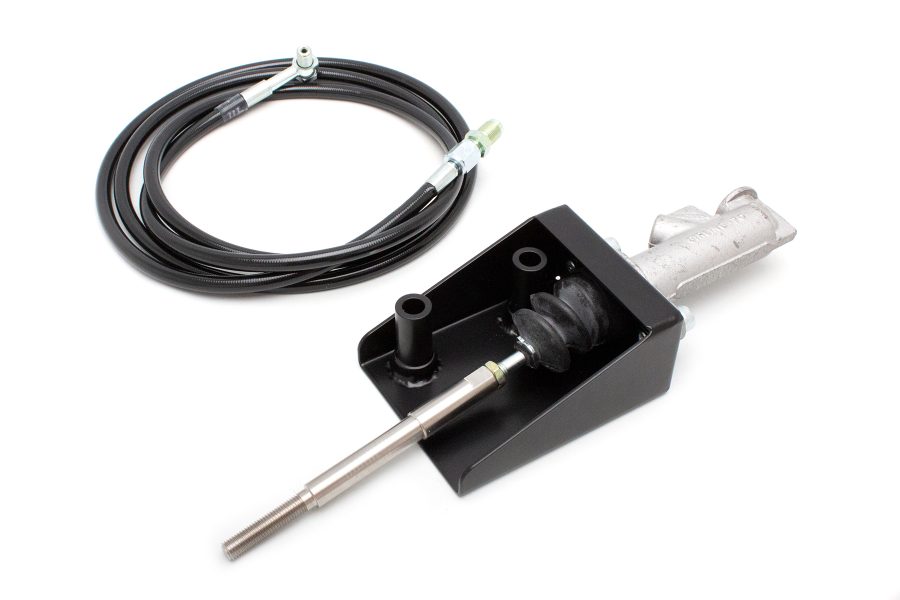

Alfaholics Race Clutch Master Cylinder Conversion Kit

Alfaholics Race Clutch Master Cylinder Conversion Kit

£225.00 GBP (ex vat)

RCE6005 | RCE6005/RHD

This kit is designed to convert RHD cars to fit a racing clutch master cylinder. It is perfectly suited to both road and circuit use.

Fits directly to original chassis points, uses original mounting bolts, requires no additional fabrication or drilling.

Can also be used to convert cable clutch cars to hydraulic set up.

This kit has several main advantages over the original Alfa set up:-

  1. Quality of master cylinder is superior to reproduction Alfa unit.
  2. Cost of replacement master cylinder nearly half that of reproduction Alfa unit.
  3. Master cylinders available locally wordwide.
  4. Master cylinders extremely simple to overhaul with cheap rebuild kits readily available.
  5. Kit includes braided clutch line which connects master cylinder directly to slave cylinder, thereby removing necessity for clumsy copper pipe and flexi hose set up. It features swivel ends for ease of fitment.
  6. FIA legal for appendix J racing.
  7. Different bore master cylinders can be bought – useful if converting to race twin plate clutch set up or experimenting with different pedal weight.

Kit includes beautifully made and TIG welded bracket, finished in top quality black powder coating, adapter rod to connect Alfa clutch pedal rod to Girling master cylinder, Girling master cylinder and top quality braided clutch line.

Braided Clutch Flexi Hose

Braided Clutch Flexi Hose

£45.00 GBP (ex vat)

RCE6006

Direct replacement for rubber hose from engine cross member to slave cylinder. Features swivel end for ease of fitment.
