Fuel race parts for 101/750 Alfa Romeo

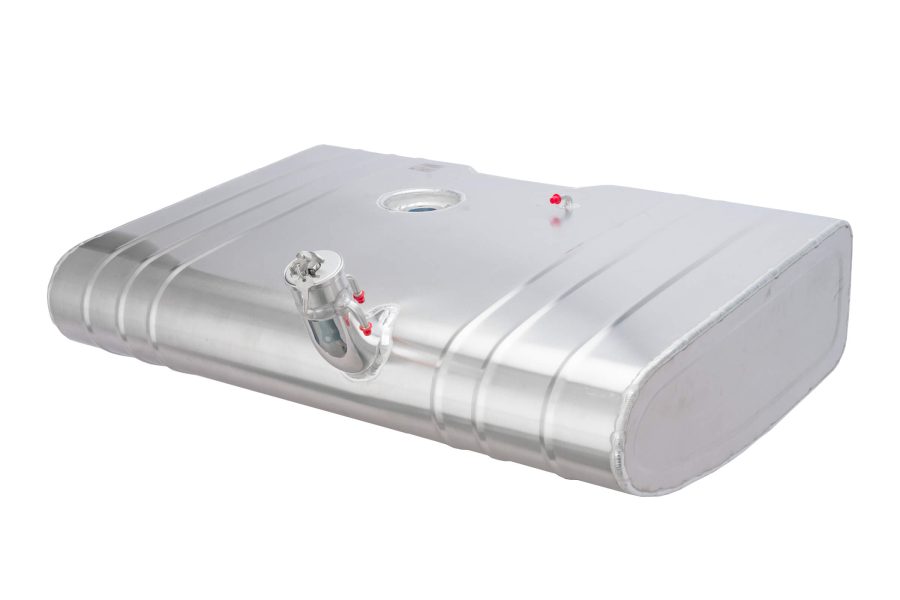

Alfaholics 101 Veloce Aluminium Foam Filled Fuel Tank

Alfaholics 101 Veloce Aluminium Foam Filled Fuel Tank

£995.00 GBP (ex vat)

RCE1015

The ultimate replacement fuel tank for 101 cars fitted with a Veloce fuel tank. Beautifully manufactured in aluminium to be ultra-lightweight and filled with FIA approved safety baffling foam. The external profile is an exact copy of an original Veloce fuel tank making it a direct replacement item, this allows the tank to be fitted to all 101 Series Sprint, SS/SZ Alfa Romeo using the original mounting straps. The neck features an aero cap and is situated in the original position inside the boot. Supplied complete with VDO dip pipe sender. A compatible fuel gauge will be required, conversion of original gauge to be compatible is also possible.

The aluminium tank weighs only 7.3kgs, a massive 5kg saving over the original version.

Alfaholics 101 Veloce FIA Approved Safety Cell

Alfaholics 101 Veloce FIA Approved Safety Cell

POA.

RCE1015/1

The ultimate race fuel tank to fit all 101 Series Alfa Romeos! Designed by Alfaholics and manufactured to FIA FT3-1999 Standard.

The external profile is an exact copy of an original Veloce fuel tank, but made from lightweight aluminium which serves as the casing for the FIA approved kevlar safety cell, filled with FIA specification foam.

This allows the tank to be fitted to all 101 Series Sprint, SS/SZ Alfa Romeo using the original mounting straps. The tank features twin internal pumps which are fed from a special ‘anti-surge’ trap door collector box, whilst internal cross over plumbing allows a single fuel outlet fitting.

The pumps are independently wired so that they can be separately switched for full redundancy, especially useful in endurance racing. The neck features an aero cap and is situated in the original position inside the boot. Just inside the neck port of the tank a special flap valve is installed to prevent fuel exiting the tank in the event of a severe rear impact. Supplied complete with VDO dip pipe sender.
