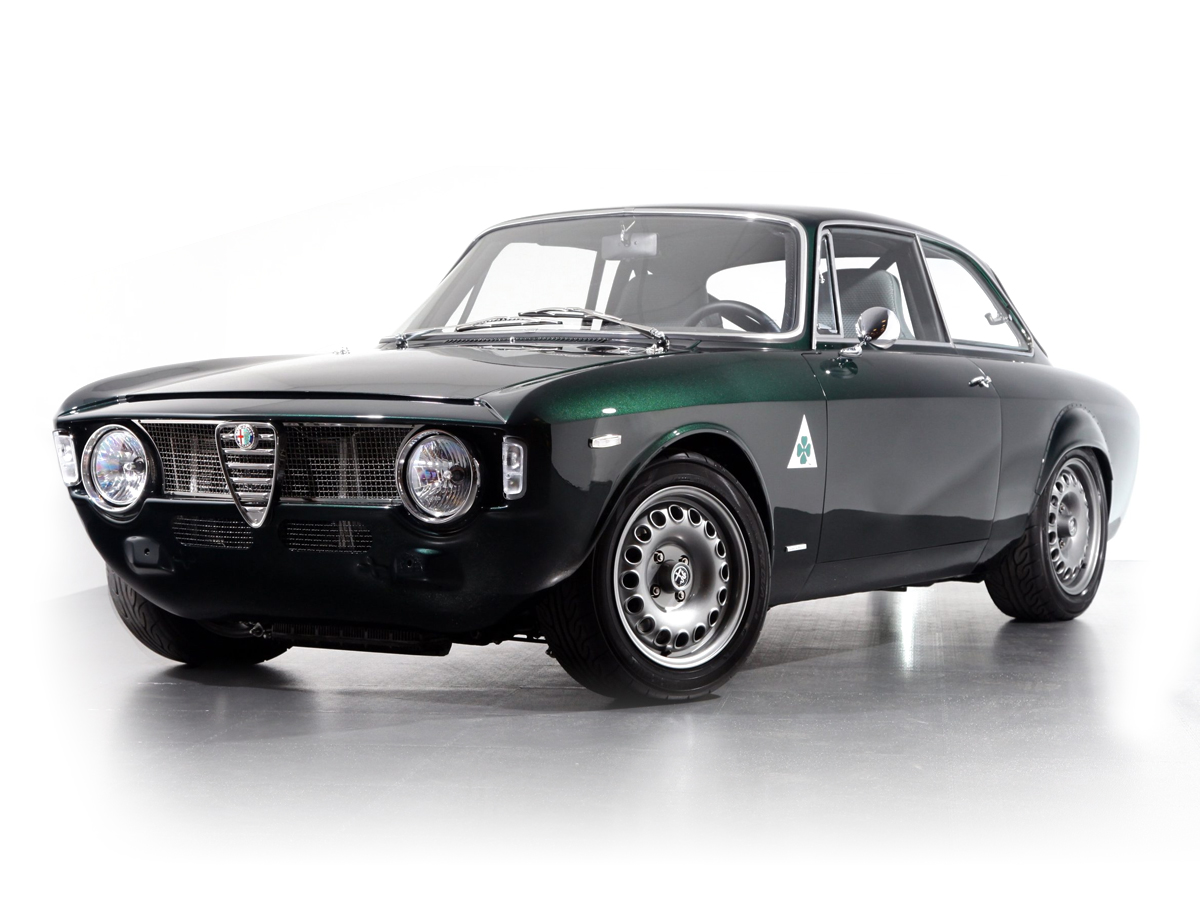

GTA-R 290 – 018

GTA-R 290

018

240bhp @ 7,000rpm

Alfa Romeo Twin Spark engine, aluminium block built with bespoke designed 94mm long stroke crankshaft, steel connecting rods, forged oversize pistons and race bearings. CNC ported aluminium cylinder head with race quality valve gear, DLC cam followers and crackle black finished billet aluminium cam cover.

Motec M1

Motec’s latest M1 ECU management system with 1000Hz processor speed, fully sequential fuel and ignition firing, wideband lambda control, 200Hz knock control and 120Mb datalogging.

Cooling

Bespoke aluminium fabricated cooling system with taper flow top tanks, motorsport grade water and oil cooler cores incorporating ECU controlled cooling fans.

gta_r_018_01

gta_r_018_02

gta_r_018_03

Gearbox

GTA close ratio gearbox with drilled and scalloped gears, rifle drilled layshaft, billet quick shift kit and redesigned synchro profiles for improved gear shift feel and speed. Superfinished internals to minimise friction.

gearbox_rebuild_service_01-02

gearbox_rebuild_service_03

Axle

Steel axle tubes with plate type limited slip differential, improved pinion bearing design, super finished final drive gear set, rifle drilled billet halfshafts.

limited_slip_differential_02

halfshaft-2

gta_r_018_04

GTA-R 290 Suspension

Fully optimised geometry together with minimal unsprung weight to deliver the ultimate driving experience whilst retaining the legendary 105 series character and feel.

full-race-2-14-small-spring-kit-2048x1365

Lightweight spring conversion with adjustable ride height

2 1/4″ spring conversion with adjustable platforms front and rear saves a huge 12kg whilst allowing fine ride height adjustment for the perfect chassis setup.

Titanium upper front wishbones

Upper wishbones fabricated from tubular titanium resulting in a 6kg weight reduction.

alfaholics-titanium-tubular-top-wishbone-kit_01

t-bar_01

Aluminium T-bar

Aluminium T-bar features redesigned chassis mount bushes and spherical bearing axle location for improved traction and further weight saving.

Double adjustable aluminium gas dampers

Developed by Alfaholics at the Nurburgring, these aluminium bodied double adjustable dampers provide exceptional body control and ride refinement with separate bump and rebound adjustment for the perfect setup on both road and track.

trailing_arm_cropped_02

gta_r_018_05

6-pot-superleggera-brake-kit

Brakes

Billet aerospace grade aluminium calipers. 6 piston front with 300mm vented rotors, 2 piston rear with 267mm solid rotors.

Aluminium dual circuit non-assisted pedal box for maximum pedal feel and adjustable bias front to rear.

gta_r_018_06

Interior

Bespoke leather interior hand crafted to suit owner’s desires for a track focused car. Fully insulated using Dynamat for optimum heat protection and noise damping.

Leather trimmed ‘Recaro Race’ seats with custom weave

FIA motorsport seats with outstanding comfort and support, trimmed in the finest quality Italian leather and woven to evoke the timeless style of the 1300 GTA “basket weave”.

Full Track Rollcage

Lightweight 12-point roll cage for greatly increased rigidity and safety, features harness and door bars. Trimmed in Alcantara and “basketball” stitched by hand.

Air-conditioning

Highly efficient modern air-conditioning system integrated neatly behind the dashboard delivering icy cold air in even the hottest climates.

gta_r_018_07

gta_r_018_08

air_vent

Dashboard

Finished in high quality crackle black and Alcantara for unparalleled aesthetics and anti glare properties. Elegant aluminium air vents bespoke designed to complement the original Alfa Romeo instruments.

Carpets

Tailored in the finest English Wilton wool and bound in leather for the ultimate in luxury.

lhd_floor_pedal_set_01

Controls

Momo Prototipo steering wheel, as fitted in period to GTA Corsas by Autodelta.

Lightweight adjustable pedals machined from billet aerospace aluminium.

Billet aluminium door openers & winder handles

Plumbed in FIA race specification fire extinguisher system.

gta_r_018_09

gta_r_018_10

gta_r_018_11

Exterior

Wheels and tyres

Alfaholics designed lightweight alloy 7×15″ wheels finished in GTA-R smoke grey, and fitted with Yokohama 195/55 tyres and retained with titanium wheel nuts and studs.

Glass

Lightweight heated windscreen, lightweight 4mm side glass and polycarbonate rear screen save an impressive 11kg.

×
