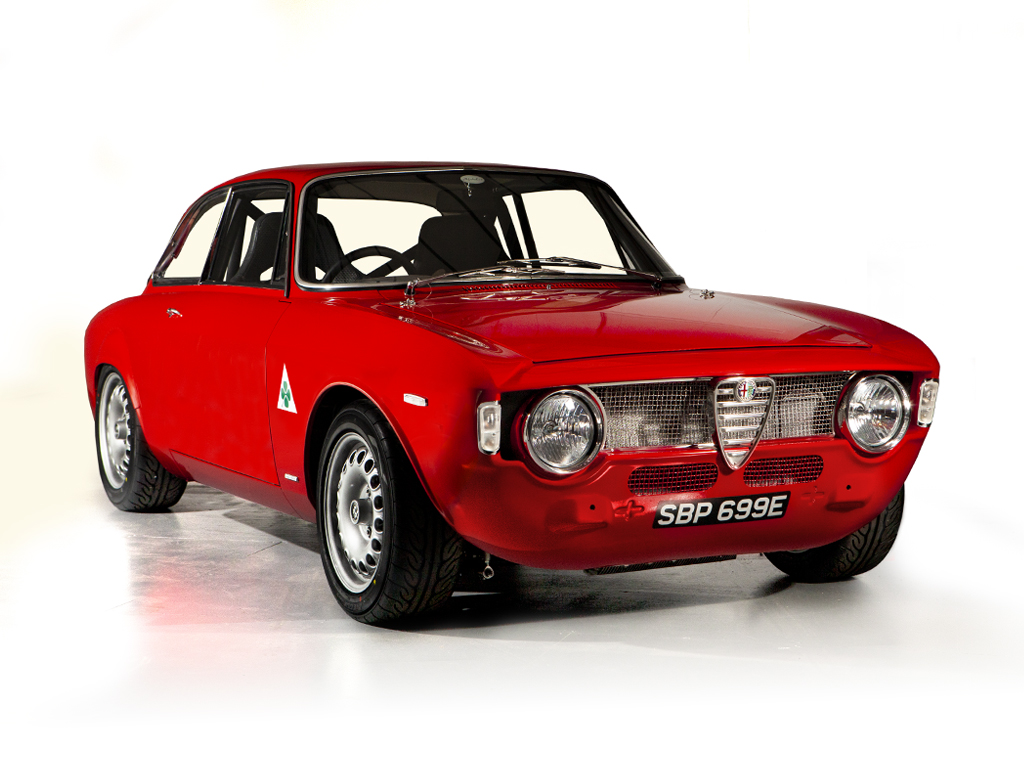

GTA-R – 003

GTA-R

003 (UK)

Completed!

With further engine capacity increases achieved during the project with our new 94mm long stroke crank, we have smashed our original target of 270bhp/tonne. As a result, Alfaholics is very proud to present the Alfaholics GTA-R 290 – the ultimate Alfa Romeo with 290bhp/tonne!

…as capable lapping the Nurburgring in under 8 minutes as cruising the streets of Monaco!

Alfaholics GTA-R 290 Specification

Body

  • Monocoque steel body, fully seam welded
  • Carbonfibre doors, bonnet & boot
  • Kerb weight of 830kg

Drivetrain

  • Alfa Romeo Twin Spark Engine – 240bhp @ 7,000rpm
  • Motec engine management system with electronic fuel injection
  • GTA lightweight close ratio 5 speed gearbox
  • Copper-sintered plate limited slip differential
  • Lightweight propshaft and rifle drilled halfshafts
  • Stainless steel sports exhaust
  • Aluminium high performance radiator & oil cooler

Suspension

  • Titanium top front wishbones
  • Geometry improvement kit
  • Double adjustable aluminium gas shock absorbers
  • Lightweight spring conversion with adjustable ride height
  • Titanium fasteners
  • Aluminium T-bar and lightweight trailing arms

Brakes

  • Superleggera billet aluminium 6-pot front brake kit with 300mm vented discs
  • Superleggera billet aluminium 2-pot rear brake kit with 267mm discs
  • Dual circuit bias adjustable aluminium pedal box

Interior

  • Leather trimmed Recaro seats with inflatable lumbar support
  • Alcantara and leather trimmed dashboard
  • Wilton Wool carpets
  • Dynamat sound and heat insulation
  • 12-point T45 roll-cage trimmed in leather
  • Billet aluminium pedals
  • Momo Prototipo steering wheel

Miscellaneous

  • Speed sensitive, adjustable load electric power steering
  • Heated, lightweight windscreen
  • Lightweight rear screen and side glass
  • 55 litre foam-filled aluminium fuel tank
  • 7×15” GTA Superleggera alloy wheels
  • Yokohama Neova AD08R 195/55 R15 tyres

Options

  • Air-conditioning
  • Aluminium body conversion
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003
Completed! - GTA-R – 003

Build – Stage 6

Since the concept of our GTA-R 270 build is to produce the very highest quality road & track day car, rather than a road legal racer, we would not simply reduce weight by omitting the interior trim. We have gone to great lengths to produce an interior to the very highest standards.

  • First of all, we installed our Alfaholics Dynamat Superlite kit for excellent interior heat and sound insulation – this dramatically reduces NVH and cabin temperatures.
  • We commissioned the very finest quality smooth grain Italian leather to be woven to our specification. This has been used in strategic areas of the interior to add extra “depth” to the leather work and of course harks back to the basket weave material used by Alfa in the 1960s on the 1300 GTA and reintroduced on their recent supercar, the 8C Competizione.
  • The new Alfaholics rollcage has been wrapped in leather and features “baseball” style hand-stitching.
  • We have trimmed the Recaro race seats in a new design, similar to the 8C Competizione and featuring inflatable lumbar support for added driving comfort.
  • We have lightened our standard GTA rear seat and trimmed it to match the front seats. Although not useable of course (!), it does add to the feel of the interior and serves to provide additional sound insulation.
  • Then we have bespoke tailored the carpets using top quality Wilton Wool, with the gaiters and edge binding finished in the matching leather.
  • Our billet aluminium pedal set not only looks fantastic but is also height and angle adjustable, allowing for perfect driver ergonomics.
  • The side panels have been trimmed in the matching Italian leather with feature weave material in the top section. These panels are finished off with our GTA closing straps and our new billet aluminium GTA inner door handles and window winders.
Build - Stage 6 - GTA-R – 003
Build - Stage 6 - GTA-R – 003
Build - Stage 6 - GTA-R – 003
Build - Stage 6 - GTA-R – 003

Build – Stage 5

Suspension built with our Alfaholics GTA-R Suspension Package, comprising:-

  • Alfaholics race front anti-roll bar kit with rose jointed anti-roll bar drop links
  • Alfaholics lightweight wishbones
  • Alfaholics billet titanium geometry kit
  • Alfaholics rose jointed track rod kit
  • Alfaholics adjustable ride height 2 1/4″ front spring kit
  • Alfaholics tubular titanium adjustable castor/camber arms
  • Alfaholics performance suspension bush kit
  • Alfaholics billet aluminium quick steering arms
  • Alfaholics double adjustable (2-way) gas aluminium damper set
  • Alfaholics titanium front shock absorber mounting pins
  • Alfaholics extreme lightweight trailing arms
  • Alfaholics aluminium uniball race T-bar

Brakes built with our Alfaholics GTA-R Superleggera Brake Package, comprising:-

  • Alfaholics Superleggera 6-pot front brake kit with 300mm vented discs
  • Alfaholics Superleggera rear brake calipers with sport rear discs
  • Alfaholics dual circuilt bias adjustable brake pedal box with billet aluminium pedal set
  • Alfaholics carbon braided flexi hoses
  • Ferodo DS brake pads
  • Stainless steel hardlines through out the chassis and rear axle

Rear axle built with the following parts:-

  • Alfaholics race LSD unit
  • 4.3 CWP
  • Montreal diff sump for increase oil capacity and cooling
  • Alfaholics lightweight halfshafts

Interior Preparation

Interior preparation completed ready for finial trimming. Floors, tunnel, front bulkhead and rear seat have had our Dynamat Superlite sound insulation installed prior to installing Dynaliner heat insulation.

These insulation products are the very best on the market and available as a preset kit of materials for your Alfa exclusively through Alfaholics for the Alfa Romeo market.  The inner side panels have been made from ultra thin marine ply, saving a whopping 3KG over original hardboard panels.

We will be fitting our Alfaholics GTA rear seat to give the interior a high quality, luxury look and feel – the aim for this project is to build an extremely high quality road/trackday car to be as light as possible, not simply to make a racing car with numberplates!

We have lightened the rear frame and modified it to fit around our rollcage.

Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003
Build - Stage 5 - GTA-R – 003

Build – Stage 4

Bespoke Alfaholics GTA-R specific aluminium radiator & integrated oil cooler system designed and manufactured. It features a tapered top tank to help flow the hot inlet water more evenly across the matrix to improve the cooling efficiency of the radiator. We have also positioned the radiator much closer to the front grille to increase air flow to it whilst simultaneously reducing the size of the air gaps around it thus forcing a greater volume of air through the core. This has also given us the space to fit the cooling fan on the back of the core to further increase the cooling efficiency. The oil cooler, being built into the side of the radiator has resulted in a bigger unit to give greater cooling capacity to the oil system to match the car’s greatly increased engine power.

The boot has been built up with our new lightweight 1/2 tank which houses the injection pump, filter and pressure regulator being fed by a custom version of our 55 litre race foam filled aluminium fuel tank with injection return line and built in swirl pot.

Build - Stage 4 - GTA-R – 003
Build - Stage 4 - GTA-R – 003
Build - Stage 4 - GTA-R – 003
Build - Stage 4 - GTA-R – 003

Build – Stage 3

We have made a bespoke race quality wiring loom in the car using lightweight thin wall race cable, modern blade fuseboxes and relays for all the major functions. This is a very time consuming job, taking a full week to assemble, but the rewards will pay off when the car is up and running without the common original Alfa fuse box issues. At this stage the loom is partially assembled and laid in position to optimise the routing, before it will be run inside protective convoluted tubing.

We have custom made the brake lines using stainless steel brake hardlines throughout the car. Materials for this have been sourced from the same supplier as McLaren & Lola; not only will this ensure the maximum of life span, but it also will result in the very best brake pedal feel possible. The flexible lines to the uprights are our latest design featuring full stainless steel fittings & carbon clear coat.

The front suspension corners have been built up using our extreme lightweight wishbones, lightened hubs, and our new Superleggera 6-pot brake kit.

Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003
Build - Stage 3 - GTA-R – 003

Build – Stage 2

Fully painted shell with bonnet, boot, doors and rollcage installed weighs a mere 269KG. Preparation work completed includes:-

  • Shell media blasted bare
  • Shell fully seam welded
  • New bespoke design 2 piece T45 lightweight bolt-in cage made
  • Chassis legs stiffened
  • Bonnet/boot hinges drilled
  • Alfaholics carbon-fibre bonnet, boot & doors installed
  • External aero fuel filler installed
  • Full wet flat paint finish throughout
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003
Build - Stage 2 - GTA-R – 003

Build – Stage 1

Car stripped to a bare shell and carbon fibre panels fitted, prior to the new roll cage being made. The doors will retain the original 1/4 light frames and the window winder mechanisms for optimum usability.

Build - Stage 1 - GTA-R – 003
Build - Stage 1 - GTA-R – 003

The Project

Our original target at the outset of the project was to achieve 270bhp/tonne in a GTA-R.

(In reality, by the end of the project we had smashed this target by achieving greater power from the engine with a new 94mm long stroke crank and 87mm bore which resulted in 2300cc & 240bhp and thus the car achieving 290bhp/tonne).

The basis for this project is a full rebuild of GTA-R (003) using all the latest Alfaholics tricks and developments.

Since 2011, when the latest version of our top spec Twin Spark engine was installed, the specification of 003 car has remained untouched. With 216bhp & 180 lb/ft torque and weighing just 895kg, the car possessed an excellent power to weight ratio of over 240bhp/tonne! Recent Spa & Nurburgring track days have shown the car to be more than a match for most BMW M3s and Porsche 911s, proving just how good the overall package is. At Spa, that means a lap time of 3:02 and the ability to lap the Nurburgring in 8:15.70 bridge to gantry. We installed HD video cameras in both GTA-R 003 and Ti Super-R 011 to demonstrate just how capable the cars are – see the Alfaholics TV channel on YouTube!

Now we want to make the car even faster!  Over the past couple of years, we have developed a number of new products, in particular a suite of carbon fibre panels – boot, bonnet and doors. It seemed that the best way to implement all these upgrades would be a full rebuild, so here goes…!

In order to achieve the target power to weight ratio, the main focus of the rebuild will be attention to weight saving – we are looking to shed 80kg from a number of areas, including body, unsprung & rotational components. We will not however compromise on the quality and detail of the interior, so the leather, alcantara and Wilton wool carpets will remain. In addition, we will be making a few engine tweaks which should liberate a few extra bhp to bring the maximum power up to 220bhp. With 270bhp/tonne, perhaps a Nurburgring lap time of 7m 59secs in on the cards!

The Project - GTA-R – 003

2011-2013

New for 2011 was the latest version of our infamous Twin Spark engine, now with modified piston and rod geometry. New power figure 216BHP with 180 lb/ft torque, giving the car a power to weight ratio of 240BHP/tonne! Very little else changed on the car during this period, proving just how good the package is. Spa and Nurburgring trackdays during these 3 years showed the car was more than a match for any BMW M3 CSL or Porsche 911, including GT3! New HD video cameras installed in both Max’s and Andrew’s cars allowed us to show real time just how fast we had made the cars.

At Spa a laptime of 3:02.00 was set and at the Nurburgring a laptime of 8:15.70 was achieved bridge to gantry, truly impressive lap times!

However, come mid 2013 we had now developed a package or carbonfibre boot, bonnet & doors as well as many other tweaks not installed on Max’s car. Thus as quick as the car already was at this point, there was now a new range of possibilities with regard to weight reduction to improve track performance and a rebuild is required… watch this space!

2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003
2011-2013 - GTA-R – 003

Nurburgring Photos 2009-2010

Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003
Nurburgring Photos 2009-2010 - GTA-R – 003

2009-2010

Development continued gathering pace in 2009, now with the increased grip from the new 15″ wheel/tyre package, we found ourselves wanting more power again; so we developed yet another version of our Twinspark engine, now with 207BHP! At this point we found the Bilstein dampers starting to struggle to provide sufficient damping for the suspension and thus we developed our own adjustable gas dampers. Not only did we do this to improve the on track handling of the car, but also to allow the softest positions to give us vastly improved road driving ride quality for the journey to and from the Ring. Once the damping was perfected, we moved back to the LSD and dramatically changed the friction material and ramp settings of the unit to give better traction under power and also more manouverability and precision of positioning under braking; yet again the car was transformed! Next we made a production of the 1967 Homologation GTA rear arches, this enabled us to widen the track of the rear of the car to give us more stability.

Alfaholics Trackday Photos 2007-2008

Alfaholics Trackday Photos 2007-2008 - GTA-R – 003
Alfaholics Trackday Photos 2007-2008 - GTA-R – 003
Alfaholics Trackday Photos 2007-2008 - GTA-R – 003
Alfaholics Trackday Photos 2007-2008 - GTA-R – 003

Nurburgring Photos 2007-2008

Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003
Nurburgring Photos 2007-2008 - GTA-R – 003

2007-2008

The evolution of my car really took pace over these 2 years, a new 198BHP Twinspark engine was installed, we fitted a proper performance clutch system and we started the development of our own LSD to get better traction characteristics.

I started to struggle to buy good 14″ tyres, so we designed and manufactured a new 15″ version of our 7″ width GTA wheel to ensure that we could fit the very best possible performance road tyres we could – no point having all that power if we couldn’t apply it properly to the tarmac! Once the 15″ wheel came it released a lot of extra space in the area of the front hub. Not only did this allow us to develop bigger 6-pot brake calipers with larger 300mm discs, but it also gave us more room inside the wheel to modify the suspension and steering pick up points to optimise the front suspension geometry – our Alfaholics Front Geometry Kit was born, and quickly became a best seller! Back out at the Ring, the car was markedly faster, now able to compete with Porsche 996 Carreras and E46 M3s.

Alfaholics Castle Coombe Trackday 2005-2006

Alfaholics Castle Coombe Trackday 2005-2006 - GTA-R – 003
Alfaholics Castle Coombe Trackday 2005-2006 - GTA-R – 003
Alfaholics Castle Coombe Trackday 2005-2006 - GTA-R – 003
Alfaholics Castle Coombe Trackday 2005-2006 - GTA-R – 003

Nurburgring 2005-2006

Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003
Nurburgring 2005-2006 - GTA-R – 003

2005-2006

The first 2 years of use of my car were a blast, I covered 13,000 miles, most of them flat out round tracks and across Europe. The specification of the car started to evolve even in these first 2 years as the car was used continually harder and harder on track. The starting point in 2005 was a 175BHP Twinspark engine built with what were commonly available replacement parts, our trackday blue handling kit and lightweight brembo front calipers. By 2006 the car already needed bigger brakes and our Alfaholics 4-pot brake kit was developed. The car got its first magazine coverage with RetroCars in 2005, followed by a Classic Cars magazine article in 2006.

The car also got its first Nurburgring outings in these first 2 years. When I planned the first trip, I thought “this will be a nice place to go with the car”, but on arrival it is hard not to get absorbed into the whole scene and culture; it did not take long to come to realise that unknowingly at the time, this was what I had built the car for; the Ring was my new found love! It became apparent pretty quickly though that with the huge gradients I would need more power than the current engine had to be able to keep up with the Porsches and BMWs and that there was still plenty of chassis and brake development to come. The theme over the future years would be to refine the car into the ultimate Ring weapon, but not only to make the car super fast round the track, it was also critical that the car should be perfectly comfortable and useable to drive the 1000 miles round trip to and from the Ring. This sparked the evolution of what would ultimately become the Alfaholics GTA-R!

Original Build – Completed 2005

Original Build - Completed 2005 - GTA-R – 003

Donor Car – a 1 owner, 200,000 mile 1967 1300 GT Junior

Original Build - Completed 2005 - GTA-R – 003

After 2 years from scratch and 10 months after the painted shell returned back to the Alfaholics workshops the car is finished!

Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
Original Build - Completed 2005 - GTA-R – 003
