Alfaholics Road Rally Cams

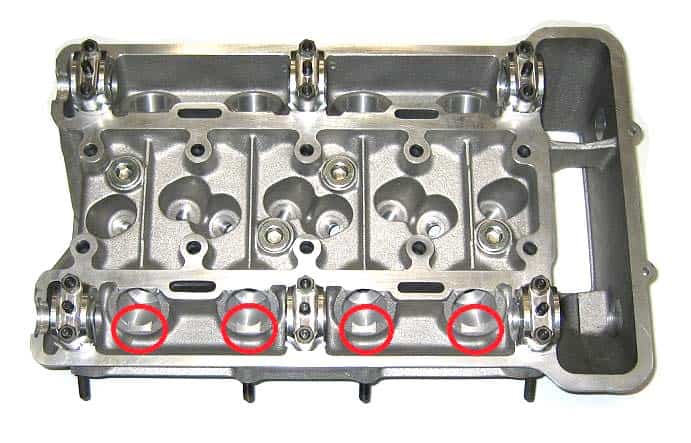

You will need to modify the cam follower bores to allow the camshaft to turn, like this-
We strongly recommend using our premium quality Alfaholics production cam followers to avoid risks of wear.
These cams must be used in conjunction with our race springs to ensure correct spring pressures and to avoid coil binding at high lift.

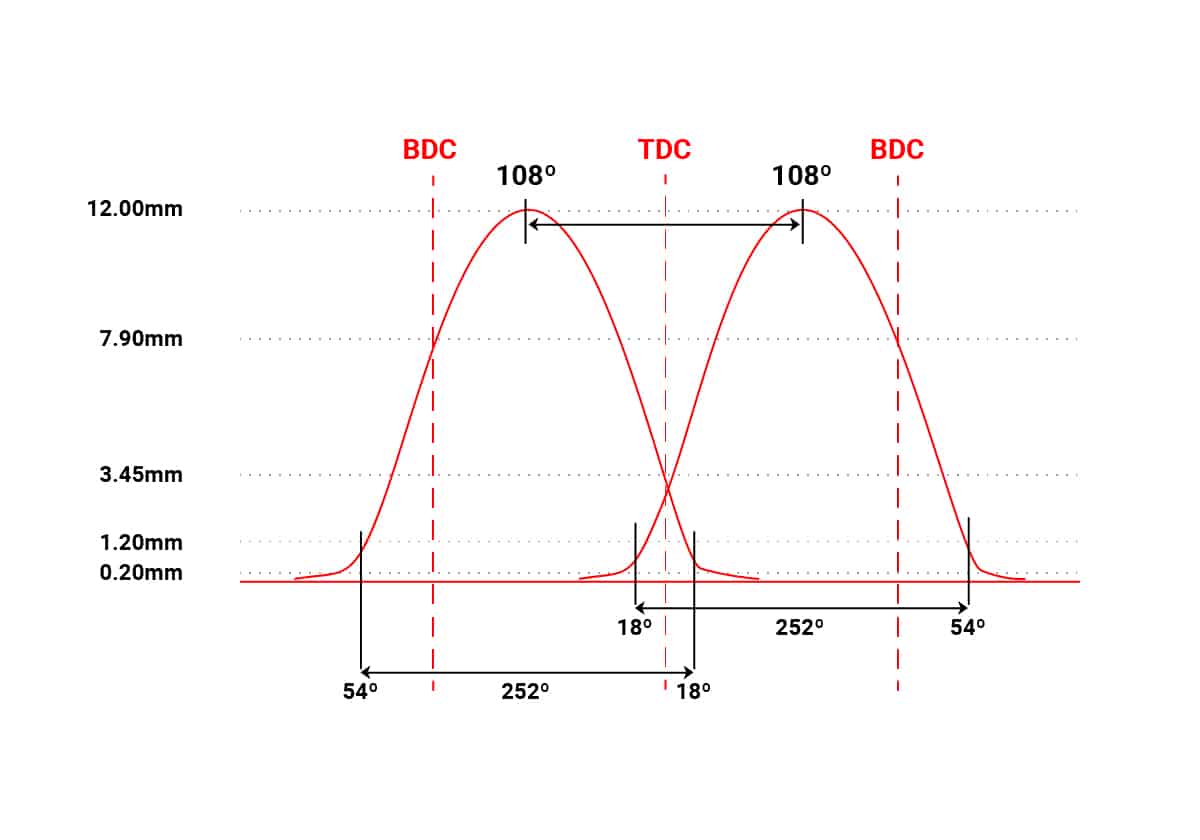

P08 (part number 1030242 marked on the cam) is the exhaust cam. Set clearance to 0.24mm
Set timing to 3.25mm lift at TDC (top dead centre) or 108 degrees for maximum lift.

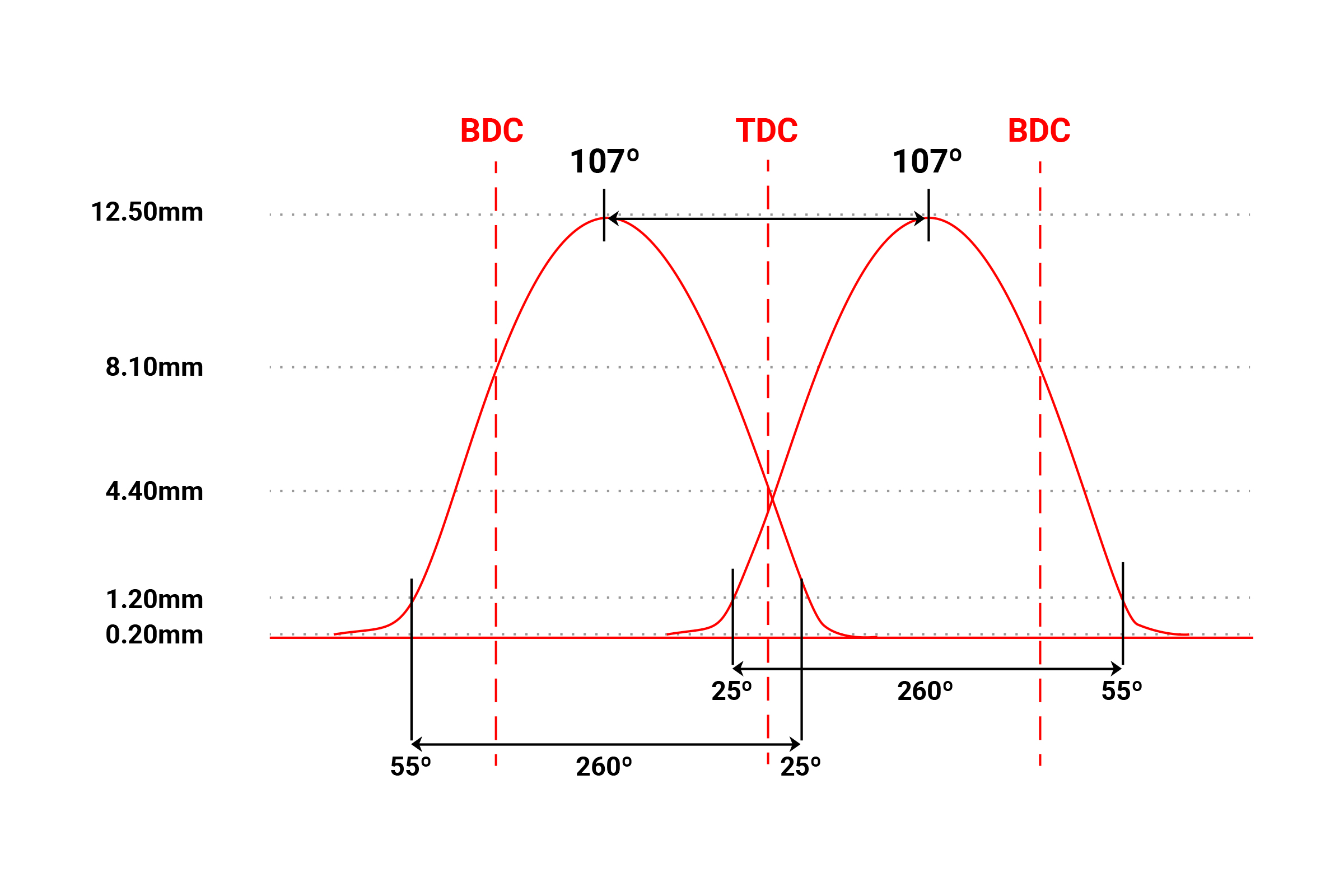

P09 (part number 1030243 marked on the cam) is the inlet cam. Set clearance to 0.22mm
Set timing to 3.9mm lift at TDC (top dead centre) or 107 degrees for maximum lift.
